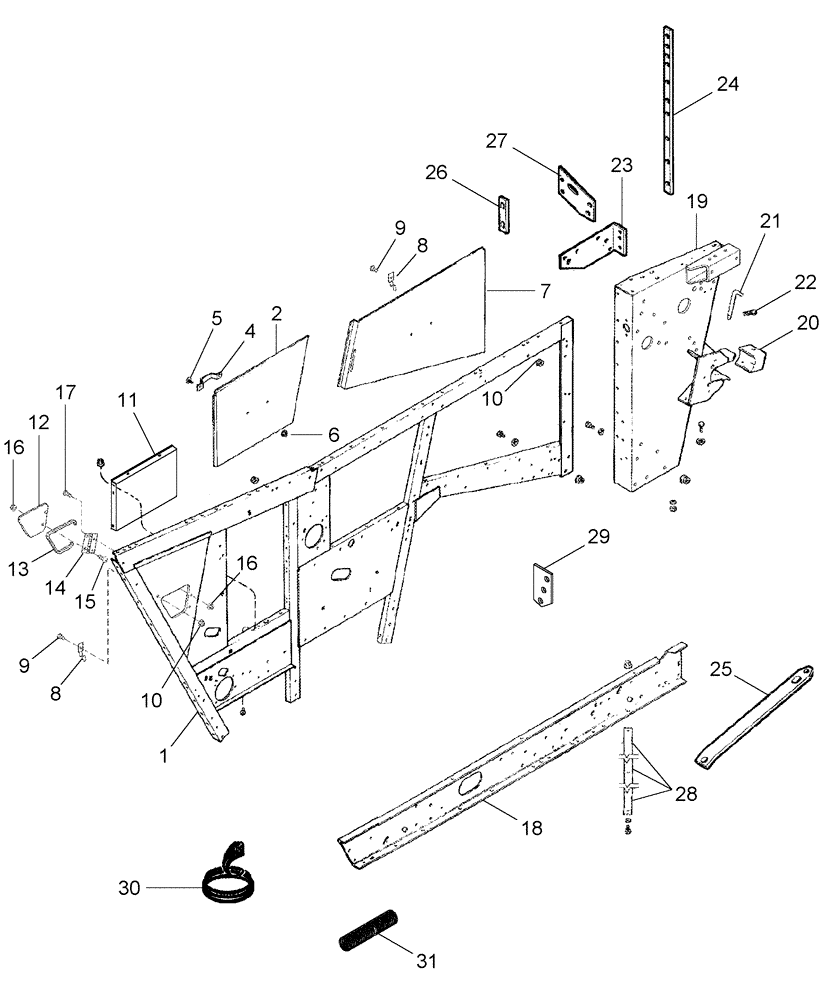

Запчасти Case IH 2377 (09H-03) - SEPARATOR - DOORS - LEFT HAND (12) - CHASSIS

1

443249A1

FRAME

Left Hand

1шт.

2

193353C1

DOOR

Left Hand Side

1шт.

4

160638C2

HANDLE

2шт.

5

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

7

193223C2

DOOR

LH Front

1шт.

8

167800C1

CLIP

11шт.

9

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

11шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

11шт.

11

87301105

DOOR

1шт.

387815A1

DOOR

Separator, Inc. REF 12 - 16

1шт.

12

383558A1

DOOR

1шт.

13

383559A1

SEAL

1шт.

14

397586A1

HINGE

1шт.

15

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

17

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2; 8

2шт.

18

359826A2

SILL

Main, Left Hand

1шт.

19

393184A1

POST

Left Hand Front, Inc. Decal 144385A1, Serial Range: -HAJ0295001

1шт.

19

87383812

POST

POST Left Hand Front, Inc. Decal 144385A1, Start Serial: HAJ0295001

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

20шт.

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

10шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

11шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

13шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5/8; 8

13шт.

20

1989327C3

RETAINER

12 Row Ready

1шт.

21

418694A1

ROD,25.4mm OD

1шт.

22

1978738C1

HAIR PIN COTTER

3/16"

1шт.

23

236370A2

PLATE

Left Hand

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

6шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

131-946

FLANGE NUT,Flg, 1/2"-13, G8

1/2; 8

6шт.

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

231-5146

FLANGE NUT,3/8"-16

(5)

2шт.

24

236933A1

PLATE

1шт.

25

236726A1

PLATE

Left Hand

1шт.

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

1шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5/8; 8

2шт.

26

239001A1

PLATE

1шт.

27

238987A1

PLATE

Left Hand Front

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

5/8 x 1-1/4; 8

9шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5/8; 8

9шт.

28

186018C1

STRAP

1шт.

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

3шт.

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

1/2

3шт.

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

29

236510A1

PLATE

2шт.

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

3шт.

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

5шт.

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

5/8; 8

5шт.

30

188062C2

DOOR SEAL,12.7mm H x 25.4mm W x 140mm L

140 mm (5-1/2 in), Cut From 1338148CX

4шт.

31

120253C1

CONDUIT

210 mm (8-1/4 in), Cut From 1262114C1

1шт.
