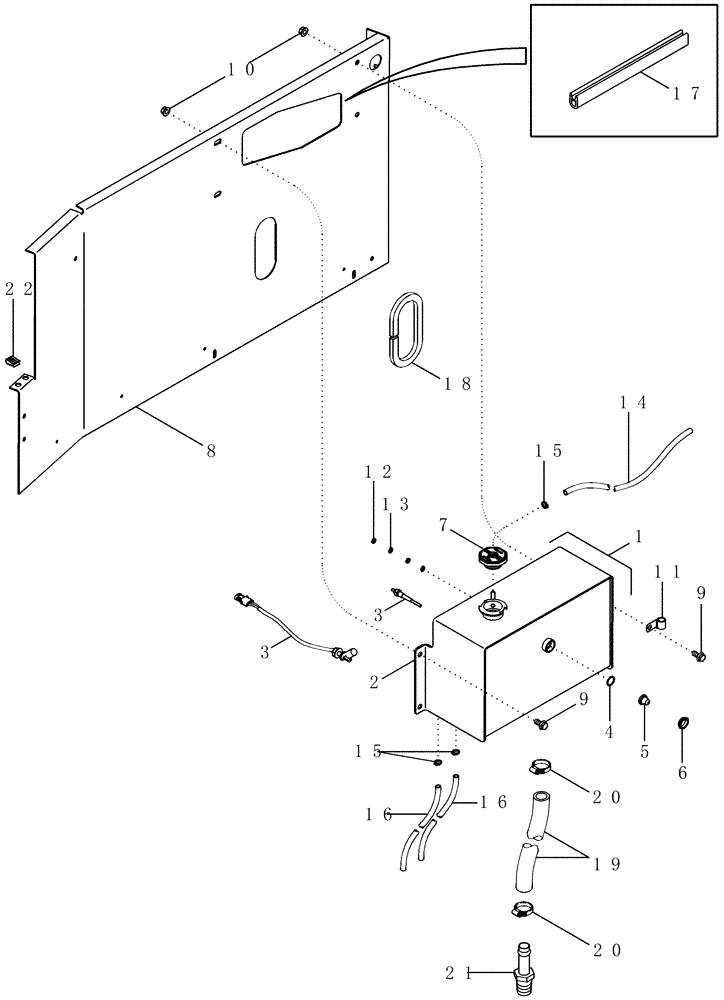

Запчасти Case IH 2377 (02-03) - DEAERATION SYSTEM (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Deaeration Assy, Includes 2 - 7,Order 87640724, Serial Range: -HAJ0295001

1шт.

1

NS

NOT SERVICED

TANK Deaeration Assy, Inc. 2 - 7, Start Serial: HAJ0295001

1шт.

2

87403850

TANK

Deaeration, Serial Range: -HAJ0295001

1шт.

2

87301656

TANK

Deaeration, Start Serial: HAJ0295001

1шт.

3

279476A1

SENSOR

Coolant Probe, Serial Range: -HAJ0295001

1шт.

3

87109915

SWITCH

Switch Fluid Level, Push In Style, Start Serial: HAJ0295001

1шт.

4

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

5

86990536

LENS

Sight

1шт.

6

86990537

NUT,15/16"

Lens Retainer

1шт.

7

87109814

FILLER CAP

Deaeration Tank

1шт.

8

442178A4

SHIELD

Rear, Serial Range: -HAJ0295001

1шт.

8

87306892

SHEET

W/Rivet Nuts, Start Serial: HAJ0295001

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

12

225-14210

NUT,#10-32

2шт.

13

492-11010

LOCK WASHER,#10

2шт.

14

87408617

HOSE,7.92mm ID x 4850mm L

Cut From 86989959

1шт.

15

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

3шт.

16

86989649

HYDRAULIC HOSE,8.00 mm ID x 900.00 mm

Deaeration, Cut 900 mm (35-3/8") from Bulk Hose 86989959

2шт.

17

87029779

SEAL

Cut 287 mm (11-1/3 in) From 196707C1, Serial Range: -HAJ0295001

2шт.

17

1327979C1

MOLDING

Cut 152mm (6.0 in) From 196707C1, Start Serial: HAJ0295001

2шт.

18

87063C3

SEAL

Cut 406 mm (16 in) from 196707C1

1шт.

19

NS

NOT SERVICED

HOSE Deareation Supply, Cut 940 mm (37 in) From Bulk Hose 87429883, Serial Range: -HAJ0295001

1шт.

19

NS

NOT SERVICED

HOSE Deareation Supply, Cut 1005 mm (39.6 in) From Bulk Hose 87429883, Start Serial: HAJ0295001

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

2шт.

21

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

22

488837C1

SPRING NUT

Speed 5/16, Serial Range: -HAJ0295001

2шт.
