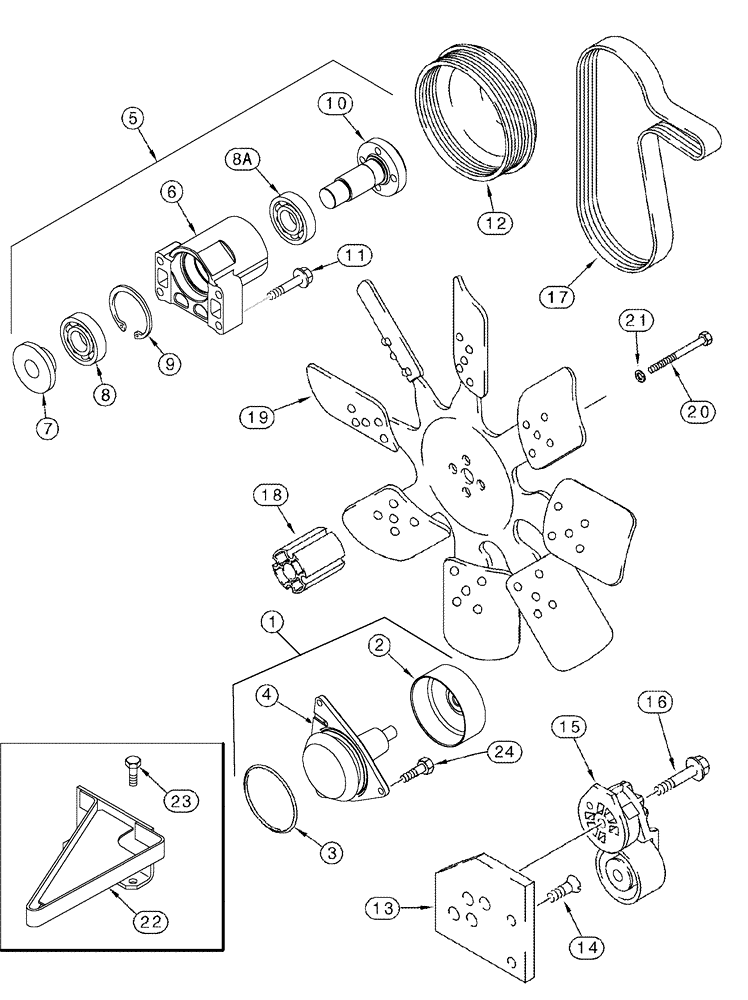

Запчасти Case IH 2377 (02-02) - WATER PUMP SYSTEM (01) - ENGINE

1

87308650

KIT, WATER PUMP REPA

Inc. 2 - 4

1шт.

87308650R

REMAN-WATER PUMP

2377 (NA) BTW HAJ292001&HAJ300000 (11/04-)

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

5

87408931

SUPPORT

Fan, Includes 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Hub

1шт.

7

NSS

NOT SOLD SEPARAT

Retainer

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

8a

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

9

32324

SNAP RING,2.44", Int, #244

1шт.

10

NSS

NOT SOLD SEPARAT

Hub

1шт.

11

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

, Serial Range: -HAJ0295001

4шт.

11

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

, Start Serial: HAJ0295001

4шт.

12

J926854

PULLEY

1шт.

13

87360715

SUPPORT

1шт.

14

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

15

87436755

BELT TENSIONER

, Serial Range: -HAJ0295001

1шт.

15

87317615

BELT TENSIONER

, Start Serial: HAJ0295001

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

17

A78022

V-BELT,3.56 mm W x 2005.00 mm L, 8 Ribs

1шт.

18

A184751

SPACER,Fan, 74/75mm Thk

75 mm

1шт.

19

446926A1

FAN

Corn and Grain

1шт.

20

814-10105

BOLT,Hex, M10 x 1.5 x 105mm, Cl 8.8

M10 x 105

4шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

22

87411538

GUIDE

Engine Fan Belt

1шт.

23

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

24

J934054

FLANGE BOLT

M8 x 28, Serial Range: -HAJ0295001

3шт.

24

87351192

BOLT

M8 x 28, Start Serial: HAJ0295001

3шт.
