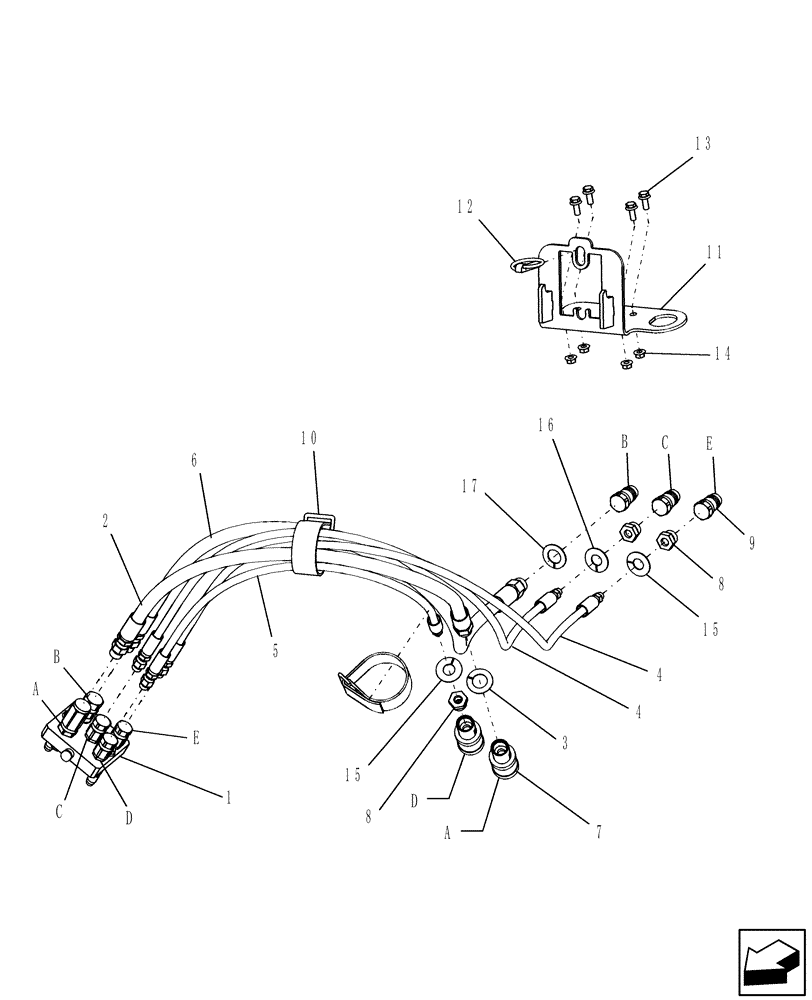

Запчасти Case IH 2377 (08-36) - COMBINE HEADER ADAPTER, HOSES AND COUPLINGS (07) - HYDRAULICS

87340862

DIA KIT, HARVESTER

Hydraulic and Electrical Interface, Inc. 1 - 16

1шт.

Also See Figure 04-47

1шт.

1

84435010

QUICK MALE COUPLING

1шт.

2

87301376

FLEXIBLE HOSE

Reel Drive Supply, A Connection

1шт.

3

1345266C1

WASHER

Plastic, White

2шт.

4

87301378

FLEXIBLE HOSE

Reel Lift [C] and Aft [E]

2шт.

5

87301380

FLEXIBLE HOSE

Reel Fore, D Connection

1шт.

6

87301377

FLEXIBLE HOSE

Reel Drive Return, B Connection

1шт.

7

1282338C91

COUPLING, QUICK, FEM

2шт.

8

196443A1

REDUCER

Reducer, -10 ORB x -4 ORB

3шт.

9

1272399C2

QUICK MALE COUPLING

Male

3шт.

10

87108048

SECURING STRAP

Cinching

2шт.

11

87301385

BRACKET

Header Coupling

1шт.

12

378704A1

LOCK PIN

Klik

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

1541792C1

WASHER

Plastic, Red

2шт.

16

1541804C1

WASHER

Plastic, Black

1шт.
