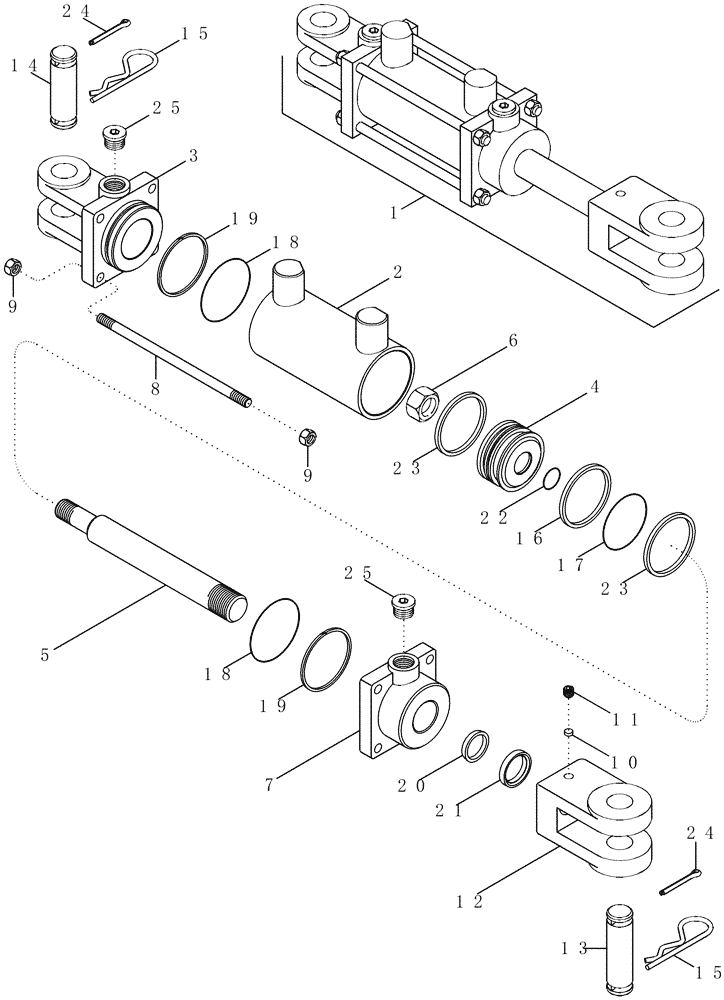

Запчасти Case IH 2377 (08-32) - CYLINDER ASSY - FIELD TRACKER, TILT (07) - HYDRAULICS

1

87424022

CYLINDER,Double Acting, 28.6mm Rod, 88.9mm Stroke

Field Tracker Tilt, 64 ID x 89 mm strk, Inc. 2 - 23

1шт.

87424022R

REMAN-HYD CYLINDER

2377 BTW HAJ292001&HAJ300000 (11/04-)

1шт.

87424022C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Head

1шт.

4

NSS

NOT SOLD SEPARAT

Jack Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

6

232-46112

LOCK NUT,3/4"-16, GC

1шт.

7

NSS

NOT SOLD SEPARAT

Jack Head

1шт.

8

NSS

NOT SOLD SEPARAT

Screw

4шт.

9

425-106

NUT,3/8"-16, Cl 5

8шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

Pad

1шт.

11

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, 3/8 x 3/8

1шт.

12

NSS

NOT SOLD SEPARAT

Ram Fork, Clevis Rod

1шт.

13

1266753C1

PIN,25.4mm OD x 96.83mm L

1шт.

14

1266752C1

PIN,25.4mm OD x 88.11mm L

1шт.

15

1978738C1

HAIR PIN COTTER

3/16"

2шт.

16

NSS

NOT SOLD SEPARAT

Seal

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

19

NSS

NOT SOLD SEPARAT

Ring

2шт.

20

NSS

NOT SOLD SEPARAT

Seal

1шт.

21

NSS

NOT SOLD SEPARAT

Seal

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

23

NSS

NOT SOLD SEPARAT

Ring

2шт.

24

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

25

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

87424023

SEAL KIT

Inc. 16 - 23

1шт.
