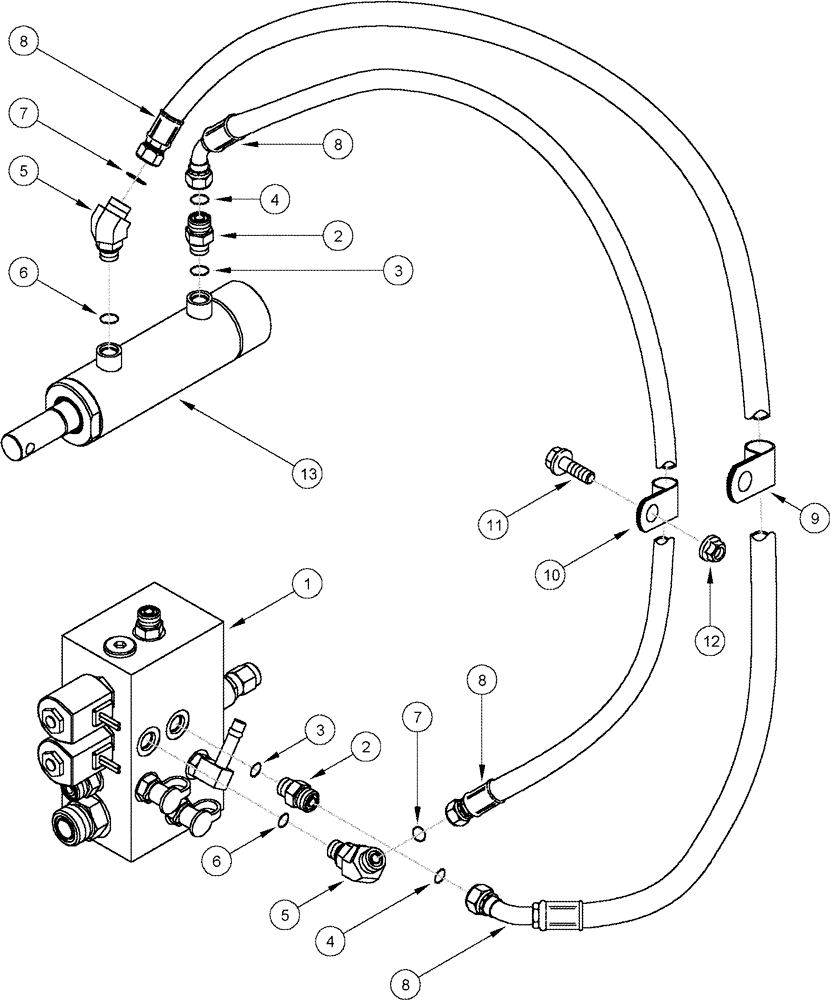

Запчасти Case IH 2377 (08-25) - HYDRAULICS - SEPARATOR CLUTCH (07) - HYDRAULICS

1

384307A1

SOLENOID VALVE

Separator Clutch

1шт.

See Figure 08-27

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 3, 4, Serial Range: -HAJ0295001

2шт.

2

134713A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

11/16 fc sl x 9/16 Or, Inc. 3, 4, Start Serial: HAJ0295001

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16, Inc. 6, 7

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

390011A1

FLEXIBLE HOSE

760 mm ( 30 in ), Separator Clutch

2шт.

9

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

10

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

11

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

13

398539A1

CYLINDER

51 ID x 318 mm strk, Separator Clutch, Inc. 14, Serial Range: -HAJ0295001

1шт.

13

87337232

CYLINDER,Double Acting, 25.4mm Rod, 88.9mm Stroke

Seperator Clutch, Start Serial: HAJ0295001

1шт.

14

414106A1

SEAL KIT

Seal, Seperator Clutch, Inc. 15 - 21, Not Illustrated, Serial Range: -HAJ0295001

1шт.

14

87364303

SEAL KIT

KIT Seal, Seperator Clutch, Start Serial: HAJ0295001

1шт.

15

381850R2

BACK-UP RING,Split, 41.68mm ID x 51.18mm OD x 2.39mm Thk

Back-up

2шт.

16

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

17

377230R1

BACK-UP RING

O-ring Back-up

1шт.

18

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

19

389500A1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

1 in, Rod

1шт.

20

532773R1

WIPER SEAL

Rod

1шт.

21

461180R1

RETAINER

1шт.
