Запчасти Case IH 2377 (08-22) - HYDRAULICS - FEEDER CLUTCH (07) - HYDRAULICS

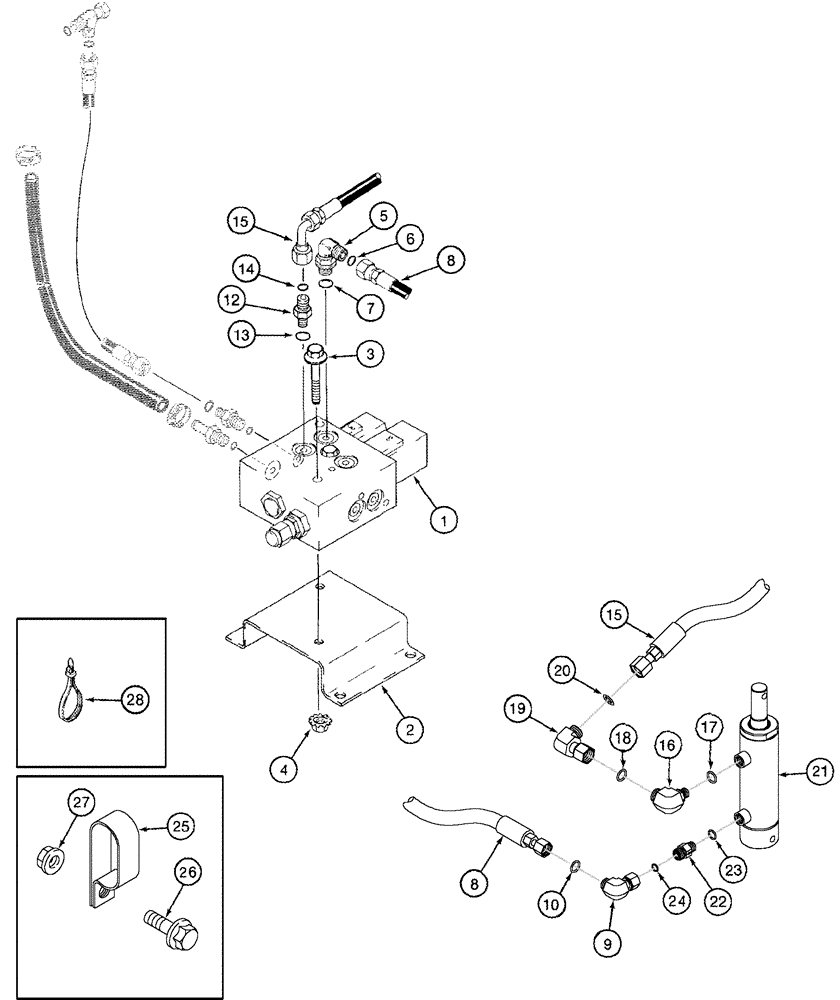

Схема запчастей Case IH 2377 - (08-22) - HYDRAULICS - FEEDER CLUTCH (07) - HYDRAULICS
15
20
21
16
28
19
22
27
8
1
15
13
18
25
8
12
24
7
17
14
4
3
5
9
26
6
23
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

129010A4

CONTROL VALVE

Parking Brake And Feeder Clutch

1шт.

See Figure 08-17

1шт.

2

128293A1

SUPPORT

1шт.

3

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 6, 7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

434296A1

FLEXIBLE HOSE

1570 mm (61-7/8 in) Feeder Clutch Cylinder Closed End

1шт.

9

201-319

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

11/16 fc x 9/16 Or, Incl 10

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 13, 14

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

131391A3

FLEXIBLE HOSE

1570 mm (61-7/8 in), Feeder Clutch Cylinder Rod End

1шт.

Note: See Parking Brake Hydraulic System, Figure 07-05 For the Common Supply and Return Lines Used With the Feeder Clutch System.

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 17, 18

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

13/16 fc x 9/16 Or, Inc. 20

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

87387239

51 ID x 63 mm strk, Feeder Clutch

1шт.

See Figure 08-30

1шт.

22

134713A1

CHECK VALVE,11/16" - 16 ORFS x 9/16" - 18 ORB

Check Valve, Inc. 24, 25

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

28

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
