Запчасти Case IH 2377 (08-21) - HYDRAULICS - REEL LIFT AND FORE/AFT (07) - HYDRAULICS

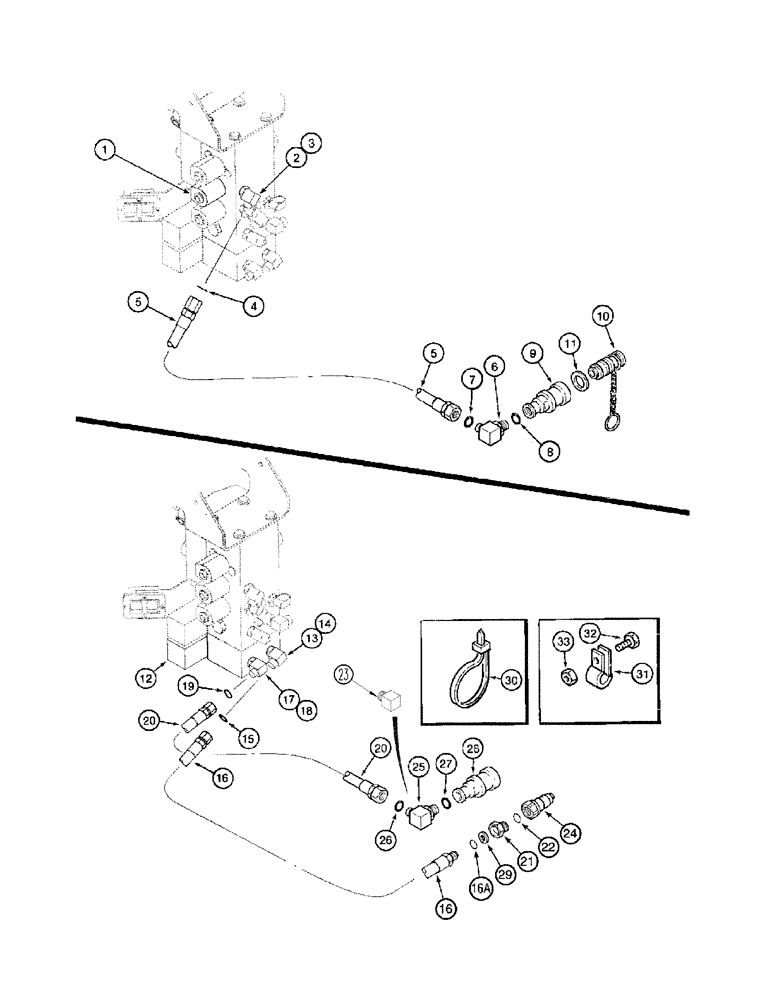

Схема запчастей Case IH 2377 - (08-21) - HYDRAULICS - REEL LIFT AND FORE/AFT (07) - HYDRAULICS
26
13
5
32
30
15
16a
9
6
2
25
17
18
33
31
24
20
20
14
22
27
12
11
4
10
3
5
29
25
23
8
16
7
19
1
21
16

Артикул

Название

Примечание

Количество

1

124566A3

VALVE, CONTROL

Header Lift With Reel Fore and Aft

1шт.

See Figure(s) 08-11, 08-14

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 3, 4

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

430392A1

FLEXIBLE HOSE

HOSE 2700 mm (106-5/16 in), Reel Lift, Inc. 7A

1шт.

6

430494A1

ELBOW

90 deg, Inc. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

10

1954133C1

PLUG

Inc. 11, Coupling, Dust

1шт.

11

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

1шт.

134112A2

VALVE

Field Kit, Reel Fore And Aft, Inc. 12 - 33

1шт.

12

131153A2

CONTROL VALVE

Reel Fore And Aft

1шт.

See Figure(s) 08-14, 08-15

1шт.

13

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 14, 15

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

430393A1

FLEXIBLE HOSE

3675 mm (144-11/16 in), Inc. 16A, Reel Aft

1шт.

16a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

17

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Includes Ref. 18, 19

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

20

430488A1

FLEXIBLE HOSE

HOSE 2650 mm (104-11/32 in), Inc. 20A, Reel Fore

1шт.

20a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

196443A1

REDUCER

7/16 fem x 7/8 in Or, Inc. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

1шт.

25

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Includes 26, 27

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

1282338C91

COUPLING, QUICK, FEM

7/8 NF, Self-Sealing

1шт.

29

1541792C1

WASHER

Red, Special

1шт.

30

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14" TIE

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

Выбрано товаров: 38
