Запчасти Case IH 2377 (08-16) - VALVE ASSY - HEADER HEIGHT (07) - HYDRAULICS

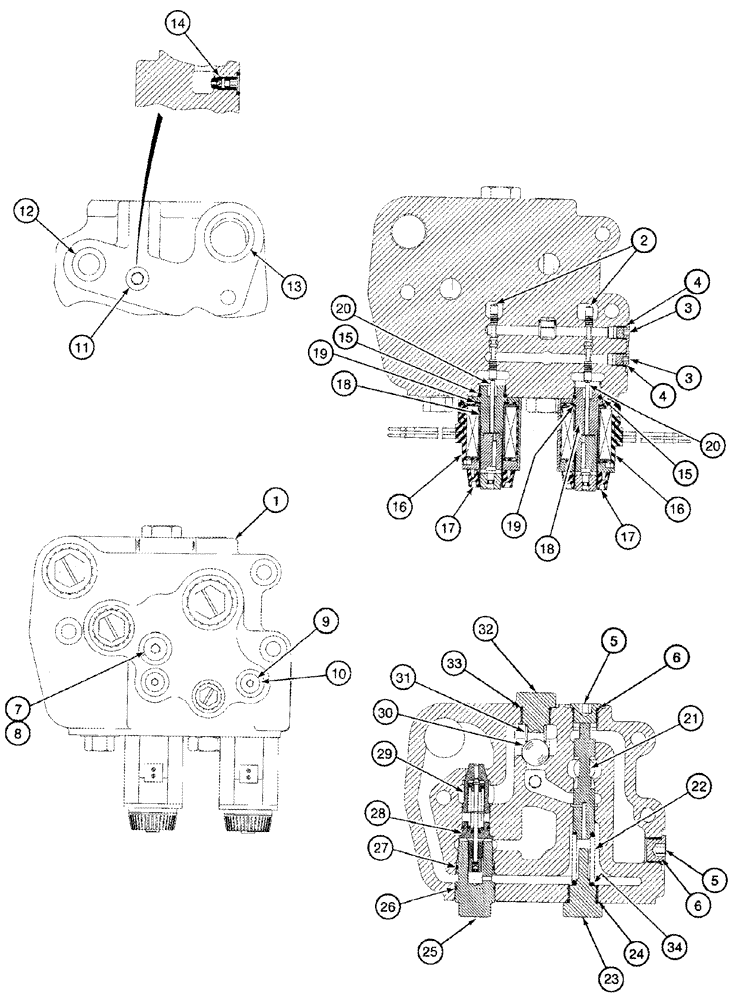

Схема запчастей Case IH 2377 - (08-16) - VALVE ASSY - HEADER HEIGHT (07) - HYDRAULICS
6
30
33
16
17
7
24
14
18
19
3
15
13
2
26
3
29
34
11
10
1
15
5
20
31
5
17
6
23
12
28
4
4
22
9
20
18
32
16
25
27
21
19
8

Артикул

Название

Примечание

Количество

186572A1

CONTROL VALVE

Inc. 1 - 34, Header Height

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

188104A1

SPOOL

Pilot

2шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 4

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl 10

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

12

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 ID x 3/32

1шт.

14

188115A1

VALVE POPPET

Signal

1шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

243254A1

KIT

Inc. 16 - 16B, Without Diode, 12 Volt, DC

2шт.

16

188105A1

SOLENOID

Without Diode, 12 Volt, DC

1шт.

16a

225318C1

ELEC CONNECTOR,2 Pin

Not Illustrated

1шт.

16b

225315C1

ELEC CONNECTOR,Male, 2 Pin

Wedge, Not Illustrated

1шт.

17

188106A1

NUT

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

Solenoid

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

Solenoid Actuating

2шт.

21

190698A2

SPOOL

Meter In, Main Flow

1шт.

22

190699A1

SPRING

Meter In, Main Flow

1шт.

23

188110A1

PLUG

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

243255A1

SERVICE KIT

Meter Out, Inc. 25 - 29

1шт.

25

188111A1

PLUG,1-1/16" - 18

Meter Out Poppet

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

28

188112A1

VALVE POPPET

Servo, Meter Out

1шт.

29

188113A1

VALVE POPPET

1шт.

30

511-10200

BALL,20mm Dia

1шт.

31

188114A1

SPRING

Load Check

1шт.

32

188107A1

PLUG

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

NSS

NOT SOLD SEPARAT

Shim, Spring

1шт.

243253A1

SEAL KIT

Seal Repair, Inc. 4, 6, 8, 10-13, 15, 19, 24, 26, 27, 33

1шт.

Выбрано товаров: 40
