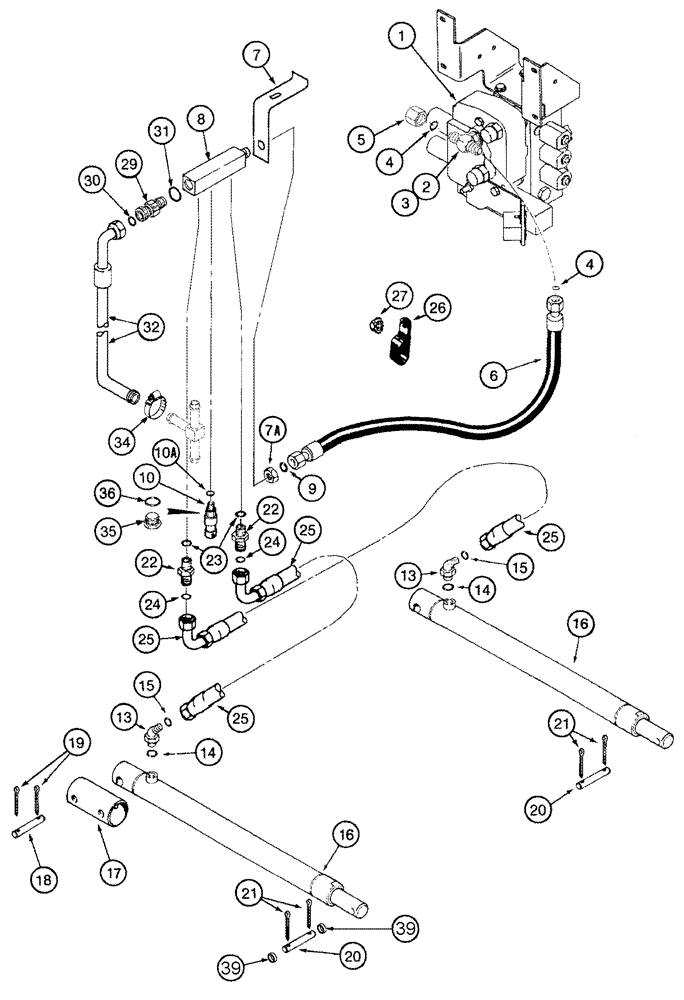

Запчасти Case IH 2377 (08-10) - HYDRAULICS - HEADER LIFT (07) - HYDRAULICS

1

124565A3

VALVE, CONTROL

Header Lift

1шт.

See Figure(s) 08-12, 08-14, 08-15, 08-17, 08-18, 08-34 - 08-36

1шт.

2

201-403

TEE,1"-14 x 7/8"-14 Br, ORFS

Includes Ref. 3, 4

1шт.

See Figure 08-35

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

201-906

CAP,1"-14 ORFS

1шт.

Without Accumulator

1шт.

6

128024A2

HOSE,15.88mm ID x 2160mm L

Header Lift Supply

1шт.

7

136489A1

SUPPORT

Manifold Bulkhead Fitting

1шт.

7a

201-919

BHD LOCK NUT,1" - 14

1шт.

8

249910A1

MANIFOLD

Feeder Lift Valve Cylinders, Thermal Relief Inc.9

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

122761A1

SENSOR

Header Float Pressure, Inc. 10A

1шт.

See Figure 04-15

1шт.

10a

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

13

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes Ref. 14, 15

2шт.

Without Rock Trap

1шт.

13a

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 14, 15, Not Illustrated

2шт.

With Rock Trap

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

87385882

CYLINDER ASSY.,63mm Rod, 582.5mm Stroke

Header Lift, Part Number Stamped On Cylinder

2шт.

16

87385882R

REMAN-HYD CYLINDER

2377 BTW HAJ292001&HAJ300000

2шт.

16

87385882C

CORE-HYD CYLINDER

Return Number

2шт.

16a

87552535

SEAL KIT

Services 16

1шт.

17

124059A2

TUBE SPACER

Extension, Lift Cylinder, Used With 54-1/2 inch Feeder Models With Rock Trap

2шт.

With Rock Trap

1шт.

Used with 54-1/2 Inch Feeder

1шт.

18

242303A1

PIN

Extension Tube To Cylinder, 1-1/4 x 6-1/2

2шт.

19

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

2-4шт.

20

242303A1

PIN

Header Lift Cylinder Mounting, 1-1/4 x 6-1/2

4шт.

21

432-1632

COTTER PIN,1/4" x 2"

1/4 "x 2"

4-8шт.

22

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 23, 24

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

235849A1

HOSE

Manifold To Header Lift Cylinders, 1220 mm (48 in)

2шт.

26

470375C1

CLAMP,1", Insul, 3/8" Bolt

Double, Purchase Locally

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

29

252300A2

VALVE

Thermal Relief

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Thermal relief valve

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Thermal Relief Valve

1шт.

32

254734A1

FLEXIBLE HOSE

Thermal Relief Valve Drain, 860 mm (33-7/8 in.), For Attaching Parts, See Figure 07-05, Ref. 28

1шт.

33

254733A1

HOSE,0.38" ID x 30.00"

Parking Brake Valve Return, Cut From S118400X, Used With Ref. 32, Not Illustrated

1шт.

34

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

1шт.

35

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes 36, Feeder Lift without Float

1шт.

36

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

37

135370A1

PROTECTION STRIP

7-1/2 in, Not Illustrated

1шт.

38

306132C1

CABLE TIE,14.5" L

CABLE STRAP Not Illustrated

2шт.

39

87351138

SPACER,38.35mm ID x 44.45mm OD x 17mm L

Lift Cylinder Pin

2шт.
