Запчасти Case IH 2377 (08-04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (07) - HYDRAULICS

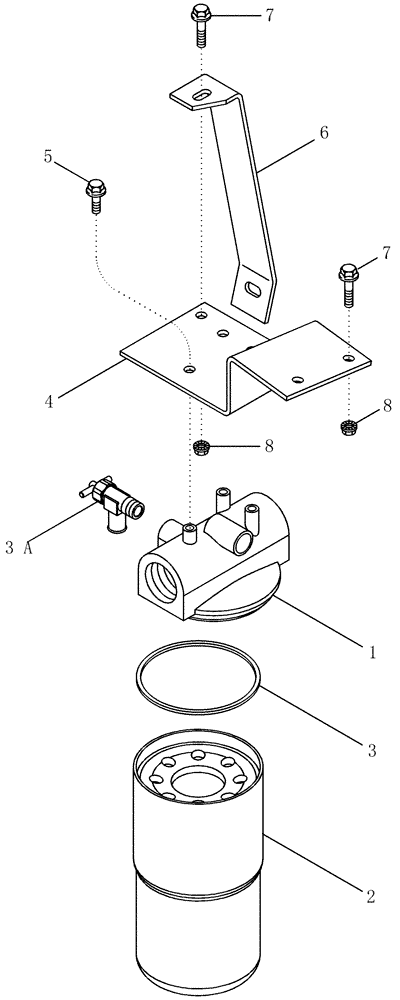

Схема запчастей Case IH 2377 - (08-04) - HYDROSTATIC - FILTER, PUMP SUCTION - SUCTION FILTER MOUNTING (07) - HYDRAULICS
3a
4
2
6
5
7
8
1
3
7
8

Артикул

Название

Примечание

Количество

87784C92

HYDRAULIC OIL FILTER

Inc. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Order 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

Order Kit 1329214C1

1шт.

Note: Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

Order Kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

1шт.

4

444454A1

BRACKET

1шт.

5

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

3/8 x 1/2

4шт.

6

444455A1

STRAP

1шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

1329214C1

HYDRAULIC OIL FILTER

Inc. Two Elements and Four Seals

1шт.

Note: Both elements must be changed at the same time.

1шт.

Выбрано товаров: 13
