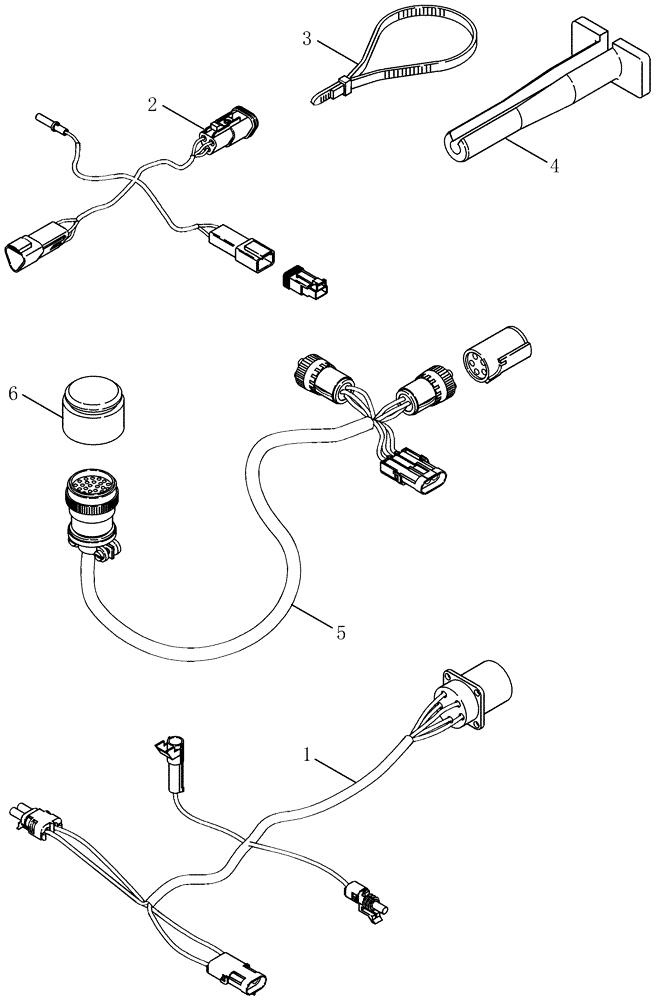

Запчасти Case IH 2377 (04-49) - COMBINE HEADER ADAPTER, ELECTRICAL (06) - ELECTRICAL

87340862

DIA KIT, HARVESTER

Hydraulic and Electrical Interface, Inc. 1 - 5.

1шт.

See Figure 08-38

1шт.

1

87447945

WIRE HARNESS

Power & Ground

1шт.

2

87455341

WIRE HARNESS

Lateral Tilt Adapter

1шт.

3

86566989

CABLE TIE,208mm L

CABLE STRAP Nylon, 8", Black

4шт.

4

87050118

TOOL

Deutsch Extractor, Size 16, Blue

1шт.

5

87447944

WIRE HARNESS

Header Interface

1шт.

6

87105683

CAP

Interface Harness

1шт.
