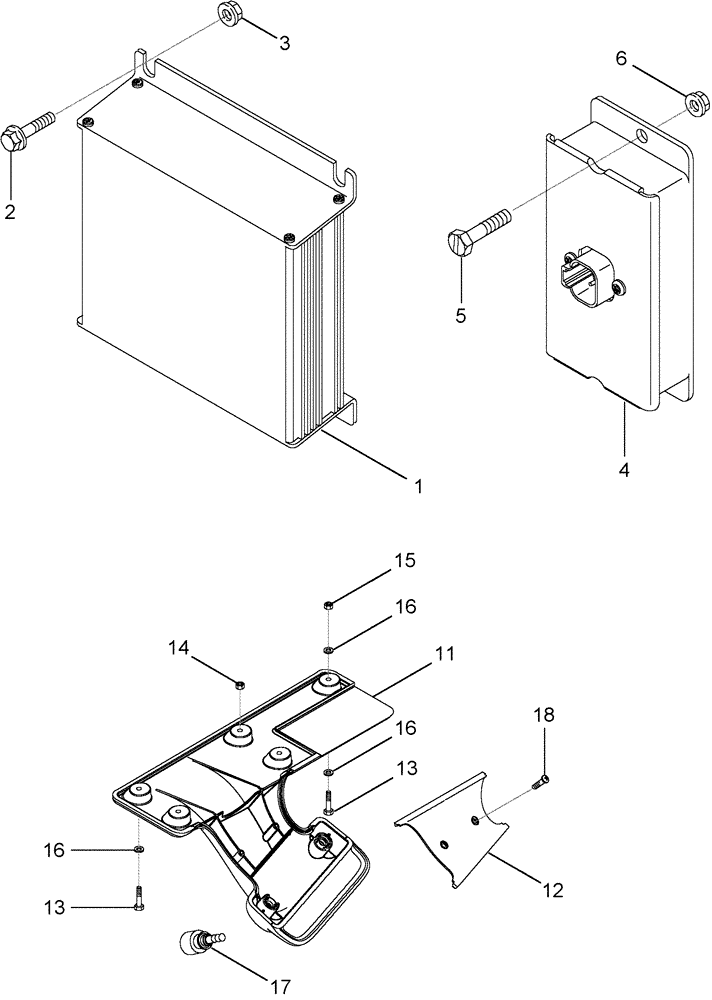

Запчасти Case IH 2377 (04-48) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (06) - ELECTRICAL

336469A9

AFS PARTS & PACKAGES

Yield Monitor Interface Unit

1шт.

1

86976394

ECU

MONITOR - Yield Monitor Interface Unit Without Software

1шт.

1

86976394R

REMAN ELECT CONTROL

2377 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ292001&HAJ300000, MONITOR - Yield Monitor Interface Unit Without Software (11/04-)

1шт.

1

86976394C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

284638A2

ELEC CONNECTOR,4 Pin

Terminator

1шт.

5

363-31012

SCREW,Hex Wash Hd, #10-24 x 3/4"

No. 10 NC x 3/4

2шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

7

365513A1

WIRE HARNESS

Main Yield Monitor Interface Unit Exterior

1шт.

8

365512A1

WIRE HARNESS

Yield Monitor Cab Display

1шт.

See Figure 04-44

1шт.

9

105849A1

RELAY

20 amp, Continuous Duty, (Not Illustrated)

1шт.

10

121412A1

FUSE,10A, Mini, Red

(Not Illustrated)

2шт.

10

121410A1

FUSE,5A, Mini, Tan

(Not Illustrated)

1шт.

11

351004A2

SUPPORT

Inc. 17)

1шт.

12

327387A1

COVER

Display Mounting

1шт.

13

276-14520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

No. 10 NC x 1-1/4

5шт.

14

131-893

CLIP,#10 - 24

No. 10 (Not Illustrated)

2шт.

15

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

16

495-31022

WASHER,#10

5шт.

17

319731A1

SCREW

Retractable, M5

2шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

Not Illustrated

2шт.

19

318575A1

WIRE HARNESS

Yield Sensor (Not Illustrated)

1шт.

20

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP (Not Illustrated)

3шт.

21

232801A1

DOOR SEAL

Door, 1016 mm (40 inch) long, (Not Illustrated)

1шт.

22

6-84790

OPERATOR MANUAL

Universal Display and Universal Display Plus Yield Monitor (Not Illustrated) (Order Direct from DMC)

1шт.

23

6-17250

INSTRUCTION

CARD - Quick Reference, AFS Display Operation (Not Illustrated) (Order Direct from DMC)

1шт.

24

7-89241

INSTRUCTION

Yield Monitor Interface Installation, 2000 series combines (Not Illustrated) (Order Direct from DMC)

1шт.

25

435831A1

FASTENER

Velcro (Not Illustrated)

2шт.
