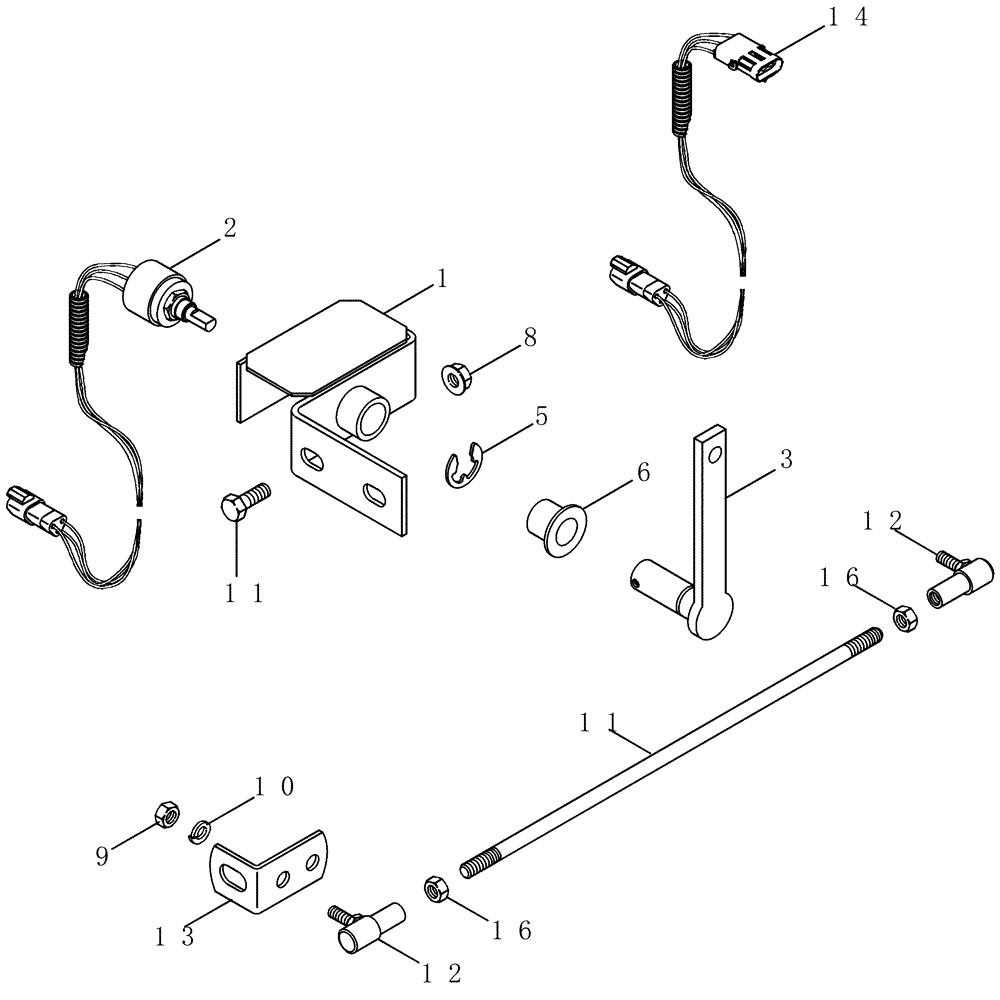

Запчасти Case IH 2377 (04-47) - HEADER HEIGHT POTENTIOMETER AND MOUNTING, AFS (06) - ELECTRICAL

239136A1

POTENTIOMETER

Header Height, Right Hand

1шт.

87315265R

REMAN-SENSOR

2377 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ292001&HAJ300000, Header Height, Right Hand (11/04-), Reman for New PN 239136A1

1шт.

87315265C

CORE-SENSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - Potentiometer

1шт.

2

NSS

NOT SOLD SEPARAT

POTENTIOMETER - Single, 1K, Header Height

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER - Potentiometer

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - Set, Hex 4 x 6 mm

1шт.

5

NSS

NOT SOLD SEPARAT

RING - E-type, External Retaining, No. 50

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - Potentiometer

1шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

9

425-114

NUT,1/4"-28, G5

2шт.

10

492-11025

LOCK WASHER,1/4"

2шт.

11

301522A1

THREADED TIE-ROD

1/4 NF x 6-1/2, Inc. 16

1шт.

12

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

2шт.

13

127308A2

SUPPORT

Rear, Potentiometer

1шт.

14

253421A1

WIRE HARNESS

CABLE - Header Height, 2100 and 2300 Series Combines

1шт.

15

363660R1

CLIP

Not Illustrated

1шт.

15

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

12.7 mm, Not Illustrated

1шт.

16

425-114

NUT,1/4"-28, G5

2шт.
