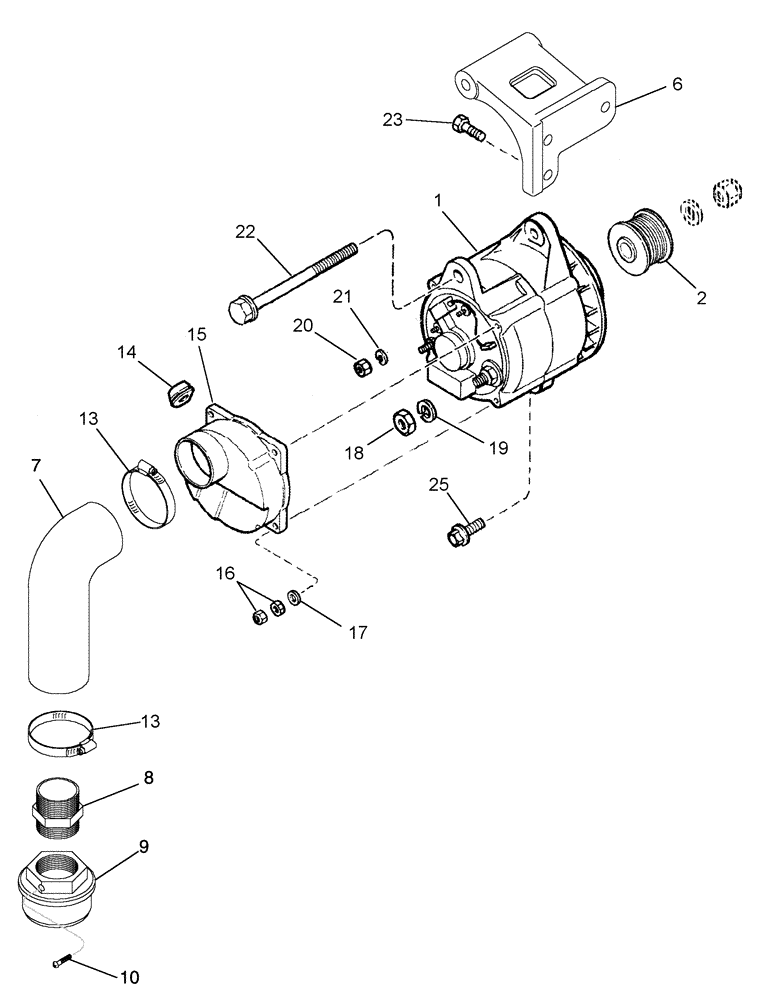

Запчасти Case IH 2377 (04-36) - ALTERNATOR - MOUNTING (06) - ELECTRICAL

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp

1шт.

See Figure 04-37

1шт.

1

125849A1GV

ALTERNATOR

Value, 12 volt 135 ampere

1шт.

2

87452704

PULLEY,70.66mm OD

1шт.

6

87360715

SUPPORT

Alternator

1шт.

7

143953A1

ELBOW

Alternator Air Inlet

1шт.

8

87552611

PIPE,2" Short Poly Nipple

1шт.

9

87540645

SCREEN

Alternator Air

1шт.

10

183-112

THUMB SCREW,1/4"-20 x 1"

1шт.

13

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

2шт.

14

1964826C1

GROMMET

1шт.

15

1338890C1

COVER

1шт.

16

825-1405

NUT,M5, Cl 8

8шт.

17

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

4шт.

18

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16

1шт.

19

492-11044

LOCK WASHER,7/16"

1шт.

20

825-1404

NUT,M4, Cl 8

1шт.

21

892-11004

LOCK WASHER,M4

1шт.

22

87030021

BOLT,Hex, M12 x 150mm, Cl 10.9

M12 x 150

1шт.

23

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.

24

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

25

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

(5)

1шт.
