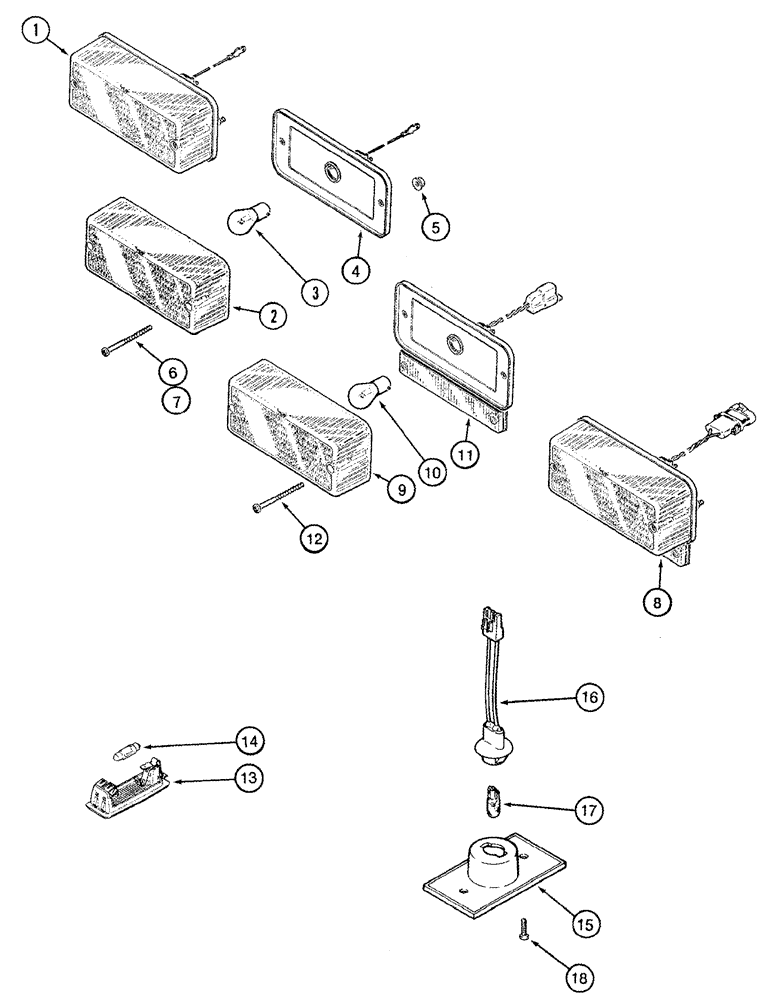

Запчасти Case IH 2377 (04-31) - LAMP ASSYS, WARNING LAMP (06) - ELECTRICAL

1

130882C91

LAMP

Warning, Inc. 2 - 4

4шт.

2

130883C1

LENS

Amber

1шт.

3

529068

BULB,#1156, 12V, 21W

1шт.

4

NSS

NOT SOLD SEPARAT

Plate

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

6

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

No. 10 x 2-1/4

4шт.

7

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

No. 10 x 2-1/4

4шт.

8

92260C1

LAMP,12V, 27W, Red

Stop And Tail, Inc. 9 - 11

2шт.

9

216045C1

LENS

Red

1шт.

10

86537133

BULB,C6, #1157, 12.8V

1шт.

11

NSS

NOT SOLD SEPARAT

Plate

1шт.

12

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

No. 10 x 2-1/4

4шт.

13

429726A1

COURTESY LIGHT

DOME LIGHT Inc. 14

2шт.

14

E35556

BULB,12V, 10W

1шт.

83882C91

LAMP

Console, Inc. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

Lens

1шт.

16

107329C1

WIRE HARNESS

1шт.

17

D71346

TAIL LAMP,12V

No. 168

1шт.

18

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.
