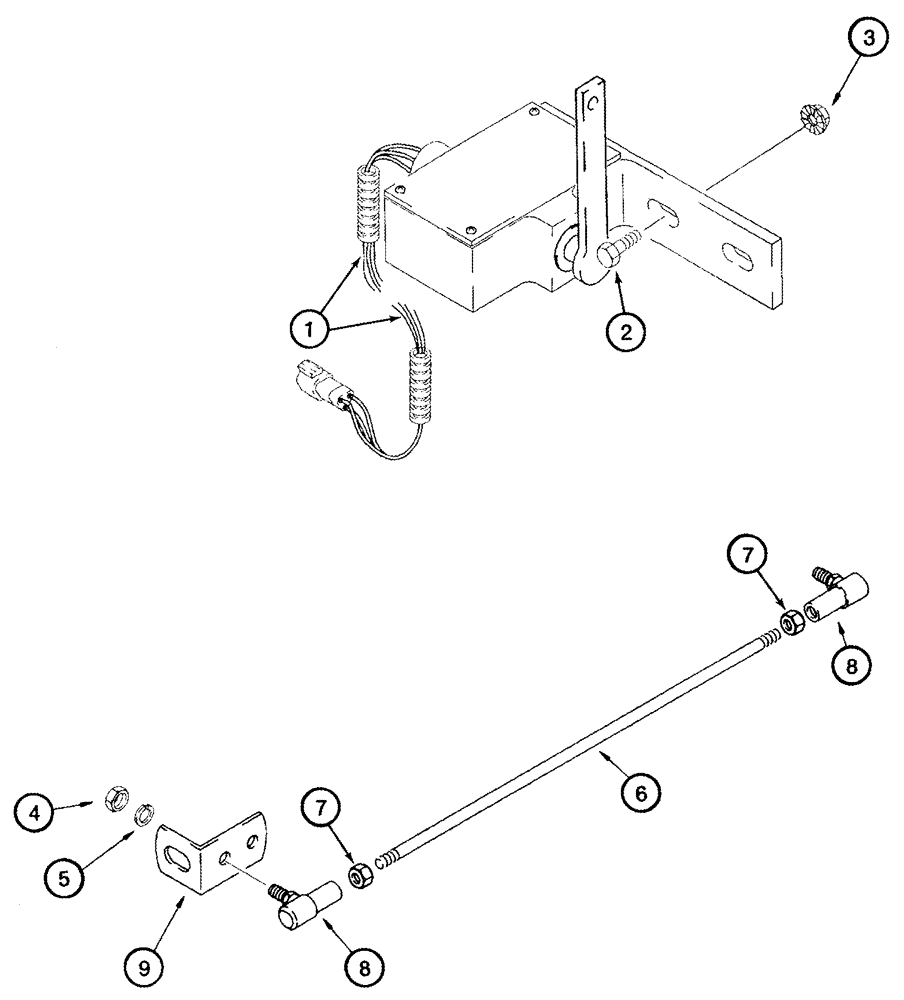

Запчасти Case IH 2377 (04-25) - POTENTIOMETER, FEEDER POSITION - MOUNTING - RETURN TO CUT (06) - ELECTRICAL

1

238459A1

POTENTIOMETER

Return To Cut, Left Hand

1шт.

See Figure 04-21

1шт.

1

87315263R

REMAN-SENSOR

2377 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ292001&HAJ300000, Left Hand (11/04-), Reman for New PN 238459A1

1шт.

1

87315263C

CORE-SENSOR

Return Number

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

4

425-114

NUT,1/4"-28, G5

2шт.

5

492-11025

LOCK WASHER,1/4"

2шт.

6

301522A1

THREADED TIE-ROD

1/4 NF x 6-1/2, Inc. 7

1шт.

7

425-114

NUT,1/4"-28, G5

2шт.

8

A10329

BALL JOINT,1/4" - 28 x 1"

1/4 NF

2шт.

9

127308A2

SUPPORT

1шт.
