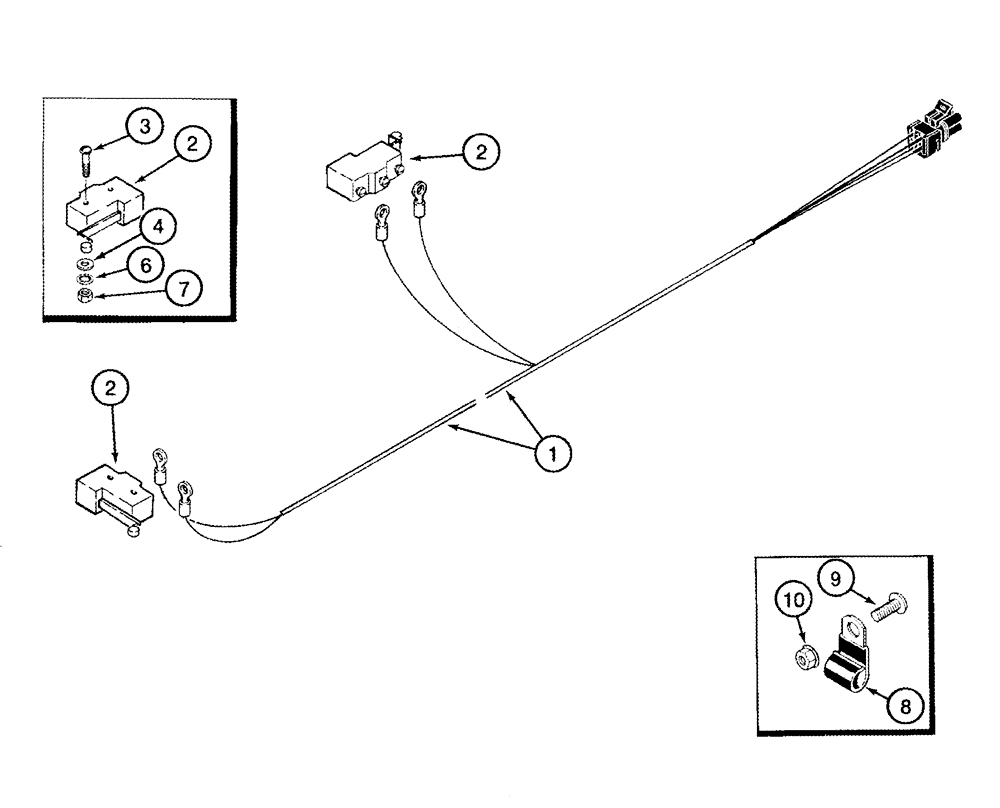

Запчасти Case IH 2377 (04-19) - HARNESS - ROTOR LIMIT SWITCH (06) - ELECTRICAL

1

245240C1

WIRE HARNESS

Rotor Limit Switch

1шт.

2

128298A2

MECHANICAL SWITCH

Rotor Limit

2шт.

3

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

4шт.

4

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

13/64 x 3/4 x 1/16

4шт.

6

280384

LOCK WASHER,Int Tooth, #6

No. 6, Internal Tooth Lock

4шт.

7

225-14106

NUT,#6-32

4шт.

8

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

9/16 ID

2шт.

9

477-73808

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1/2"

3/8 x 1/2

1шт.

10

231-5146

FLANGE NUT,3/8"-16

1шт.
