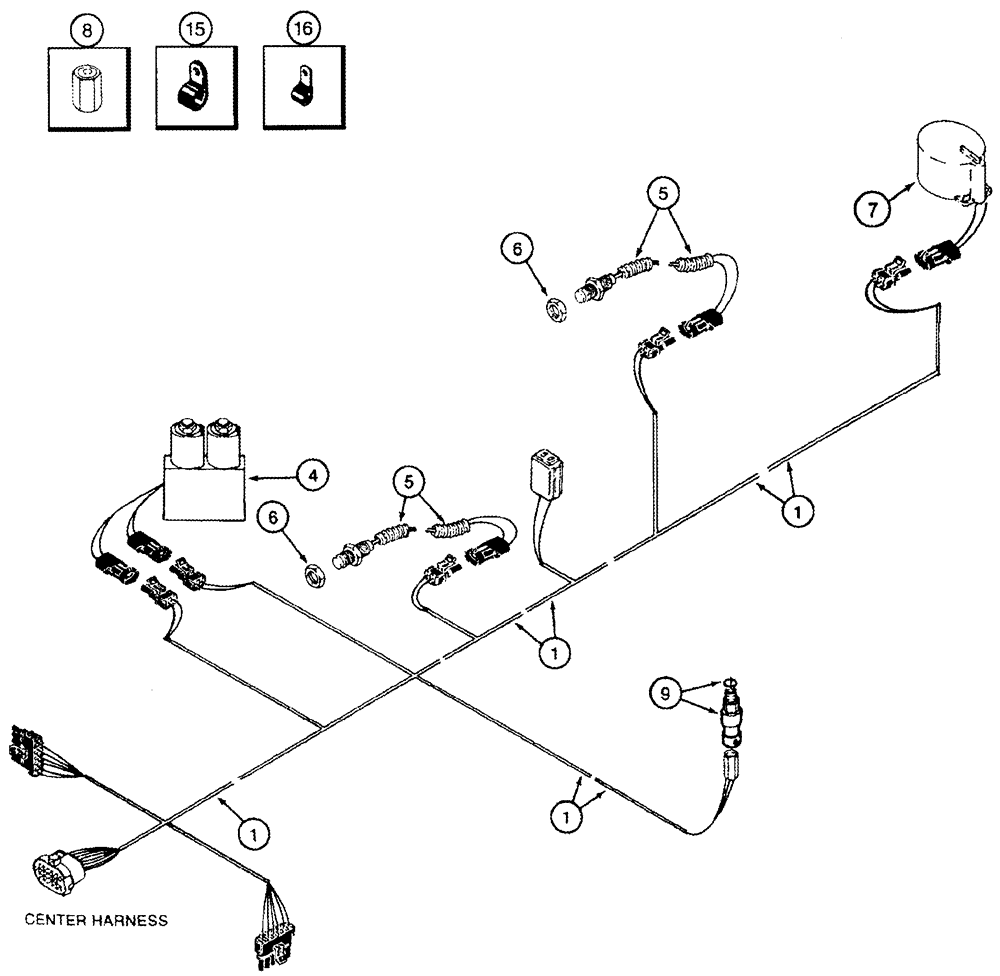

Запчасти Case IH 2377 (04-15) - HARNESS, LOWER (06) - ELECTRICAL

1

243187A1

WIRE HARNESS

Lower, Inc. 2, 3

1шт.

2

187308A1

CAP

(Not Illustrated)

2шт.

3

187309A1

BAR

Splice (Not Illustrated)

2шт.

4

129010A4

CONTROL VALVE

Parking Brake And Feeder Clutch

1шт.

See Figure 08-17

1шт.

5

245193C2

SENSOR

Ground Speed, Fan Speed

2шт.

6

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4 NF

2шт.

7

1345482C3

TRANSMITTER

Clean Grain Speed, Shaft 1-1/4 in.

1шт.

7

143956A3

TRANSMITTER

Clean Grain Speed, Shaft 1-3/8 in. (Not Illustrated)

1шт.

8

106666A1

SPECIAL NUT

3/8

1шт.

9

86975430

SENSOR

Header Float Pressure

1шт.

See Figure 08-10

1шт.

15

92386C1

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

16

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

17

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Illustrated

2шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

3шт.

19

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Illustrated

1шт.
