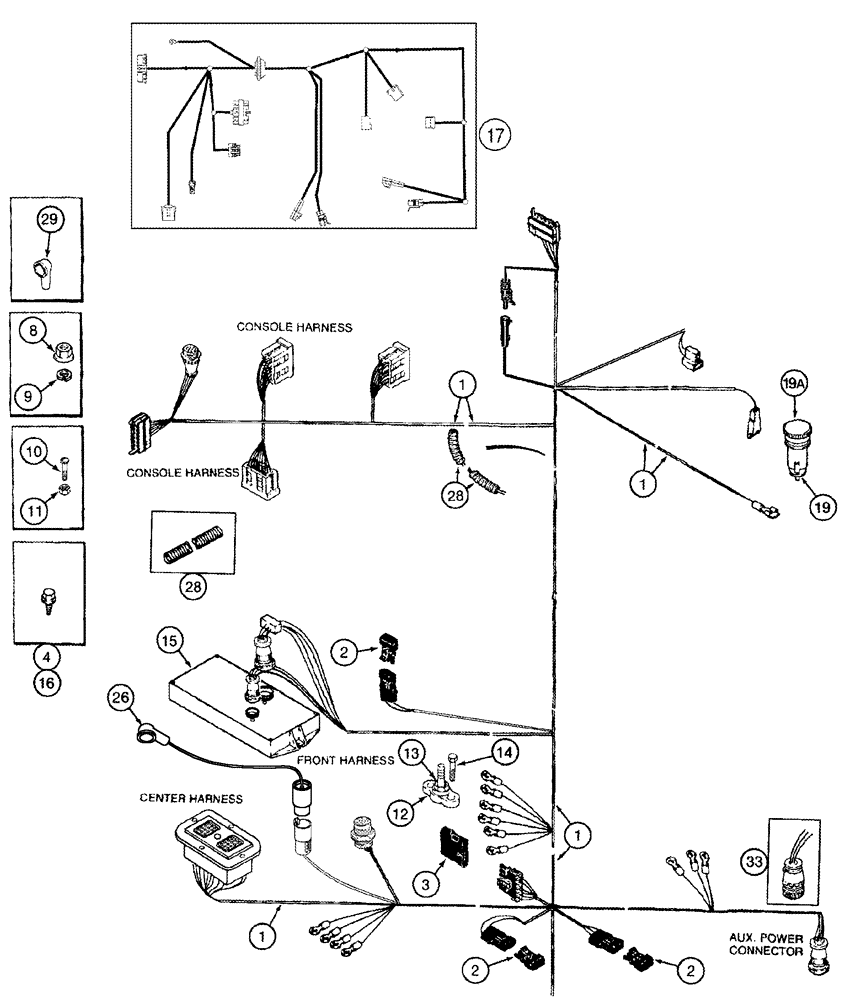

Запчасти Case IH 2377 (04-12) - HARNESS - CAB, LOWER REAR (06) - ELECTRICAL

1

87314715

WIRE HARNESS

Cab, Serial Range: -HAJ0295001

1шт.

See Figure 04-13

1шт.

1

87304011

WIRE HARNESS

Cab, Start Serial: HAJ0295001

1шт.

See Figure 04-13

1шт.

2

A187874

MODULE

Unloader Auger, Concave Clearance Request

2шт.

3

127290A1

DIODE

Rotor/Fan Speed Request

1шт.

4

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

Bulkhead Connector

4шт.

8

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

3шт.

10

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

No. 6 x 5/8

4шт.

11

231-14106

NUT,#6-32, GB

No. 6

4шт.

12

303717A1

JUNCTION BLOCK

Junction, Switched, B+, Inc. 13, (1) 113-235

2шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

2шт.

15

239938A7

CONTROL

Header

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 239938A7

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

16

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

17

431091A1

WIRE HARNESS

Heating and Air Conditioning, Component of 431088A2

1шт.

See Figure 09G-17

1шт.

19

432212A1

CIGAR LIGHTER

Socket Assy

1шт.

19a

190812A1

COVER

Cigar Lighter

1шт.

26

277019A2

CABLE

Cab Power, Inc. 29

1шт.

See Figure 04-34

1шт.

28

236586A1

CONDUIT

990 mm (39 in)

1шт.

29

399470R1

BOOT

1шт.

33

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

Note: Order to use with add-on radios, phones, and other accessories.

1шт.

35

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1, Not Illustrated

2шт.

311906A1

KIT

Cab Power, Inc. 37 - 39, Not Illustrated

1шт.

Note: These connectors, 277424A1 and 277431A1 are located behind Refs 6 and 7 on page 09G-01. If broken or loose cab power may be lost and emergency parking brake will engage. Purchase 311906A1 kit to repair.

1шт.

37

277424A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

38

277431A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

39

311905A1

TOOL

Not Illustrated

1шт.

40

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP Not Illustrated

3шт.
