Запчасти Case IH 2377 (04-08) - HARNESS, ENGINE - ASN HAJ0295001 (06) - ELECTRICAL

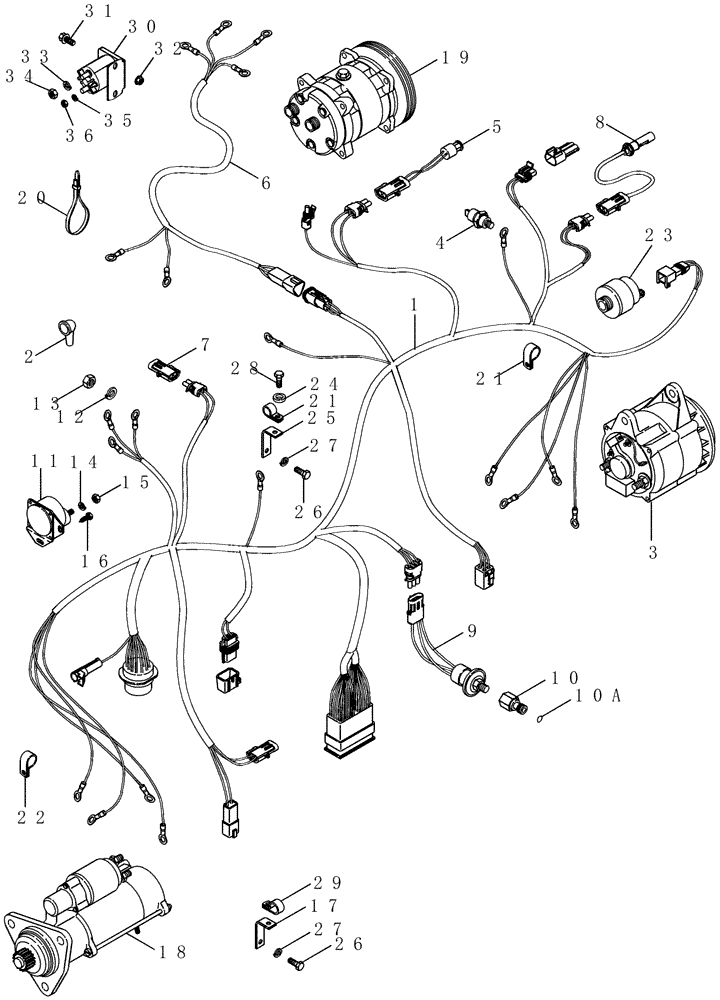

Схема запчастей Case IH 2377 - (04-08) - HARNESS, ENGINE - ASN HAJ0295001 (06) - ELECTRICAL
2
17
24
19
27
29
28
16
25
1
32
30
4
23
6
12
3
9
27
26
8
21
31
21
33
11
15
14
10a
35
36
10
13
5
34
18
22
20
7
26

Артикул

Название

Примечание

Количество

1

87310725

WIRE HARNESS

Engine, Inc. 2

1шт.

2

399470R1

BOOT

2шт.

3

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp

1шт.

See Figure 04-39

1шт.

3

125849A1GV

ALTERNATOR

Value, 12 volt 135 ampere

1шт.

4

430653A1

SWITCH

Coolant Temperature, Includes O-Ring Gasket

1шт.

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

369798A2

SWITCH

High Pressure, Air Conditioning

1шт.

6

87302567

WIRE HARNESS

Grid Heater

1шт.

7

87302560

RESISTOR

Resistor

1шт.

8

87109915

SWITCH

Switch Fluid Level, Push In Style

1шт.

9

1964960C1

PRESSURE SWITCH

Engine Oil Pressure

1шт.

10

250838A2

HYD CONNECTOR

M10, Inc. 10A

1шт.

10a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

11

178149A1

SOLENOID SWITCH

1шт.

See Figure 04-01

1шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

492-11010

LOCK WASHER,#10

1шт.

15

225-14210

NUT,#10-32

1шт.

16

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

18

87419387

STARTING MOTOR

1шт.

See Figure(s) 04-37, 04-38

1шт.

84146320R

REMAN-STARTER,12V, 4.2kW

2377 BTW HAJ292001&HAJ300000, HARNESS, ENGINE - ASN HAJ0295001 (11/04-), Reman for New P/N 87419387

1шт.

84146320C

CORE-STARTER,12V, 4.2kW

Return Number

1шт.

17

1317942C1

BRACKET

1шт.

19

86993462

AIRCOND. COMPRESSOR

1шт.

See Figure 9G-20

1шт.

19

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

2377 BTW HAJ292001&HAJ300000 ASN HAJ0295001 (11/04-)

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

19

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

20

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

8шт.

21

515-30222

CLAMP,7/8", 1/2" Bolt

7шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

22

1345263C1

CLIP

3/4 ID

1шт.

22

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

23

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

24

87302566

SPACER,12.5mm ID x 17.1mm OD x 76.2mm L

3/8 x 3 in

1шт.

25

1317942C1

BRACKET

Grain Tank Light

1шт.

26

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

26

87032825

BOLT,Hvy Hex, M12 x 100mm, Cl 10.9

SCREW M12 x 100; 10,9

1шт.

27

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

28

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

30

87406968

SOLENOID SWITCH

Grid Heater

1шт.

31

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

2шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

33

492-11031

LOCK WASHER,5/16"

2шт.

34

425-105

NUT,5/16"-18, G5

2шт.

35

492-11010

LOCK WASHER,#10

2шт.

36

225-14210

NUT,#10-32

2шт.

Выбрано товаров: 54
