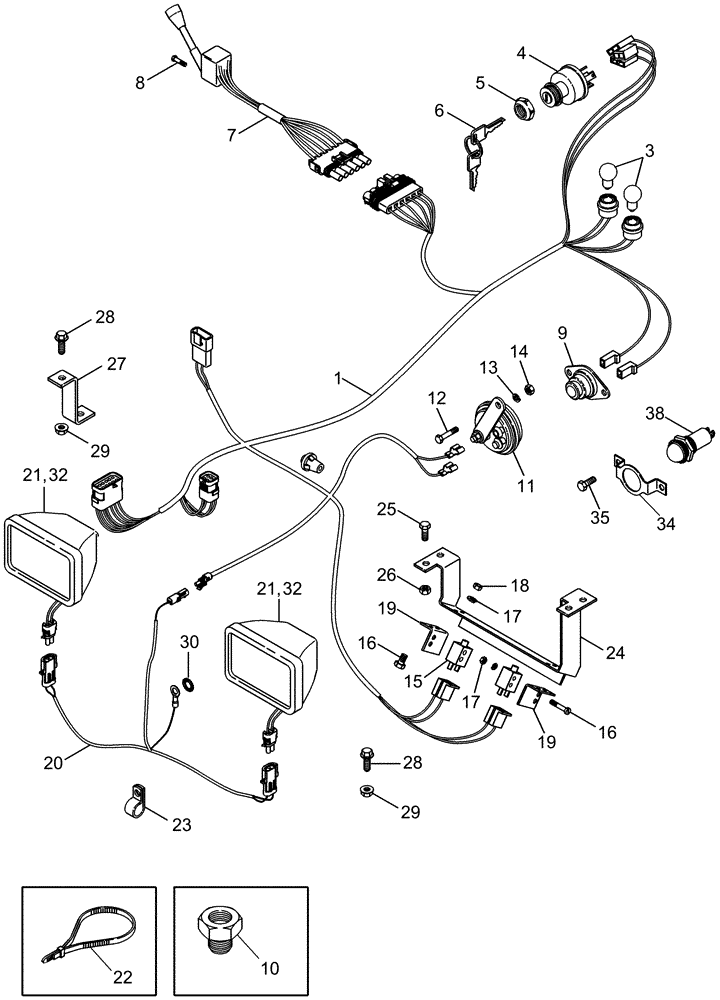

Запчасти Case IH 2377 (04-04) - HARNESSES - STEERING CONSOLE AND PLATFORM (06) - ELECTRICAL

1

277603A1

WIRE HARNESS

Steering Console, Serial Range: -HAJ0295001

1шт.

1

87305156

WIRE HARNESS

Steering Console, Start Serial: HAJ0295001

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 7 in

4шт.

3

D71346

TAIL LAMP,12V

No. 168

4шт.

4

282775A1

IGNITION SWITCH

Inc.5, 6

1шт.

5

1964785C1

NUT

1шт.

6

1964831C2

IGNITION KEY

Padded

1шт.

7

1500137C2

FLASHER SWITCH

Horn

1шт.

8

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

2шт.

9

D67872

SWITCH

Ether Injection, Serial Range: -HAJ0295001

1шт.

10

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

11

237582A1

HORN

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

892-11006

LOCK WASHER,M6

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

127286A1

SWITCH

Emergency Brake

2шт.

16

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

8шт.

17

492-11010

LOCK WASHER,#10

8шт.

18

225-14110

NUT,#10-24

8шт.

19

296466A1

BRACKET

Brake Switch

2шт.

20

184848A2

WIRE HARNESS

Platform

1шт.

21

185117A1

HEADLIGHT,12V, 37.5W

Aftercut, Inc. 22

2шт.

22

323094A1

BULB

Type C-6, No. 894, Not Illustrated

1шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

24

296643A1

BRACKET

Brake Switch

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

27

183629A1

SUPPORT

Aftercut Lamp

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

32

430506A1

LAMP,Halogen, 12V, 35W, Clear

35W

2шт.

See Figure 04-43

1шт.

34

87316983

SUPPORT

Indicator Light, Start Serial: HAJ0295001

1шт.

35

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

#10-24 x 1-1-1/2 HWH, Start Serial: HAJ0295001

2шт.

38

87307261

INDICATOR LIGHT

Wait to Start, Start Serial: HAJ0295001

1шт.
