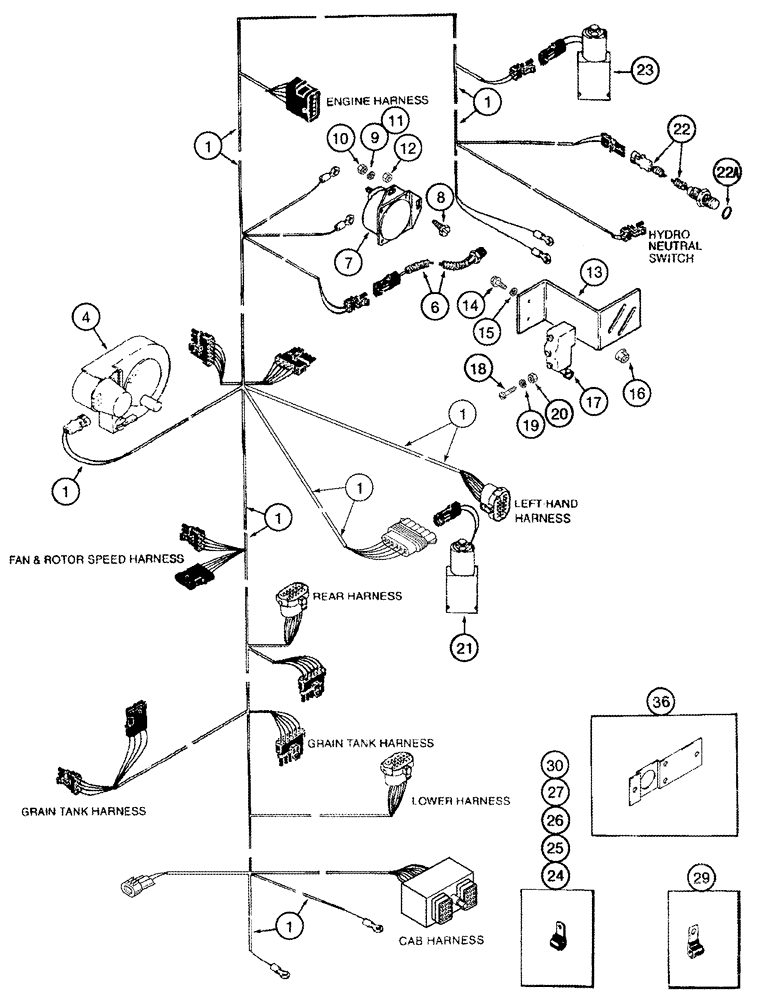

Запчасти Case IH 2377 (04-03) - HARNESS, CENTER (06) - ELECTRICAL

1

441974A1

WIRE HARNESS

Center, Inc. 2, 3 (Shown), Serial Range: -HAJ0295001

1шт.

1

87361204

WIRE HARNESS

Center, Inc. 2, 3 (Not Shown), Start Serial: HAJ0295001

1шт.

1

87304010

WIRE HARNESS

Center, Pilot Machines

1шт.

2

187308A1

CAP

(Not Illustrated)

4шт.

3

187309A1

BAR

Splice, (Not Illustrated)

4шт.

4

127813A1

LAMP

Service, Reel, Inc. 5

1шт.

5

H40556

BULB

12V, (Not Illustrated)

1шт.

6

122428A1

SWITCH

Hydraulic Oil Level

1шт.

7

178149A1

SOLENOID SWITCH

1шт.

See Figure 04-01

1шт.

8

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

492-11010

LOCK WASHER,#10

1шт.

12

225-14210

NUT,#10-32

1шт.

13

141944A1

SUPPORT

1шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

2шт.

15

492-11031

LOCK WASHER,5/16"

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

141655A1

SWITCH

Unloader In

1шт.

18

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

19

280384

LOCK WASHER,Int Tooth, #6

WASHER No. 6

2шт.

20

225-14106

NUT,#6-32

2шт.

21

384307A1

SOLENOID VALVE

Unloader Clutch

1шт.

See Figure 08-24

1шт.

22

177678A1

TEMPERATURE SWITCH

Hydraulic Oil Temperature, Inc. 22A

1шт.

22a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

275986A2

VALVE

Separator Clutch

1шт.

See Figure 08-26

1шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

2шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

, Serial Range: -HAJ0295001

5шт.

25

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

, Start Serial: HAJ0295001

5шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

(Not Shown)

4шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Not Shown

8шт.

26

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

29

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

30

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

M12 x 25; 10.9, (Not Shown)

1шт.

9804279

FLANGE NUT,Hex, M12, Cl 8

(Not Shown)

1шт.

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Not Shown

9шт.

35

197514A2

SWITCH

Neutral Start, Not Illustrated

1шт.

See Figure 06-09, REF 20

1шт.

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not shown

14шт.

102251A1

CLIP

(Not Shown)

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Not Shown

1шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

(Not shown)

1шт.

36

1988723C1

SUPPORT

1шт.

87302571

HEX SOC SCREW,Hex Washer Hd, #10 - 24 x 1"

SCREW No. 10 x 1, (Not Shown)

3шт.

231-51409

SERRATED NUT,Flg, USR, #10-24

Not Shown

3шт.
