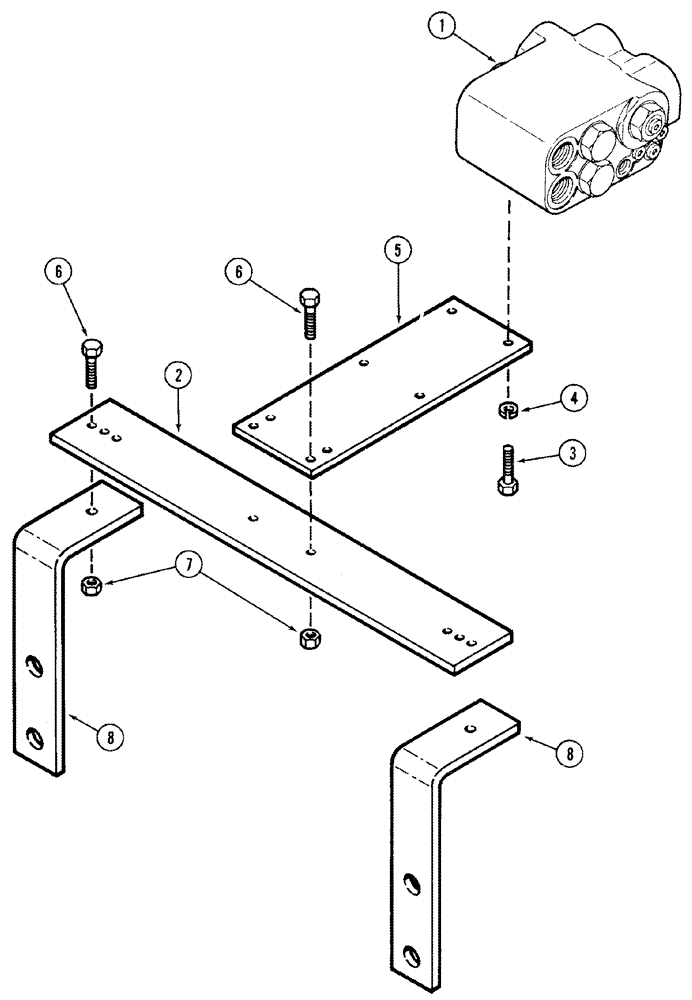

Запчасти Case IH 2377 (05-22) - VALVE, SELECTOR CONTROL - MOUNTING - POWER GUIDE AXLE (04) - STEERING

1

REF

INSTRUCTION

Valve, Control

1шт.

See Figure(s) 05-24, 05-25

1шт.

2

1324455C2

PLATE

1шт.

3

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

1324454C4

PLATE

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

7

232-4116

NUT,3/8"-16, GC

4шт.

8

1324471C1

BRACKET

2шт.
