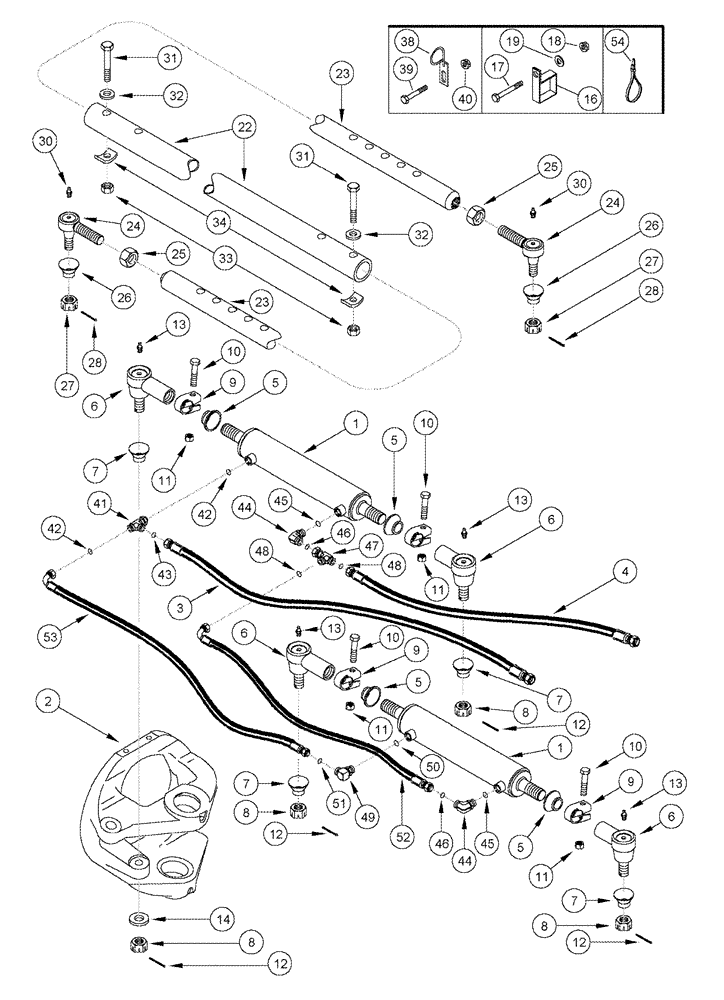

Запчасти Case IH 2377 (05-18) - STEERING CYLINDER AND TIE ROD - POWER GUIDE AXLE - DUAL STEERING CYLINDER (04) - STEERING

1

87337229

CYLINDER

57 ID x 229 mm strk

2шт.

See Figure 05-21

1шт.

2

REF

INSTRUCTION

Carrier

2шт.

See Figure 05-13

1шт.

3

128091A2

FLEXIBLE HOSE

2160 mm (85 in)

1шт.

4

128084A2

FLEXIBLE HOSE

1960 mm (77-1/8 in)

1шт.

5

229298A1

BOOT

4шт.

6

437222A1

BALL JOINT

Inc. 7 - 11

4шт.

7

87301009

BOOT

1шт.

8

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

9

446308C91

CLAMP

Inc. 10, 11

1шт.

10

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

7/16 x 1-7/8

1шт.

11

231-4117

LOCK NUT,7/16"-14, GB

7/16

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

4шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

5шт.

14

496-21094

WASHER,23.82mm ID x 44.45mm OD x 4.85mm Thk

1шт.

16

406800A1

CLAMP

2шт.

17

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

3/4 x 5-1/2; 8

2шт.

18

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

NUT 3/4; 8

2шт.

19

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

13/16 x 1-3/4 x 7/32

2шт.

22

1970102C1

TUBE

Tie Rod, Outer

1шт.

23

1970103C1

TUBE,1.062" ID, 1.625" OD, 33" Length

Tie Rod, Inner

2шт.

24

1968998C1

BALL JOINT

2шт.

25

1970391C1

JAM NUT

1-1/8 NF

2шт.

26

110373R1

DUST CAP

2шт.

27

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

28

432-816

COTTER PIN,1/8" x 1"

4шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

31

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

4шт.

32

1970104C1

SPACER

4шт.

33

232-4118

NUT,1/2"-13, GC

4шт.

34

1970101C1

CLAMP

4шт.

38

1970383C1

GUIDE

Hose

4шт.

39

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

39

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3/4 x 4-1/2

2шт.

40

87301494

FLANGE NUT,Flg, USR, 3/4"-10, G8

NUT 3/4; 8

4шт.

41

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Incl 42, 43

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

43

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

44

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 45, 46

2шт.

45

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

47

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Inc. 48

1шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 45, 51

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

51

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

52

398769A1

FLEXIBLE HOSE

1670 mm ( 65-3/4 in)

1шт.

53

398768A1

FLEXIBLE HOSE

1740 mm (68-1/2 in)

1шт.

54

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.
