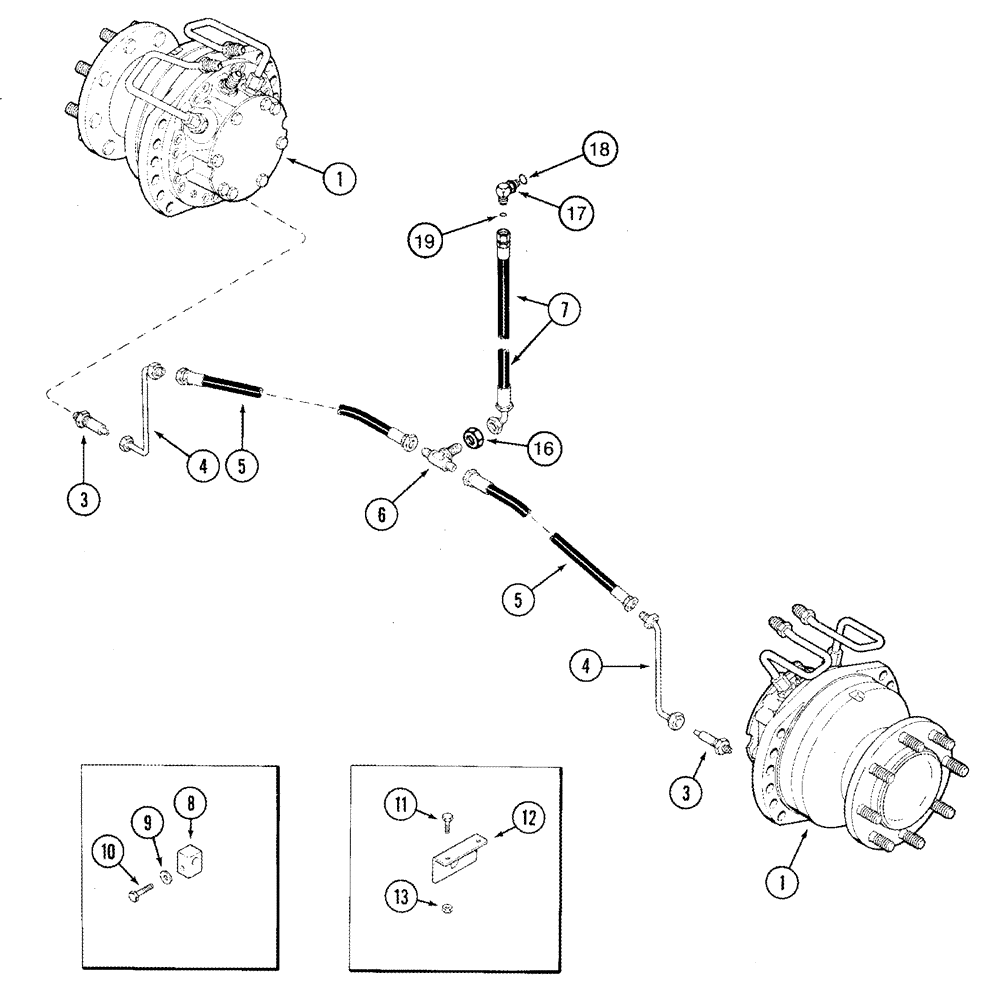

Запчасти Case IH 2377 (05-16) - HYDRAULICS - WHEEL MOTOR FLUSH - POWER GUIDE AXLE (04) - STEERING

1

87300716

MOTOR, HYDRAULIC

Wheel Drive, 8 Bolt, Inc. 3

2шт.

Note: Motors do not include pressure tubes as shown in the illustration. See Figure 05-13 for pressure tubes

1шт.

See Figure 05-14

1шт.

87300716R

REMAN-HYDROSTAT MOTO

2377 - CASE IH AXIAL-FLOW COMBINE BTW HAJ292001 & HAJ300000 - 11/04,

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

3

121434A1

ADAPTER

English Thread, Flush Port

2шт.

4

1346971C1

TUBE

Motor Flush

2шт.

5

1346969C1

HYDRAULIC HOSE,9.52 mm ID x 1803.40 mm

Motor Flush

2шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4 blkhd fl br x fl x fl

1шт.

7

129187A1

FLEXIBLE HOSE

3450 mm (135-7/8 in)

1шт.

8

1347182C1

CLAMP

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

12

1347068C1

SUPPORT

1шт.

13

232-4116

NUT,3/8"-16, GC

6шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

17

135485A1

ELBOW

Inc. 18, 19

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
