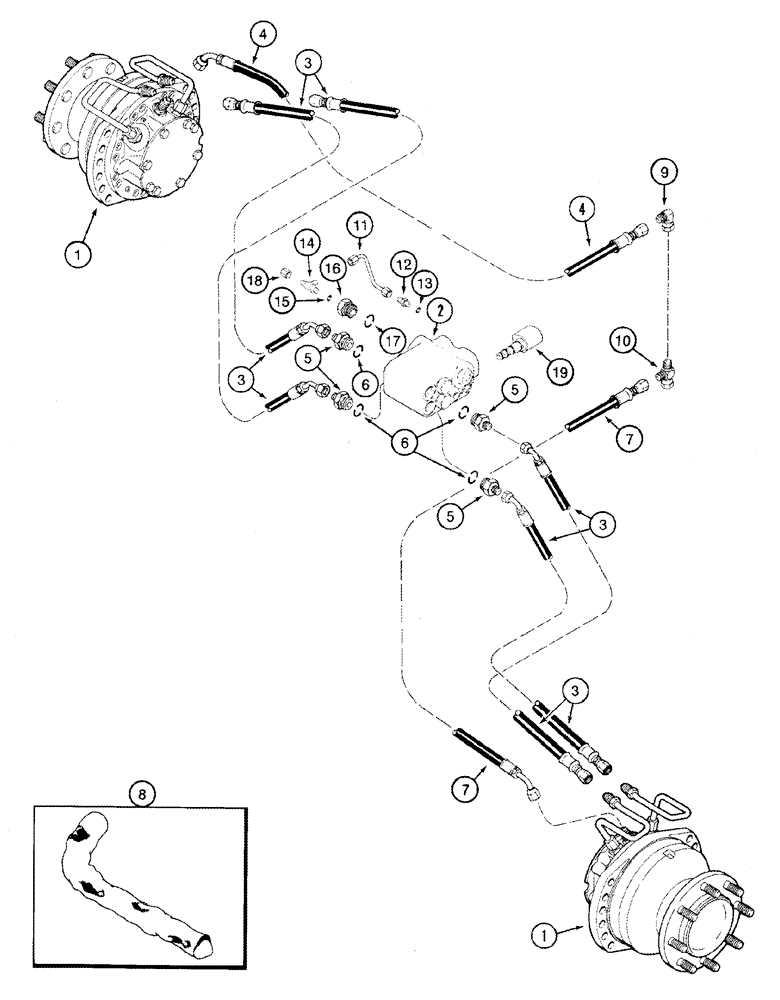

Запчасти Case IH 2377 (05-10) - HYDRAULICS - MOTOR, DRIVE - POWER GUIDE AXLE (04) - STEERING

1

87300716

MOTOR, HYDRAULIC

Wheel Drive, 8 Bolt

2шт.

See Figure 05-14

1шт.

Corn and Grain Combine

1шт.

2

1978000C1

VALVE

Wheel Drive

1шт.

See Figure 05-23

1шт.

Corn and Grain Combine

1шт.

3

1968995C1

FLEXIBLE HOSE,12.7mm ID x 1752.6mm L, SAE 100R10

1753 mm (69-1/8 in), Wheel Motor Drain Pressure

4шт.

4

1968996C1

FLEXIBLE HOSE

2007 mm (79-1/8 in), Wheel Motor Drain Pressure

1шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Incl. 6

4шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

1970135C1

HOSE

Drain

1шт.

8

1970108C1

PROTECTIVE COVER

Sleeve 60 ID x 1219 mm

2шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

11

1970140C1

TUBE,4.78 mm ID

Charge Pressure

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

14

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Inc. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

1970176C1

PLUG

Inc. 17, Inc. with 1978000C1, 1347194C1

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

218-752

CAP,37 Degree, 7/16"-20

1шт.

19

REF

INSTRUCTION

Solenoid Assy, Charge Pressure

1шт.

See Figure 05-23, REF 60-64

1шт.
