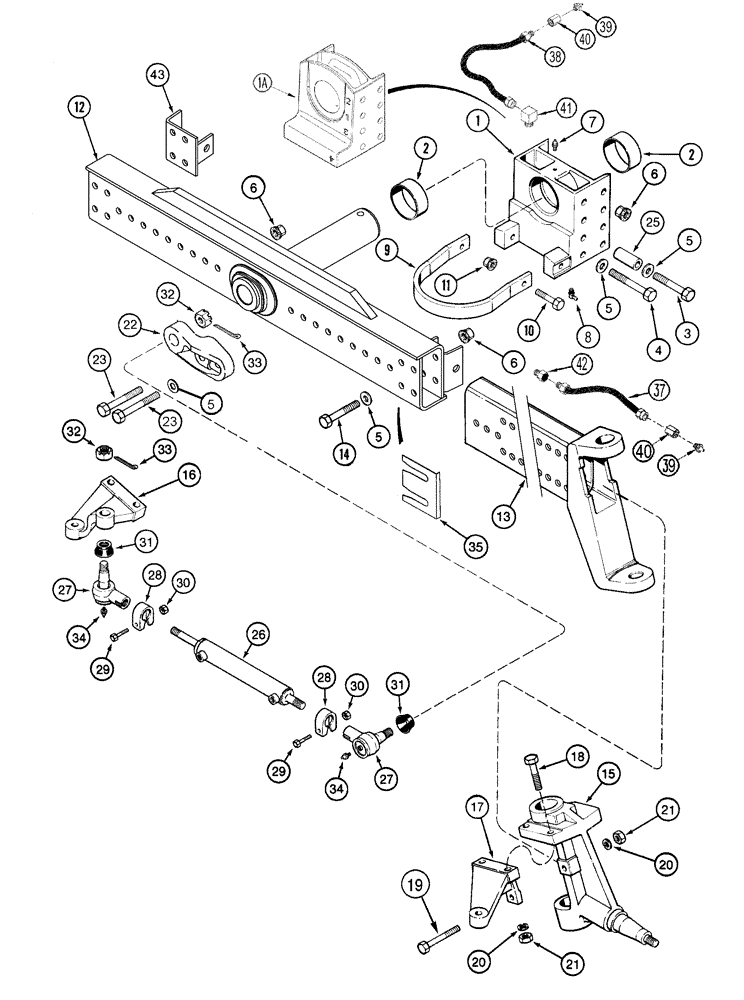

Запчасти Case IH 2377 (05-05) - AXLE, ADJUSTABLE STEERING, SINGLE CYLINDER (04) - STEERING

1

186599C94

SUPPORT

Axle Pivot, Inc. 2

1шт.

With Hillside Option

1шт.

1a

386235A2

SUPPORT

Inc. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

2шт.

3

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

3

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

4

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

3/4 x 5-1/2; 8

2шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

6

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

1302625C1

CHANNEL

Tow 249 mm Wide, 13 mm Drop

1шт.

Use with 186599C94

1шт.

10

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

Use with 186599C94

1шт.

11

87301493

SERRATED NUT,Flg, USR, 5/8"-11, G8

NUT 5/8; 8

2шт.

Use with 186599C94

1шт.

12

243747A2

AXLE

Adjustable, 92 - 120 in

1шт.

13

87526449

EXTENSION

LH

1шт.

13

87526450

EXTENSION

RH

1шт.

14

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

10шт.

15

REF

INSTRUCTION

Knuckle Assy, Left Hand

1шт.

See Figure 05-07

1шт.

15

REF

INSTRUCTION

Knuckle Assy, Right Hand

1шт.

See Figure 05-07

1шт.

16

358125A1

STEERING ARM

Left Hand, 7/8 in Stud Threads

1шт.

17

412305A1

STEERING ARM

Right Hand, 7/8 in Stud Threads

1шт.

18

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

19

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

20

492-11062

BEARING WASHER,5/8"

6шт.

21

429-1010

NUT,5/8"-11, G8

6шт.

22

316945A1

SUPPORT

Steering Cylinder

1шт.

23

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

3/4 x 5-3/4

2шт.

25

177748C1

SPACER

13/16 x 1-1/4 x 2-13/16

8шт.

26

1958024C1

STEERING CYLINDER

Steering

1шт.

See Figure 05-20

1шт.

87337226R

REMAN-HYD CYLINDER

2377 BTW HAJ292001&HAJ300000 ( 11/04 - ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

26

127913C93

STEERING CYLINDER

Steering

1шт.

See Figure 05-21

1шт.

27

437222A1

BALL JOINT

Inc. 28 - 34

2шт.

28

446308C91

CLAMP

Inc. 29, 30

1шт.

29

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

7/16 x 1-7/8

1шт.

30

231-4117

LOCK NUT,7/16"-14, GB

7/16

1шт.

31

87301009

BOOT

End

1шт.

32

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

35

236028A2

SHIM,127mm OD x 0.9mm Thk

Shim

1шт.

37

428853A1

FLEXIBLE HOSE

1282 mm (50 in)

1шт.

38

428285A1

FLEXIBLE HOSE

1129 mm (44 in)

1шт.

39

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

40

F53473

LOCK NUT,1/8-27 NPSM

1/8

2шт.

41

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4 x 1/8 NPTF

1шт.

42

219-418

ADAPTER,1/4"-1/8 NPTF

1/4 x 1/8 NPTF

1шт.

43

254425A1

SUPPORT

Axle Rod

2шт.
