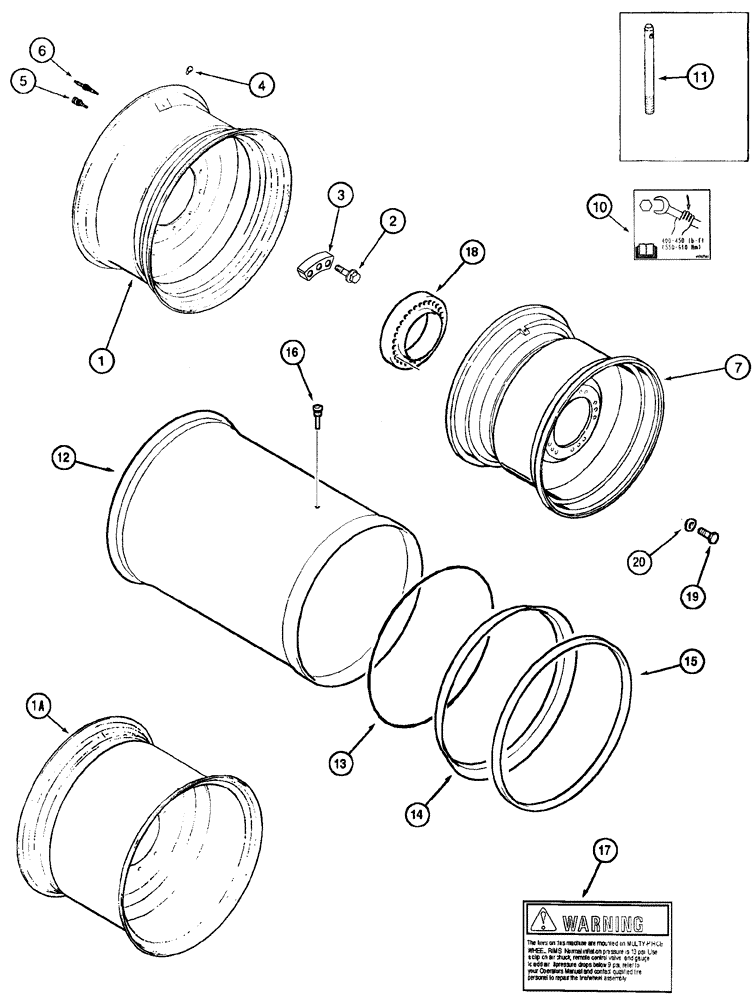

Запчасти Case IH 2377 (06-24) - WHEELS - DRIVE - SINGLE (03) - POWER TRAIN

1

184482C4

WHEEL

Used with Bias 24.5 x 32 Inch Tire

2шт.

With 10 Bolt Mounting

1шт.

1

87411121

WHEEL

HD, 24.5 x 32 Inch Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

184480C4

WHEEL

Used with Bias 30.5L x 32 Inch Tire

2шт.

With 10 Bolt Mounting

1шт.

1a

87406489

WHEEL

HD, 30.5LR32 Tire, 800/65 - R32 Tire, 900/60-R32 Tire

2шт.

With 10 Bolt Mounting

1шт.

2

427374A1

BOLT

20шт.

3

130871A3

SPACER

Wheel Mounting, 25 mm

20шт.

4

417194C1

PLUG

Used With Tubeless Tires, If Used

2шт.

4

359846A1

PLUG

Used With Tubeless Tires, If Used

2шт.

4

383697R1

PLUG

Used With Tube Type Tires

2шт.

5

179482C1

VALVE STEM

7/16 in dia, Used With Tubeless Tires

2шт.

6

407184R1

VALVE

Core, Used With Tubeless Tires

2шт.

7

132694A1

RIM

WHEEL 35.5L x 32 Inch Tube Type Tire

2шт.

10

403425A1

DECAL

Bolt Torque, Single Drive Wheel

2шт.

See Figure 09H-21

1шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Stud, Drive Wheel Starter

2шт.

12

237825A2

WHEEL

76 x 50.00, 16pr hf3 Hi-Flotation Tire

2шт.

13

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

2шт.

14

237824A1

BACK-UP RING

Side Wheel

2шт.

15

184472C1

RING

Lock

2шт.

16

1984006C2

VALVE STEM

Used With Tubeless Tires

2шт.

17

301049A1

WARNING DECAL

Multi Piece Rims

4шт.

See Figure 09H-19 REF 15

1шт.

18

87342973

SPACER

76 mm

2шт.

19

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

M20 x 125; 10.9

20шт.

20

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm

20шт.
