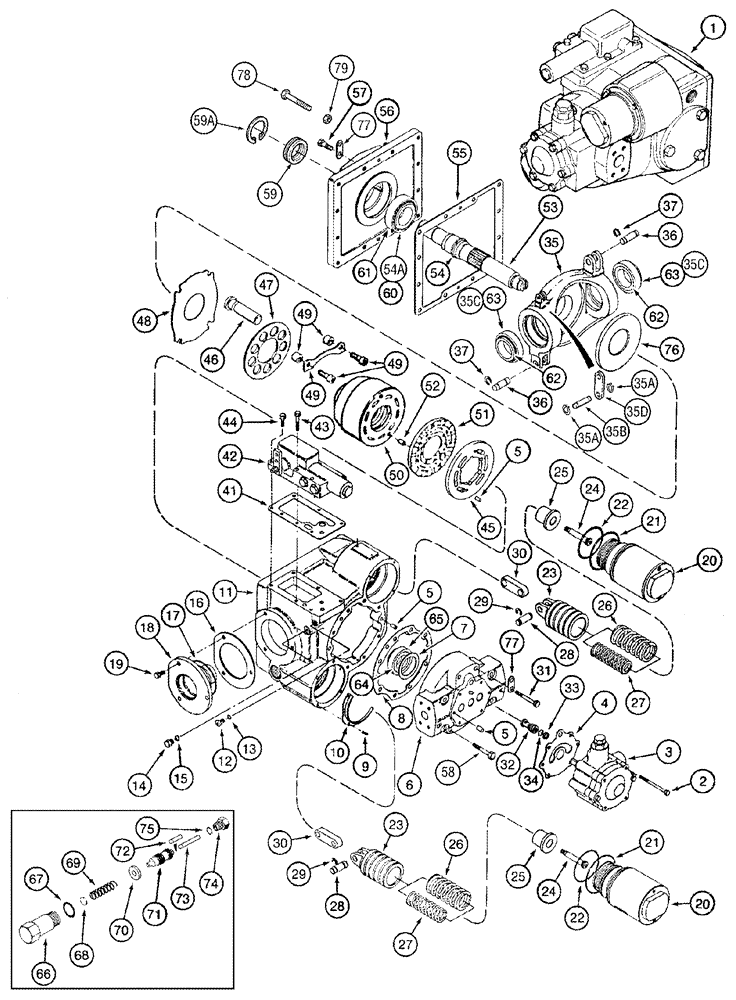

Запчасти Case IH 2366 (06-10) - PUMP ASSY - HYDROSTATIC - CORN AND GRAIN COMBINE ASN JJC0254033 - RICE COMBINE ASN JJC0254130 (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
400478A1
HYDROSTATIC PUMP
Hydrostatic, Inc. 2 - 79, See Figure(s) 06-03, 06-04
1шт.
Corn and Grain Combine
1шт.
1
87637528R
REMAN-HYDROSTAT PUMP
Corn and Grain Combine
1шт.
1
87637528C
CORE-HYDROSTAT PUMP
Return Part Number
1шт.
1
400479A1
HYDROSTATIC PUMP
Hydrostatic, Inc. 2 - 79, See Figure 06-04
1шт.
Rice Combine
1шт.
1
87637529R
REMAN-HYDROSTAT PUMP
Rice Combine
1шт.
1
87637529C
CORE-HYDROSTAT PUMP
Return Part Number
1шт.
2
413-560
BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5
1шт.
Corn and Grain Combine
1шт.
2
413-564
BOLT,Hex, 5/16" - 18 x 4", Gr 5
5/16 x 4
4шт.
Rice Combine
1шт.
3
92740C2
PUMP
Charge, See Figure 06-12
1шт.
Corn and Grain Combine
1шт.
3
107593A2
PUMP
Charge, See Figure 06-13
1шт.
Rice Combine
1шт.
5
37-1510
DOWEL,5/16" x 5/8"
5шт.
6
NSS
NOT SOLD SEPARAT
COVER End
1шт.
142398C91
SHIM KIT
end cover, Inc. 7
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.003 in.
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.005 in.
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.010 in.
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.015 in.
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.020 in.
1шт.
7
NSS
NOT SOLD SEPARAT
SHIM, 0.030 in.
1шт.
8
92741C2
GASKET,0.38mm Thk
1шт.
9
461-3086
HEX SOC SCREW,#8 - 32 x 3/8"
No. 8 x 3/8
6шт.
10
142408C1
RETAINER
Servo Piston
2шт.
11
NSS
NOT SOLD SEPARAT
HOUSING Pump
1шт.
12
278548
PLUG,Hex, 7/16"-20 ORB
Incl 13
1шт.
13
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
14
9672438
PLUG,7/16" - 20 ORB
Incl. 15
1шт.
15
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
142386C91
SHIM KIT
Trunnion Bearing, Inc. 16
1шт.
16
NSS
NOT SOLD SEPARAT
SHIM, 0.002 in.
6шт.
16
NSS
NOT SOLD SEPARAT
SHIM, 0.005 in.
4шт.
16
NSS
NOT SOLD SEPARAT
SHIM, 0.010 in.
4шт.
16
NSS
NOT SOLD SEPARAT
SHIM, 0.015 in.
4шт.
16
NSS
NOT SOLD SEPARAT
SHIM, 0.025 in.
4шт.
18
NSS
NOT SOLD SEPARAT
PUMP Trunnion
2шт.
19
413-714
BOLT,Hex, 7/16" - 14 x 7/8", Gr 5
7/16 x 7/8
6шт.
20
NSS
NOT SOLD SEPARAT
SLEEVE ASSY., Servo
2шт.
23
NSS
NOT SOLD SEPARAT
PISTON ASSY., Servo
2шт.
24
NSS
NOT SOLD SEPARAT
SCREW
1шт.
25
NSS
NOT SOLD SEPARAT
RETAINER
1шт.
26
NSS
NOT SOLD SEPARAT
SPRING
1шт.
27
NSS
NOT SOLD SEPARAT
SPRING
1шт.
28
NSS
NOT SOLD SEPARAT
PIN
1шт.
29
100-1375
SNAP RING,#75, Ext
2шт.
30
NSS
NOT SOLD SEPARAT
LINK
1шт.
31
413-748
BOLT,Hex, 7/16" - 14 x 3", Gr 5
7/16 x 3
6шт.
34
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
35
NSS
NOT SOLD SEPARAT
PLATE Swash
1шт.
35a
100-1125
SNAP RING,#25, Ext
2шт.
35b
140765C1
PIN
1шт.
35c
NSS
NOT SOLD SEPARAT
BEARING Cup
2шт.
35d
NSS
NOT SOLD SEPARAT
LINK
1шт.
36
140766C1
PIN,14.22mm OD x 39.12mm L
2шт.
37
100-1356
SNAP RING,#56, Ext
4шт.
41
133756C1
GASKET
1шт.
42
191065A1
CONTROL VALVE
Hydrostatic Pump, See Figure 06-11
1шт.
43
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
44
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
45
NSS
NOT SOLD SEPARAT
PLATE Valve
1шт.
46
NSS
NOT SOLD SEPARAT
PISTON
9шт.
47
NSS
NOT SOLD SEPARAT
PLATE
1шт.
48
NSS
NOT SOLD SEPARAT
PLATE
1шт.
49
NSS
NOT SOLD SEPARAT
KIT
1шт.
50
NSS
NOT SOLD SEPARAT
BARREL
1шт.
51
NSS
NOT SOLD SEPARAT
PLATE
1шт.
52
37-1510
DOWEL,5/16" x 5/8"
7шт.
53
403149A1
SHAFT
105.4 cc, Inc. 54, 54A
1шт.
54
NSS
NOT SOLD SEPARAT
RING Retaining
1шт.
54a
NSS
NOT SOLD SEPARAT
CONE Bearing
1шт.
55
142399C1
GASKET
1шт.
56
NSS
NOT SOLD SEPARAT
FLANGE Mounting
1шт.
57
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
12шт.
58
426-732
BOLT,Hex, 7/16" - 14 x 2", Gr 8
7/16 x 2; 8
2шт.
59
403145A1
SEAL
Shaft
1шт.
59a
100-21250
SNAP RING,2.50", Int, #250
1шт.
60
56694H
BEARING ASSY,50.8mm ID x 30.3mm W
1шт.
61
ST863
BEARING CUP,93.22mm OD x 23.81mm W
1шт.
62
NSS
NOT SOLD SEPARAT
CONE Bearing
2шт.
63
NSS
NOT SOLD SEPARAT
CUP Bearing
2шт.
64
400983R91
ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"
1-3/16 ID
1шт.
65
530741R1
BEARING CUP
2-17/32 OD
1шт.
1986739C1
REPAIR KIT
Spool, Internal Pressure Override, Inc. 66 - 75
1шт.
Rice Combine
1шт.
66
NSS
NOT SOLD SEPARAT
BODY
1шт.
67
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
68
235419A1
SHIM KIT
KIT
1шт.
69
NSS
NOT SOLD SEPARAT
SPRING
1шт.
70
NSS
NOT SOLD SEPARAT
SPACER
1шт.
71
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
72
NSS
NOT SOLD SEPARAT
ROLLER
1шт.
73
NSS
NOT SOLD SEPARAT
ROLLER
1шт.
74
218-5151
PLUG,Hex Hd, 5/16"-24 ORB
Inc. 75
1шт.
75
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
76
NSS
NOT SOLD SEPARAT
PLATE, Thrust
1шт.
77
NSS
NOT SOLD SEPARAT
STRAP, Shipping, Shown For Reference Only
2шт.
78
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
4шт.
79
329-288
FLANGE NUT,Flg, 1/2"-13, G8
4шт.
Выбрано товаров: 108
