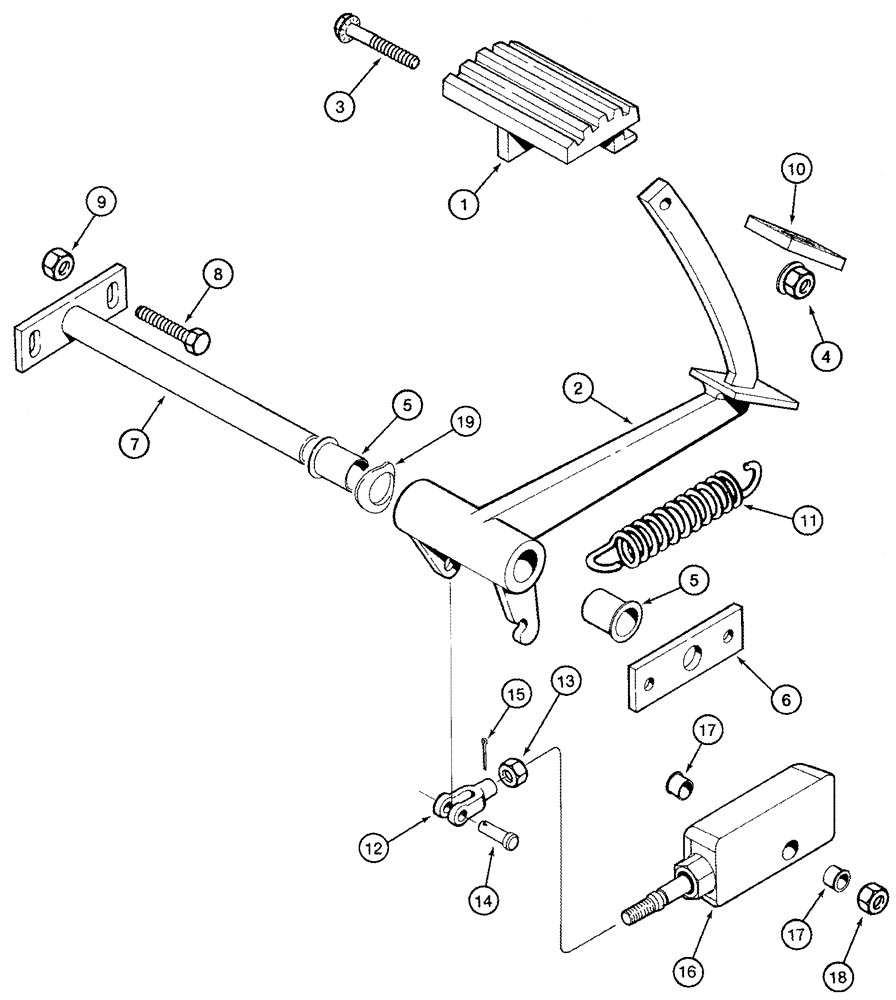

Запчасти Case IH 2366 (06-05) - PEDAL - FOOT-N-INCH (03) - POWER TRAIN

1

119902A1

PAD

1шт.

2

119901A3

PEDAL

Foot-N-Inch

1шт.

3

905-10035

BOLT,Hex Flg, M10 x 35mm

1шт.

4

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

5

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

Used As A Spacer

2шт.

6

1281794C1

PLATE

1шт.

7

120160A2

SHAFT

1шт.

8

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

120159A1

FOAM INSULATION

1шт.

11

182652A1

SPRING

27.9 OD x 122 mm

1шт.

12

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

13

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

14

327-5094

CLEVIS PIN,5/16" x .940"

5/16 x 15/16

1шт.

15

432-612

COTTER PIN,3/32" x 3/4"

1шт.

16

REF

INSTRUCTION

VALVE Control, 6500 PSI, Foot-N-Inch, See Figure 06-07

1шт.

17

19-6263

NYLON BEARING,0.38" ID x 0.59" OD x 0.38"

Valve Pivot

2шт.

18

425-166

NUT,3/8"-16, G5, Hvy

3/8

1шт.

19

G49413

WASHER

1шт.
