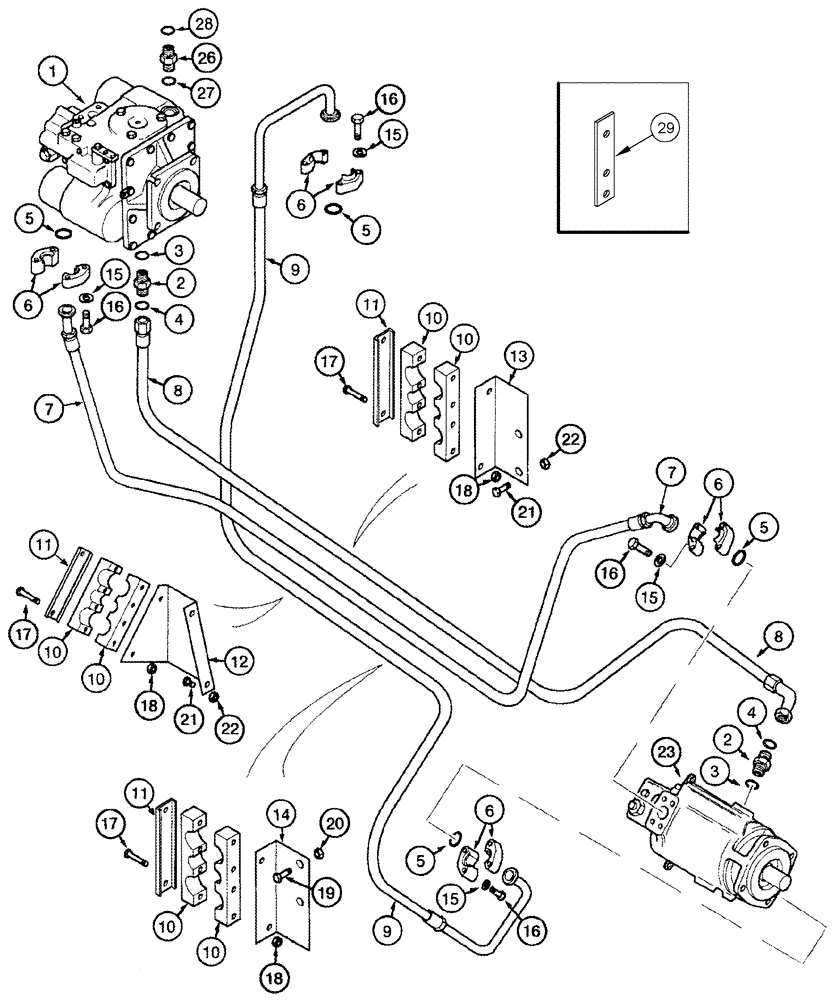

Запчасти Case IH 2366 (06-03) - HYDROSTATICS - PUMP AND SINGLE SPEED MOTOR - CORN AND GRAIN COMBINE (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

HYDROSTATIC PUMP See Figure 06-09, Serial Range: -JJC0254032

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2366 (1/98-8/04), Serial Range: -JJC0254032. Reman for New P/N 1343716C4

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

400478A1

HYDROSTATIC PUMP

Hydrostatic, See Figure 06-10, Start Serial: JJC0254033

1шт.

1

87637528R

REMAN-HYDROSTAT PUMP

2366 (1/98-8/04), Start Serial: JJC0254033. Reman for New P/N 400478A1

1шт.

1

87637528C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 3, 4

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

Split, 1 in.

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

Forward, Pump To Motor, 3455 mm (136 in)

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

Drain, Pump To Motor, 3705 mm (145-7/8 in)

1шт.

9

227641A2

HOSE

Reverse, Pump To Motor, 4055 mm (159-5/8 in)

1шт.

10

221145A1

CLAMP

Two Piece

3шт.

11

224303A1

GUIDE

Clamp Backup, 1-5/16 ID x 1/8 in. Wide

3шт.

12

1979941C1

SUPPORT

Hydrostatic Tube, Rear

1шт.

13

224302A2

SUPPORT

Hose Clamp, Middle

1шт.

14

224301A2

SUPPORT

Hose Clamp, Front

1шт.

15

492-11044

LOCK WASHER,7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

22

231-5146

FLANGE NUT,3/8"-16

6шт.

23

183296A2

MOTOR, HYDRAULIC

Hydrostatic, See Figure 06-14, Serial Range: -JJC0254038

1шт.

23

183296A2R

REMAN-HYD MOTOR

2366 CASE IH AXIAL-FLOW COMBINE (NA), Hydrostatic, Serial Range: -JJC0254038 (1/98-8/04), Serial Range: -JJC0254038

1шт.

23

183296A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

23

400475A1

MOTOR, HYDRAULIC

Hydrostatic, See Figure 06-15, Serial Range: JJC0254039-JJC0256399

1шт.

23

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A1, Serial Range: JJC0254039-JJC0256399

1шт.

23

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

23

400475A2

HYDROSTATIC MOTOR,89.13CC

See Figure 06-15, Start Serial: JJC0256400

1шт.

23

400475A2R

REMAN-HYD MOTOR

Reman For New PN 400475A2, Start Serial: JJC0256400

1шт.

23

400475A2C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-Type, Used To Separate Reverse Hydrostatic and Case Drain Hoses, Not Illustrated

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-Type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, Not Illustrated

1шт.

26

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

427273A1

SUPPORT

Hose Clamp

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
