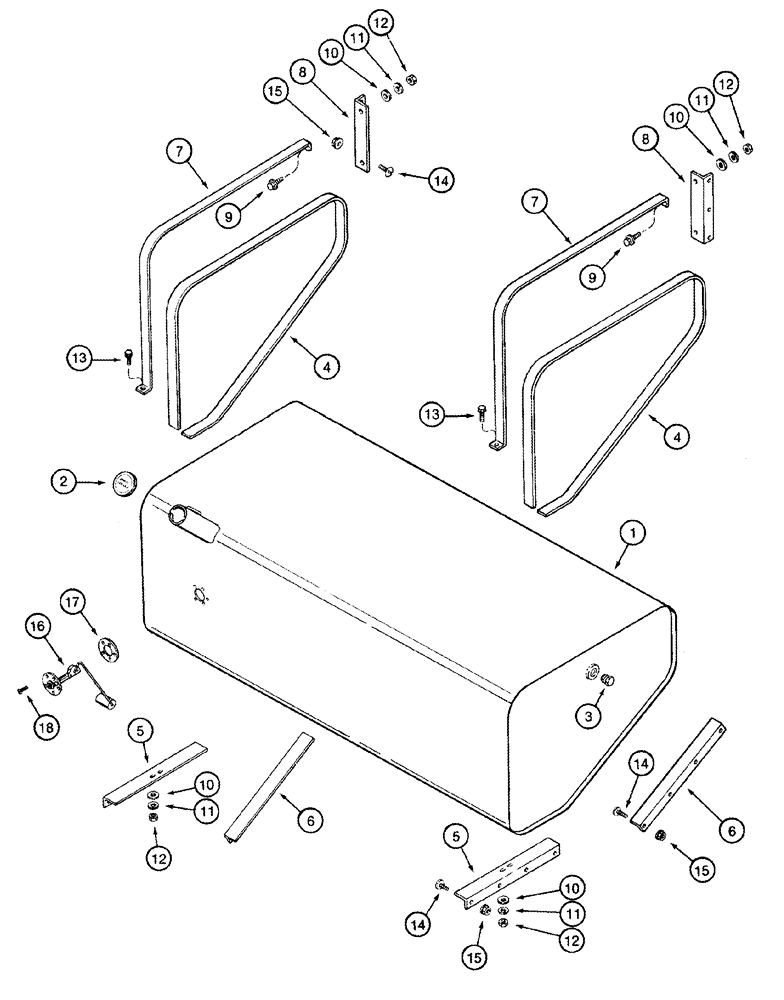

Запчасти Case IH 2366 (03-08) - FUEL TANK - SUPPORTS - BSN JJC0254999 (02) - FUEL SYSTEM

1

197681A2

FUEL TANK

Includes: Ref. 2

1шт.

2

104781C1

CAP

1шт.

3

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

1шт.

4

1308798C1

STRIP

1829 mm (72 in.), Cut From 990541R1

2шт.

5

192381C3

SUPPORT

Lower

2шт.

6

1302029C1

SUPPORT

Front

2шт.

7

1302031C1

STRAP

2шт.

8

1302030C1

ANGLE

2шт.

9

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

2шт.

10

495-81112

WASHER,.344" x 3/4" x .120"

11/32 x 3/4 x 7/64

4шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

425-105

NUT,5/16"-18, G5

4шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

22шт.

14

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

16

198024C1

FUEL GAUGE

Fuel Level

1шт.

17

168515C1

GASKET,3.05mm Thk

1шт.

18

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

5шт.
