Запчасти Case IH 2366 (03-07[01]) - FUEL, RETURN - BSN JJC0254999 (02) - FUEL SYSTEM

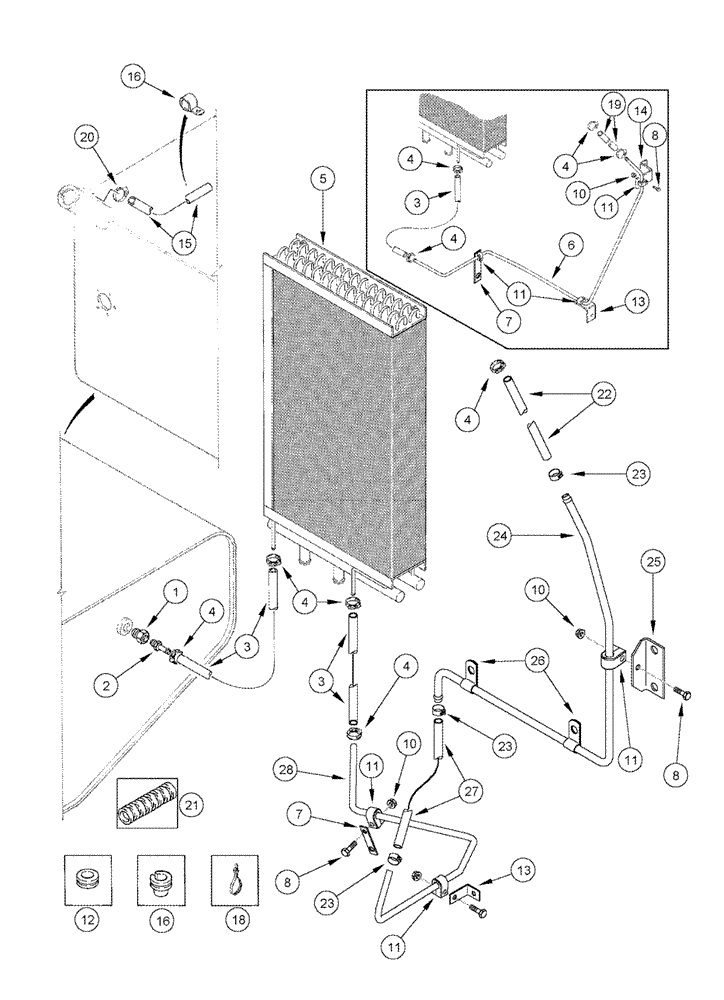

Схема запчастей Case IH 2366 - (03-07[01]) - FUEL, RETURN - BSN JJC0254999 (02) - FUEL SYSTEM
19
8
4
11
16
23
7
26
23
4
8
21
11
10
3
4
6
13
8
22
4
27
10
24
28
23
4
1
15
7
11
18
3
4
25
11
10
13
12
4
3
14
2
11
20
16
5

Артикул

Название

Примечание

Количество

1

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.

2

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

3

193624A2

FUEL HOSE,9.53 mm ID x 770.00 mm, SAE 30R2

2шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

5

195441A3

COOLER

For Mounting, See Figure 08-07

1шт.

6

198136A2

FUEL TUBE

No Longer Available, Order: 406293A2, Serial Range: -JJC0253451

1шт.

7

1330564C1

PLATE

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

236558A1

CLAMP

3шт.

12

248-2117

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

13

178950C1

ANGLE

1шт.

14

121525A1

SUPPORT

1шт.

15

1251794C1

FUEL TUBE,2946.40 mm, SAE J844C

Cut From Bulk Tube

1шт.

16

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3шт.

17

195803C1

GROMMET

1шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in., Replaces L18337

1шт.

19

1979437C1

FUEL HOSE,9.53 mm ID x 330.00 mm, SAE 30R2 Type 1 Class 1, SAE 100R6 Class 14

Cut From 364357C1

1шт.

20

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

21

375918A1

CONDUIT

Fuel Return

1шт.

22

390653A1

FUEL HOSE,9.53 mm ID x 191.00 mm

Cut from S118400, Start Serial: JJC0253452

1шт.

23

1348264C1

HOSE CLAMP

3/8 ID JJC0253452 to

3шт.

24

384824A1

FUEL TUBE,0.375" OD, 423.6, 312.4 mm Length

JJC0253452 to

1шт.

25

409390A1

BRACKET

JJC0253452 to

1шт.

26

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

JJC0253452 to

3шт.

27

385579A1

HOSE

152 mm (6 in.), Cut From S118400, Start Serial: JJC0253452

1шт.

28

390576A1

FUEL TUBE

JJC0253452 to

1шт.

406293A2

KIT

Includes: 21, 22, 23, 26, 27, & 28

1шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

Выбрано товаров: 28
