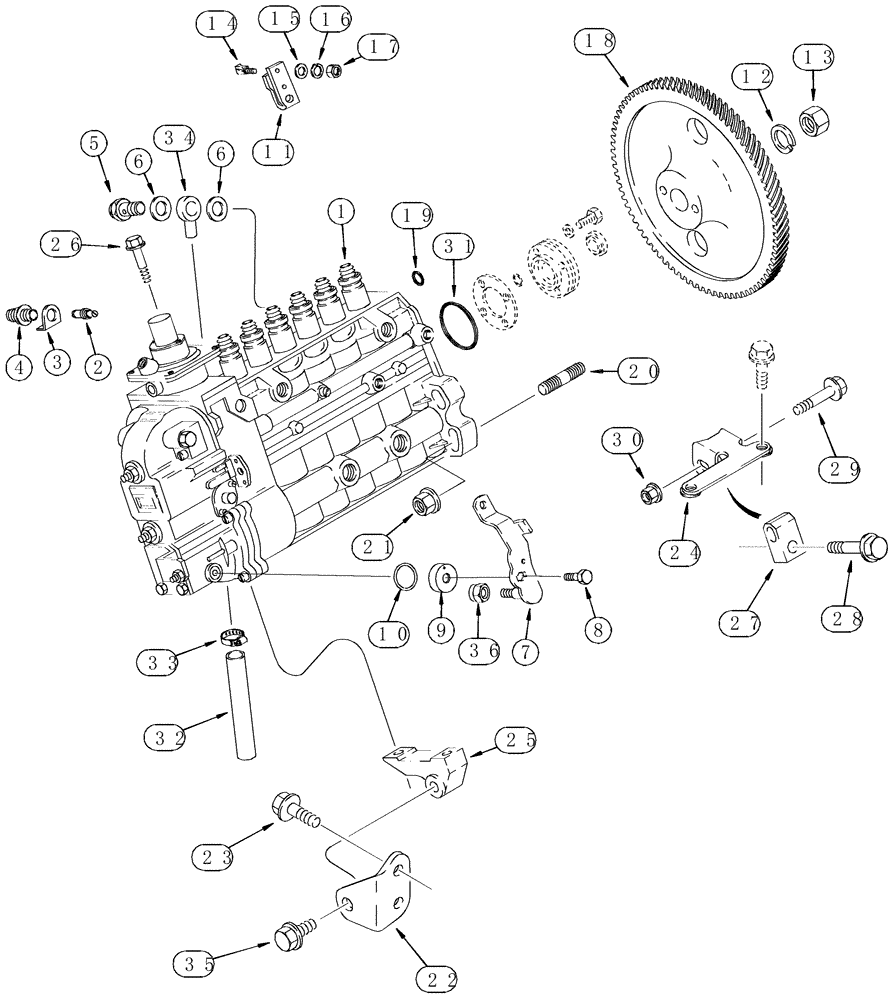

Запчасти Case IH 2366 (03-04) - FUEL INJECTION - PUMP AND DRIVE (02) - FUEL SYSTEM

1

J930453

PUMP, FUEL INJECTION

PUMP, INJECTION New, Inc. 2 - 17, No Longer Available, Order J935478, J935073

1шт.

1

JR930453

REMAN-INJECTION PUMP

Remanufactured, No Longer Available, Order JR935478

1шт.

1

JC930453

CORE-INJECTION PUMP

Return Part Number

1шт.

1

J935478

PUMP, FUEL INJECTION

PUMP, INJECTION New, Inc. 2 - 17, Serial Range: -JJC0255699

1шт.

1

JR935478

REMAN-INJECTION PUMP

Remanufactured Pump Assy, Serial Range: -JJC0255699

1шт.

1

JC935106

CORE-INJECTION PUMP

Return Part Number

1шт.

1

87402490

PUMP, FUEL INJECTION

PUMP, INJECTION New, Inc. 2 - 17, 37, Start Serial: JJC0255700

1шт.

1

87402491

REMAN-INJECTION PUMP

Remanufactured, Start Serial: JJC0255700

1шт.

1

87402492

CORE-INJECTION PUMP

Return Part Number

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Part Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

Timing

1шт.

5

J912886

VALVE

No Longer Used, Order 87409051

1шт.

5

J932096

VALVE

Replaced J912886, No Longer Available, Order 87409051

1шт.

5

87409051

VALVE

Overflow, Replaces J932096

1шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

6

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

M14, Used With 87409051

2шт.

7

J929322

LEVER

1шт.

8

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

9

691292C1

RETAINER

1шт.

10

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

11

1808728C1

LEVER

1шт.

12

J912897

LOCK WASHER

1шт.

12

J920922

LOCK WASHER

Used With 87409051

1шт.

13

J912896

LOCK NUT

1шт.

13

J920921

NUT

M20, Used With 87409051

1шт.

14

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

829-1306

NUT,M6, Cl 10

1шт.

18

J931380

GEAR

Drive

1шт.

19

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

20

86991263

STUD,M10 x 1.5 x 55

(2-5/32")

4шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

22

J938091

SUPPORT

1шт.

23

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

24

J921357

HOLDER

1шт.

25

J926273

SUPPORT

1шт.

26

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

27

J926781

SUPPORT

1шт.

28

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

Replaces 844-10040

1шт.

29

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

30

J900589

NUT

M8

1шт.

31

J924605

SEAL

1шт.

32

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

33

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

34

J935740

BANJO BOLT

30 Degree

1шт.

35

854-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 10.9

1шт.

36

J930683

LOCK NUT

1шт.

37

J912890

SPRING

Shut Off, Not Illustrated

1шт.
