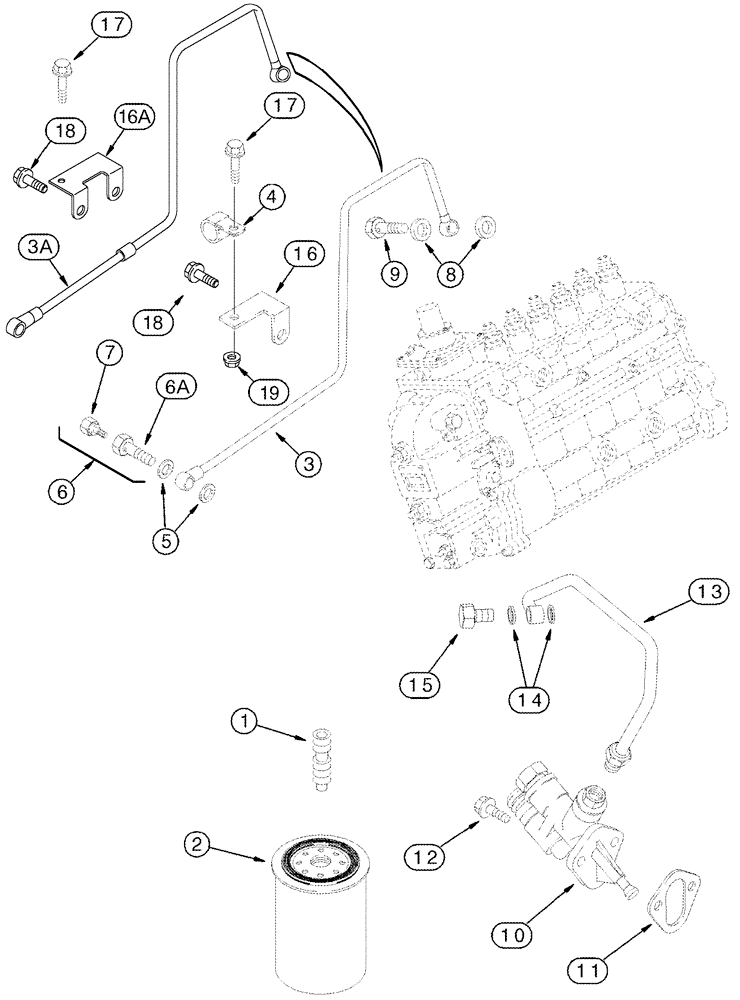

Запчасти Case IH 2366 (03-03) - FUEL FILTER - PUMP, TRANSFER (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J931063

FUEL FILTER

Replaces: J903640

1шт.

3

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

, Serial Range: -JJC0255699

1шт.

3a

87411149

TUBE

Fuel Supply, Combination Flexible JJC0255700 to Eng. 46348831

1шт.

3a

87436149

FUEL TUBE,479.8, 94.1 mm L

Fuel Supply, Combination Flexible Hose and Rigid Tube Eng., Start Serial: 46348832

1шт.

4

J914711

CLIP

CLEVIS, Serial Range: -JJC0255699

1шт.

4

87411159

SUPPORT

, Start Serial: JJC0255700

1шт.

5

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Replaces: J935172

2шт.

6

J905860

BANJO BOLT

Inc. 6, 7

1шт.

6a

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

7

J939570

BLEED SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

Replaces J905403

1шт.

8

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

2шт.

9

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

10

J936317

PUMP

, Serial Range: -JJC0255699

1шт.

10

J936316

FUEL PUMP

, Start Serial: JJC0255700

1шт.

11

J939258

GASKET,1.21mm Thk

Replaces: J931059

1шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

, Serial Range: -JJC0255699

2шт.

12

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

, Start Serial: JJC0255700

2шт.

13

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

1шт.

14

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12 mm, Replaces: J935171

2шт.

15

J916361

BANJO BOLT

M12 x 24

1шт.

16

J930375

BRACKET

Used with Ref. 3

1шт.

16a

87436150

BRACKET

Used with Ref. 3A

1шт.

17

283264A1

BOLT

M8 x 14; 10.9

1шт.

18

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

19

825-1408

NUT,M8, Cl 8

1шт.
