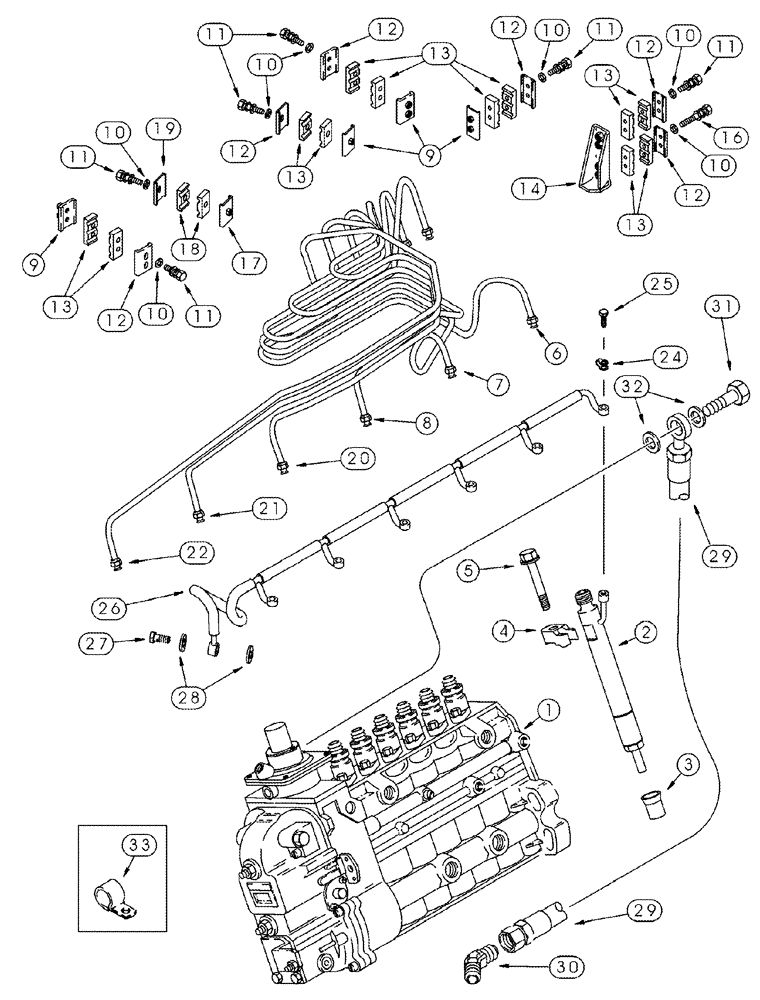

Запчасти Case IH 2366 (03-01[01]) - FUEL INJECTION SYSTEM - BSN JJC0255700 (02) - FUEL SYSTEM

1

J930453

PUMP, FUEL INJECTION

PUMP, INJECTION No Longer Available, Order: J935478 & J935073, See Figure 03-04, Serial Range: -JJC0252059

1шт.

1

J935478

PUMP, FUEL INJECTION

PUMP, INJECTION See Figure 3-04, Start Serial: JJC0252060

1шт.

1

JR935478

REMAN-INJECTION PUMP

1шт.

1

JC935106

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSY., See Figure 03-05

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

J922018

FLANGE BOLT

M8 x 80; 12

6шт.

6

J930355

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

1шт.

6

J935074

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

Has 14mm end nuts

1шт.

7

J930356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

1шт.

7

J935076

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

Has 14mm end nuts

1шт.

8

J930357

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

1шт.

This Tube Has Two Different Sized Nuts On Injector Line. If Looking For A Line With 14 M Nuts On Both Ends, Use Part Number J935078.

1шт.

8

J935078

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

On Injector Line With 14M Nuts On Both Ends

1шт.

9

J917716

BRACE

3шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

12шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

5шт.

13

J917747

CLAMP

10шт.

14

J917776

BRACE

1шт.

16

J920855

CAPTIVE WASHER SCREW

M5 x 35

2шт.

17

J917717

BRACE

2шт.

18

J917746

CLAMP

4шт.

19

CURJ904711

CLAMP

2шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

M12 Nut

1шт.

20

J935080

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

M14 Nut

1шт.

21

J935082

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

M14 Nut

1шт.

21

J930359

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

M14 Nut

1шт.

22

J930360

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

1шт.

This Tube Has Two Different Sized Nuts On Injector Line. If Looking For A Line With 14 M Nuts On Both Ends, Use Part Number J935084.

1шт.

24

J903380

SEAL

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

26

J920595

TUBE ASSY.

1шт.

27

J924726

BANJO BOLT

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

29

J916779

FUEL HOSE,508.00 mm

1шт.

30

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

7/16 fl x 1/8 PT

1шт.

31

J918002

BANJO BOLT

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15.5 x 1 mm

2шт.

33

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.
