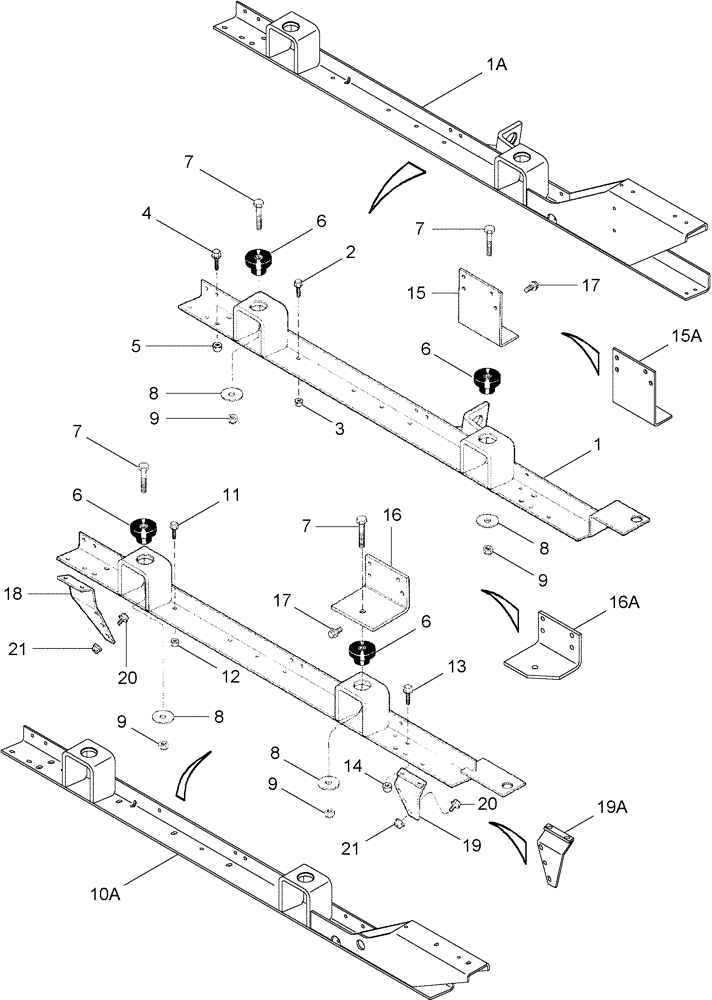

Запчасти Case IH 2366 (02-30) - MOUNTING, ENGINE (01) - ENGINE

1

195113A1

RAIL

Left Hand, Serial Range: -JJC0255699

1шт.

1a

87416103

RAIL ASSY.

LH, Start Serial: JJC0255700

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

Front and Rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

107813R1

WASHER

21/32 x 2-1/2 x 11/64

4шт.

9

231-41110

LOCK NUT,5/8"-11, GB

4шт.

10

195116A4

RAIL

Right Hand, Serial Range: -JJC0255699

1шт.

10a

87416054

RAIL ASSY.

Right Hand, Start Serial: JJC0255700

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

1315644C1

SUPPORT

LH Front, Serial Range: -JJC0255699

1шт.

15a

400753A1

BRACKET

LH Front, Start Serial: JJC0255700

1шт.

16

1315645C1

SUPPORT

RH Front, Serial Range: -JJC0255699

1шт.

16a

400752A1

BRACKET

RH Front, Start Serial: JJC0255700

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

6шт.

18

1330098C2

SUPPORT

Right Hand Rear

1шт.

19

1330099C2

SUPPORT

RH Front, Serial Range: -JJC0255699

1шт.

19a

87416055

SUPPORT

RH Front, Start Serial: JJC0255700

1шт.

21

231-5146

FLANGE NUT,3/8"-16

10шт.

22

L116914

GROMMET

1шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

10шт.
