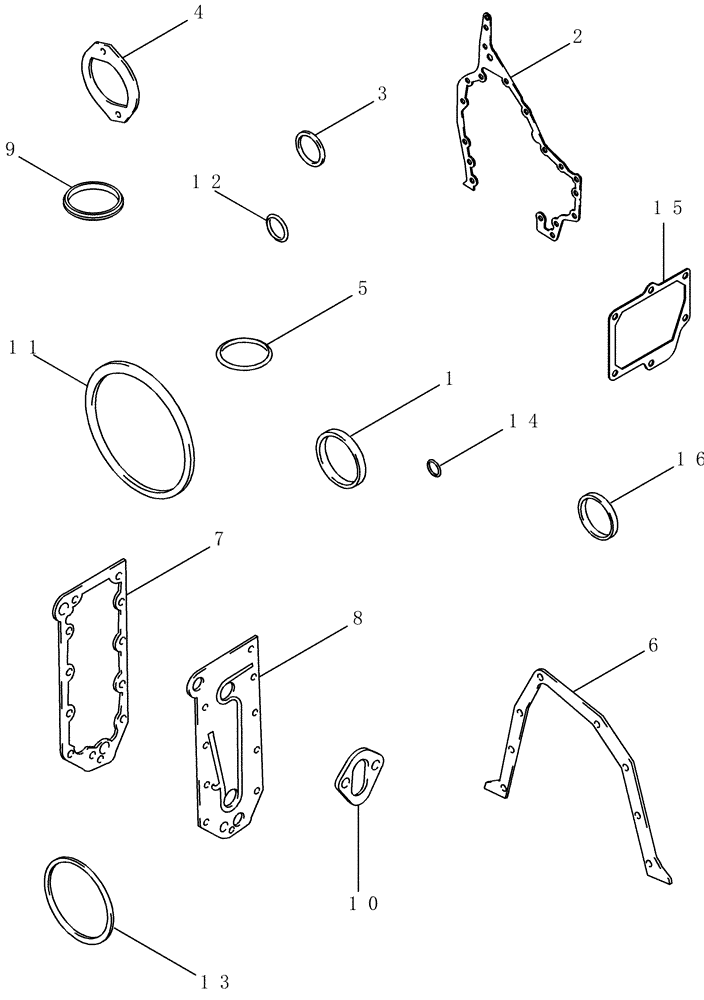

Запчасти Case IH 2366 (02-29) - GASKET KIT - CYLINDER BLOCK (01) - ENGINE

A77855

KIT

Cylinder Block, Inc. 1 -16, Serial Range: -JJC0255699

1шт.

87416435

GASKET KIT

Cylinder Block, 6TAA-830, Tier 2 Engines, Inc. 1 - 16, Start Serial: JJC0255700

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Front Cover

1шт.

2

J938737

GASKET

Gear Housing, Replaces J929253, Serial Range: -JJC0255699

1шт.

2

J944293

GASKET,1.01mm Thk

Gear Housing, Shown, Start Serial: JJC0255700

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Timing Pin Housing

1шт.

4

J938655

GASKET,1.27mm Thk

Hydaulic Pump

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

Water Pump to Block, Serial Range: -JJC0255699

1шт.

5

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

, Start Serial: JJC0255700

1шт.

6

J914301

GASKET

Rear Cover

1шт.

7

J918174

GASKET,0.71mm Thk

Oil Cooler

1шт.

8

J929011

GASKET,1.19mm Thk

Oil Cooler Cover, Serial Range: -JJC0255699

1шт.

8

J4063496

GASKET,0.8mm Thk

Oil Cooler Cover, Start Serial: JJC0255700

1шт.

9

J901798

SEALING WASHER

Lube Oil Cooler, Serial Range: -JJC0255699

1шт.

9

J924605

SEAL

Seal, Injection Pump to Gear Housing, Start Serial: JJC0255700

1шт.

10

J939258

GASKET,1.21mm Thk

Replaces: J931348

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rear Seal Cover

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Barring Hole Plug

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

, Serial Range: Sleeve-Block

6шт.

14

J913994

O-RING

Timing Pin, Serial Range: -JJC0255699

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, Start Serial: JJC0255700

1шт.

15

J916284

O-RING

Lube Oil Supply, Serial Range: -JJC0255699

1шт.

15

87436828

GASKET

Breather, Shown, Start Serial: JJC0255700

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Lube Oil Supply

1шт.
