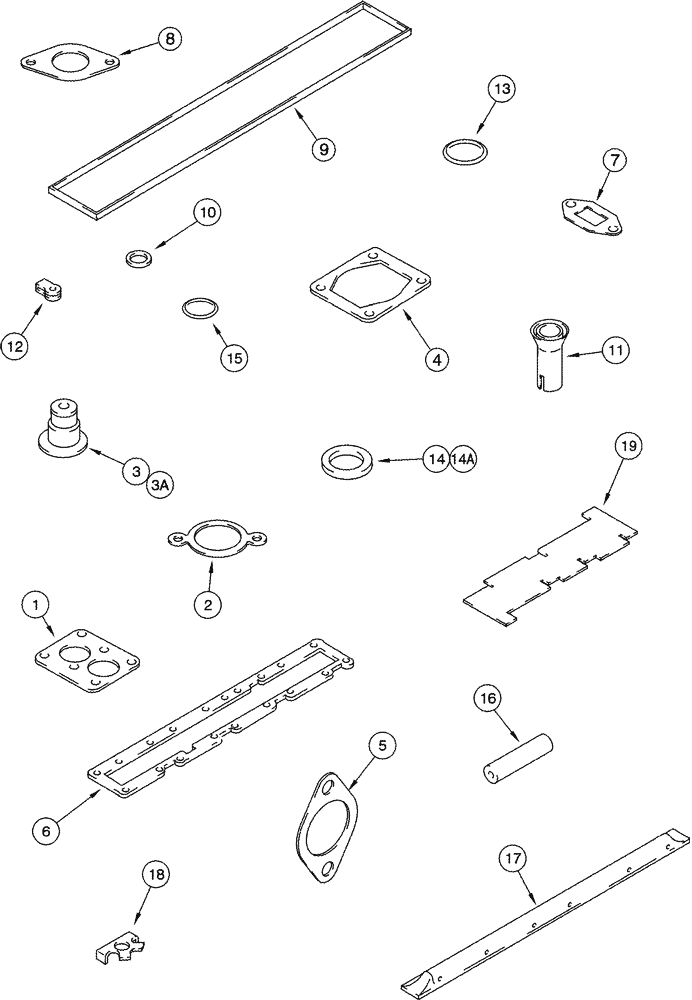

Запчасти Case IH 2366 (02-28) - GASKET KIT - VALVE GRIND (01) - ENGINE

A77842

GASKET KIT

Kit, Includes: Ref. 1 - 19, No Longer Available, Order A78042

1шт.

A77976

GASKET KIT

Includes: Ref. 1, 2, 3A - 6, 8 - 19, Serial Range: -JJC0255699

1шт.

A78042

KIT

Valve Grind, Inc. 1, 2, 3A, 4, 6, 8 - 20, Start Serial: JJC0255700

1шт.

1

J914310

GASKET,0.8mm Thk

Thermostat Housing

1шт.

2

J918779

GASKET,1.19mm Thk

Water Outlet

1шт.

3

J915707

SEAL

6шт.

3a

J927642

SEAL

Valve Stem, Exhaust

6шт.

4

J911941

GASKET

, Serial Range: -JJC0255699

1шт.

4

J755843

GASKET,0.5mm Thk

Turbo Mount, Start Serial: JJC0255700

1шт.

5

J932063

MANIFOLD GASKET,1.78mm Thk

Exhaust Manifold

1шт.

6

J936993

MANIFOLD GASKET,0.76mm Thk

Intake Manifold

1шт.

7

J931350

GASKET

Not Used in This Application

1шт.

8

J937706

GASKET,0.79mm Thk

Oil Drain, Replaces: J819378 & J942725

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

Valve Cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Valve Cover Bolts

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Injector

6шт.

12

J903380

SEAL

Banjo Connector

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

14

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

1.5 mm

6шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2.5 mm, Injector Tip, Start Serial: JJC0255700

6шт.

14a

J906659

SEAL

7 mm, Used With A77976

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water Filter Shut-off

1шт.

16

J930827

HOSE,51.00 mm

Not Used in This Application

1шт.

17

J919677

TUBE

1шт.

18

J914708

LOCKING PLATE

Exhaust Manifold Bolts

12шт.

19

87404692

GAUGE

Cylinder Head Bolt Length, Replaces J823921

1шт.

20

J929012

GASKET,0.5mm Thk

Exhaust Manifold, Not Illustrated

6шт.
