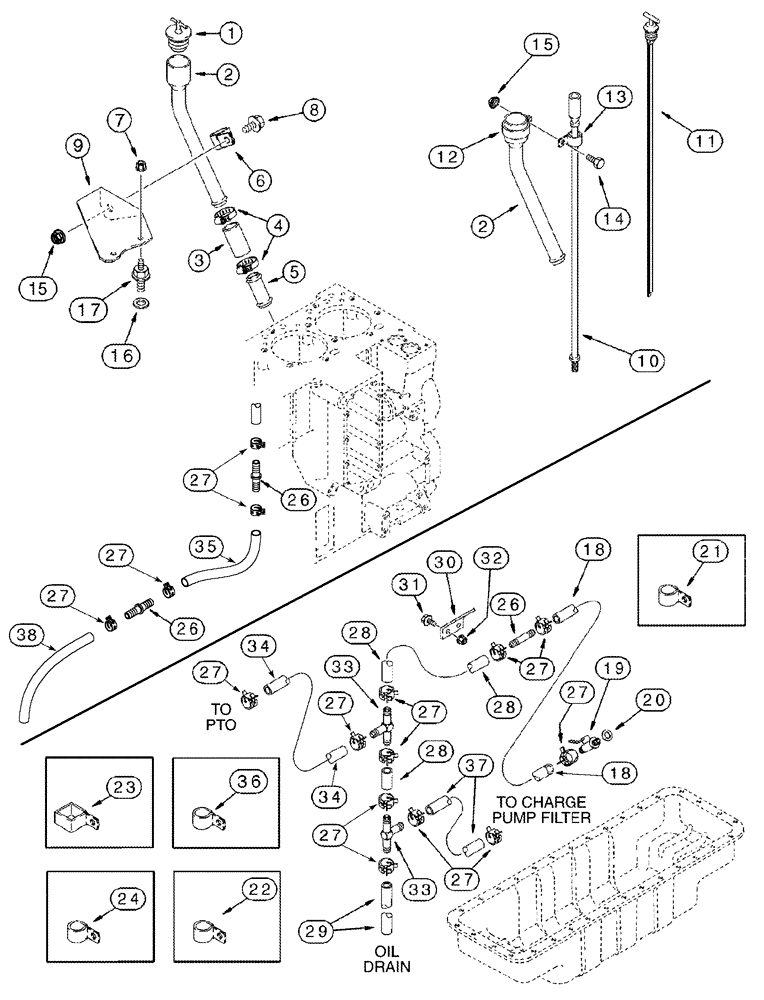

Запчасти Case IH 2366 (02-24[01]) - OIL SYSTEM, ENGINE - OIL FILL TUBE AND DIPSTICK - OIL DRAIN SYSTEM - BSN JJC0256400 (01) - ENGINE

1

A77424

FILLER CAP

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

1шт.

3

A77661

HOSE

64 mm (2-5/8 in.)

1шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

1шт.

6

J914022

CLAMP

1шт.

7

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

M6, Replaces 825-2406

2шт.

8

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Replaces 613-8020

1шт.

9

J914020

BRACKET

1шт.

10

J931265

TUBE,9.52 mm ID x 9.8 mm OD x 809 mm L

, Serial Range: -JJC0255699

1шт.

10

86993181

TUBE,9.52 mm ID x 809 mm L

, Serial Range: JJC0255700-JJC0256341

1шт.

11

J931266

DIPSTICK

, Serial Range: -JJC0255699

1шт.

11

86993180

DIPSTICK

, Serial Range: JJC0255700-JJC0256341

1шт.

12

118788A1

CLAMP

1шт.

13

A77508

CLAMP

7/16" ID

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

16

J918189

SEALING WASHER

2шт.

17

J931061

FLANGE BOLT,Hex, M6 x 1 - M8 x 1.25 x 48.50mm

2шт.

18

1329978C3

HOSE

430 mm (17"), Drain

1шт.

19

1330429C1

DRAIN VALVE

1шт.

20

J920773

SEALING WASHER

1шт.

21

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

22

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

23

1301387C2

CLIP

Square, 2 in ID

3шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.

26

1301342C1

FITTING

1шт.

27

1954736C1

HOSE CLAMP,#24

9шт.

28

293685A1

HOSE,15.75 mm ID x 650.00 mm

650 mm (25-5/8 in.), Cut From 1977295CX, Serial Range: -JJC0255699

2шт.

28

1329977C2

HOSE,15.75 mm ID x 840.00 mm

840 mm (33 in), Cut From 1977295CX, Oil Drain Upper, Oil Drain Intermediate, Serial Range: JJC0255700-JJC0256341

2шт.

29

293339A1

RADIATOR HOSE,22.35mm ID x 1100mm L

Cut From 1977295CX

1шт.

30

1977212C1

BRACKET

1шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

32

231-5146

FLANGE NUT,3/8"-16

2шт.

33

1977169C1

TEE

2шт.

34

293687A1

HOSE,15.75 mm ID x 400.00 mm

400 mm (15-3/4 in.), Cut From 1977295CX, PTO Drain, Serial Range: -JJC0255699

1шт.

34

394244A1

HOSE

270 mm (10-5/8 in), Cut From 1977295CX, Oil Drain PTO, Serial Range: JJC0255700-JJC0256341

1шт.

35

1977293C3

HOSE,15.748mm ID x 1700mm L

170 mm (6-5/8 in), Cut From 1977295CX, Engine Blowby Upper, Serial Range: JJC0255700-JJC0256341

1шт.

36

97249C1

CLIP

1шт.

37

1546368C2

HOSE

1000 mm, Cut From 1977295CX, Serial Range: -JJC0255699

1шт.

37

129097A1

HOSE

1270 mm (50 in), Cut From 1977295CX, Engine Blowby Lower, Serial Range: JJC0255700-JJC0256341

1шт.
