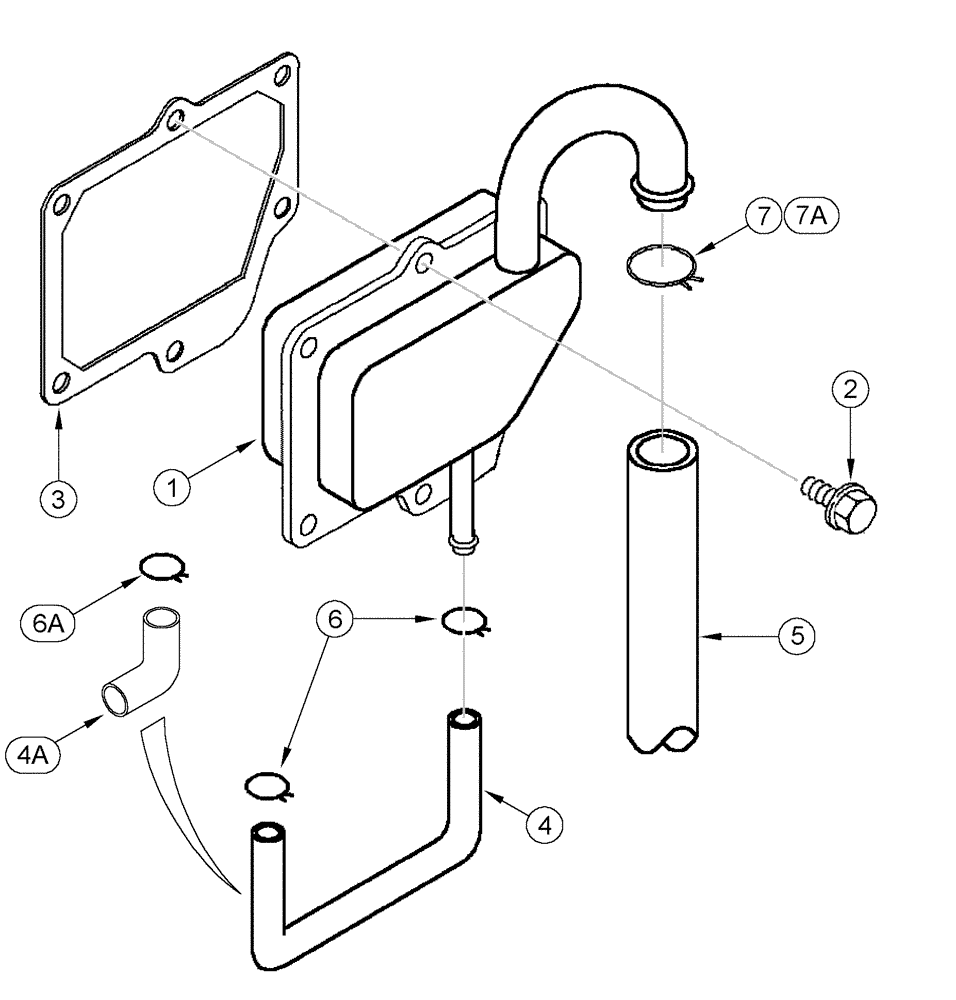

Запчасти Case IH 2366 (02-23[03]) - CRANKCASE BREATHER - BTW JJC0255700 & JJC02560341 (01) - ENGINE

1

J937652

BREATHER

to Eng. 46325

1шт.

1

87437062

BREATHER

Eng., Start Serial: 46325444

1шт.

2

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

, Serial Range: -JJC0255699

6шт.

2

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9, Serial Range: JJC0255700-JJC0256341

6шт.

3

87436828

GASKET

Replaces J944683

1шт.

4

J948068

HOSE,66.50 mm, SAE 30R7

to Eng. 46325443

1шт.

4a

87437060

HOSE

Eng., Start Serial: 46325444

1шт.

5

J944714

TUBE,320.00 mm

1шт.

6

214-1318

HOSE CLAMP,#18, 1 1/8", Spring

to Eng. 46325443

1шт.

6

214-1315

HOSE CLAMP,#15, 15/16", Spring

Eng., Start Serial: 46325444

1шт.

7

214-1310

HOSE CLAMP,#10, 5/8", Spring

to Eng. 46325443

2шт.

7a

214-1314

HOSE CLAMP,#14, 7/8", Spring

Eng., Start Serial: 46325444

1шт.
