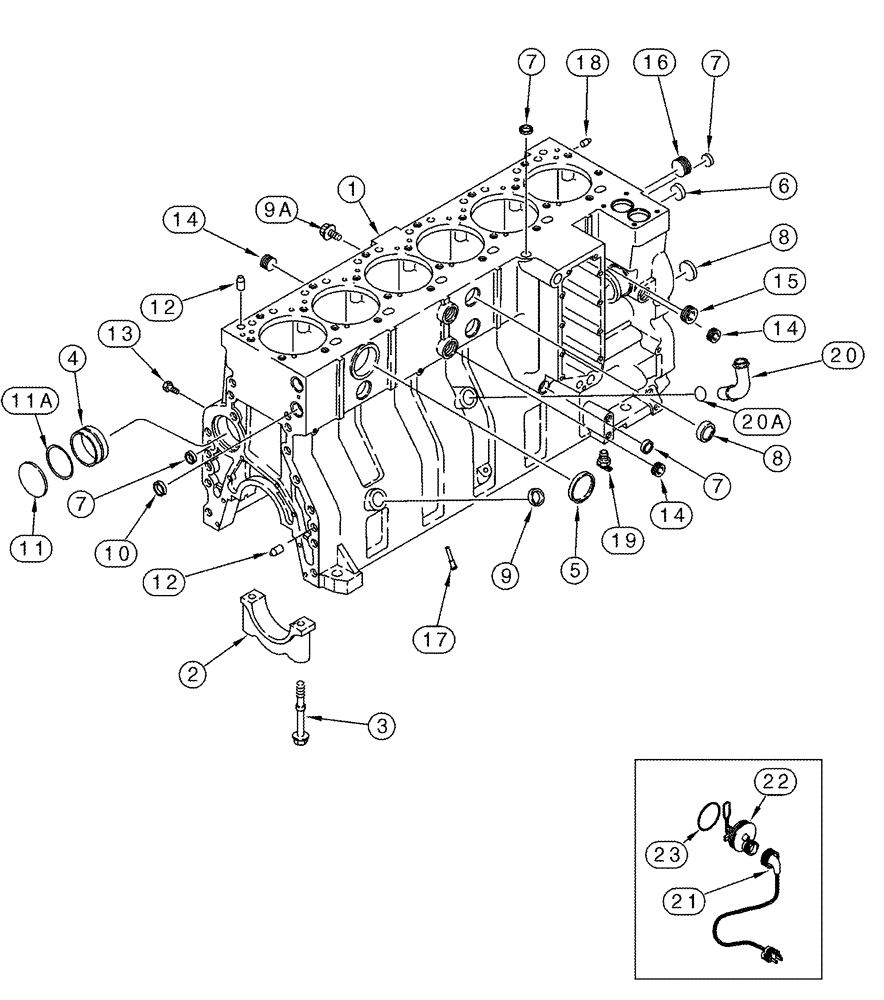

Запчасти Case IH 2366 (02-23[01]) - CYLINDER BLOCK - ENGINE BLOCK HEATERS - REPAIR KIT - BSN JJC0255700 (01) - ENGINE

199949A1R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

199949A1C

CORE-BASIC ENGINE

Return Number

1шт.

1

J934900

SHORT ENGINE

Stripped, Inc. 2 - 20, Also Order A77716

1шт.

1

JR934600

ENGINE, EXCHANGE

Short, Remanufactured

1шт.

1

JC934600

CORE-ENGINE

Return Number

1шт.

2

J917313

BEARING CAP

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J901685

BUSHING

No Longer Used, Order J945329

7шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Replaces J901685, J934199

7шт.

5

A77782

PLUG

58 mm

1шт.

6

A77586

PLUG

28.9 mm

1шт.

7

A77506

PLUG

21 mm

4шт.

8

J905401

PLUG

35 mm

4шт.

9

A77530

PLUG

Not Used

2шт.

9a

J929561

FLANGE BOLT,Hex, M10 x 1.5 x 16mm

Not Used

1шт.

10

J920706

PLUG

Not Used

1шт.

11

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

4шт.

13

J906619

PLUG,1/8" - 27

1/8 PT

6шт.

14

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

5шт.

15

A77505

PLUG

3/4 PT

2шт.

16

A77533

PLUG

1 PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

19

217-103

COCK, DRAIN

1/4" PT

1шт.

20

J931973

TUBE,0.875" OD

Replaces J903744, Not Used in This Application

1шт.

20a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Not Used in This Application

1шт.

196804A1

KIT

Engine Block Heater, Inc. 21 - 23

1шт.

21

196466A1

ELECTRIC CABLE

1829 mm (72 in.)

1шт.

22

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

23

J910517

O-RING

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Not Illustrated

1шт.

A77885

PACKAGE, REPAIR

Engine Block, Not Illustrated, Inc. 25 - 32, Serial Range: -45636465

1шт.

A77913

PACKAGE, REPAIR

Engine Block, Not Illustrated, Inc. 25 - 32, Start Serial: 45636466

1шт.

25

A77854

PACKAGE, REPAIR

Piston and Sleeve, Standard, See Figure 02-27, Serial Range: -45636466

6шт.

25

A77912

PACKAGE, REPAIR

Piston, See Figure 02-27, Start Serial: 45636466

6шт.

26

A77563

BEARING SET

See Figure 02-27

6шт.

27

J901597

PIN

See Figure 02-27

6шт.

28

J945930

BEARING SET

See Figure 02-25

6шт.

29

J945929

THRUST BEARING

See Figure 02-25

1шт.

30

A77976

GASKET KIT

Valve Grind

1шт.

31

J935585

GASKET

See Figure 02-19

1шт.

32

A77679

GASKET KIT

See Figure 02-18

1шт.
