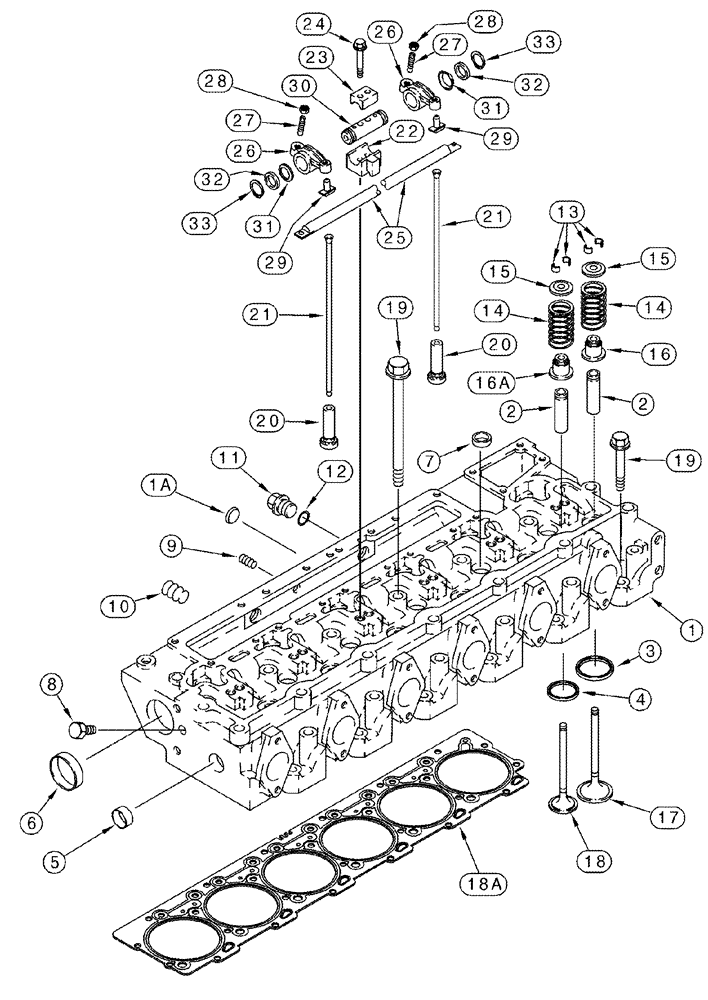

Запчасти Case IH 2366 (02-20) - CYLINDER HEAD - VALVE MECHANISM (01) - ENGINE

JR936280

REMAN-CYLINDER HEAD

Remanufactured, Replaces JR925642, Serial Range: -JJC0255699

1шт.

JC936280

REMAN-CYLINDER HEAD

Core, Replaces JC916464, Serial Range: -JJC0255699

1шт.

J936280

HEAD

Inc. 1 - 18, Replaces : J925642, Serial Range: -JJC0255699

1шт.

84262945R

REMAN-CYLINDER HEAD

2366 Serial Range:- JJC0255699 (1/98-8/04), Reman For New P/N J936280

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

86990822

HEAD

Assy With Valves, Inc. 1 - 18, Start Serial: JJC0255700

1шт.

84262945R

REMAN-CYLINDER HEAD

2366 Start Serial: JJC0255700, Reman For New P/N 86990822

1шт.

84262945C

CORE-CYLINDER HEAD

Return Number

1шт.

86990827

REMAN-CYLINDER HEAD

Reman For New PN 86990822, Start Serial: JJC0255700

1шт.

86990828

CORE-CYLINDER HEAD

Return Number, Start Serial: JJC0255700

1шт.

1

J936180

HEAD ASSY.

Stripped, Inc. 1A - 7, Replaces J920031

1шт.

1a

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

3

J924582

INSERT

6шт.

3

J925468

SEAT, VALVE

0.25 mm, Oversize, Service Repair Only

6шт.

3

J925470

SEAT, VALVE

0.50 mm, Oversize, Service Repair Only

6шт.

4

J929005

INSERT

6шт.

4

J929006

INSERT

0.25 mm, Oversize, Service Repair Only

6шт.

4

J929007

INSERT

0.50 mm, Oversize, Service Repair Only

6шт.

5

J920443

PLUG

30 mm

1шт.

6

A77782

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

217-426

PLUG,Hex Soc, 1/16" - 27 NPTF

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces A77428

1шт.

10

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

2шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J991085

VALVE SPRING

12шт.

15

J912976

RETAINER

12шт.

16

J927642

SEAL

Replaces J915707

6шт.

16a

J927642

SEAL

Replaces J919038

6шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

18a

REF

INSTRUCTION

GASKET Cyl. Head, See Figure 02-19

1шт.

19

J917728

BOLT

M14 x 160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

J934921

ROCKER ARM

Assy, Incl. 22 - 33

6шт.

22

J905870

SUPPORT

1шт.

23

J901693

CLAMP

1шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

2шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27 - 29

2шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

Replaces J900706

1шт.

28

A77902

NUT

3/8 - 24 NF, Replaces 425-116

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

1шт.

31

J906100

SPRING CUP

2шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

2шт.

33

100-1187

SNAP RING,#87, Ext

2шт.
