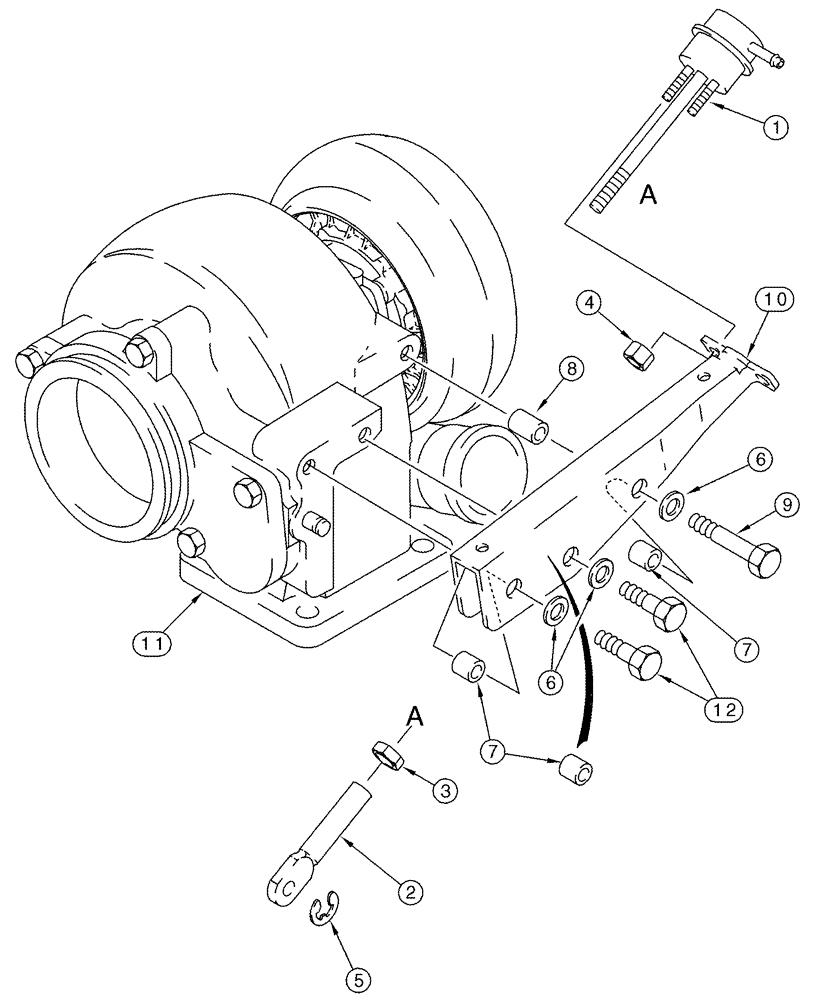

Запчасти Case IH 2366 (02-16) - WASTEGATE ACTUATOR (01) - ENGINE

REF

INSTRUCTION

TURBOCHARGER, Inc. 1 - 12, Also See Figure(s) 02-14, 02-15, Inc. 2 - 22, Replaces: J537127

1шт.

1

J531892

ACTUATOR

, Serial Range: -JJC0255699

1шт.

1

J531892C

CORE-HYD CYLINDER

Return Number, ACTUATOR

1шт.

1

J593678

ACTUATOR

, Start Serial: JJC0255700

1шт.

1

J593678R

REMAN-SOLENOID

Cummins - ACTUATOR - Wastegate

1шт.

1

J593678C

CORE-SOLENOID

Return Number, ACTUATOR

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

, Serial Range: -JJC0255699

2шт.

4

J592050

NUT

, Start Serial: JJC0255700

2шт.

5

J528221

CIRCLIP

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSY., Inc. 6 - 12

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

19 mm

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

, Serial Range: -JJC0255699

1шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

, Start Serial: JJC0255700

1шт.

10

J533328

SUPPORT

, Serial Range: -JJC0255699

1шт.

10

J532671

BRACKET

, Start Serial: JJC0255700

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
