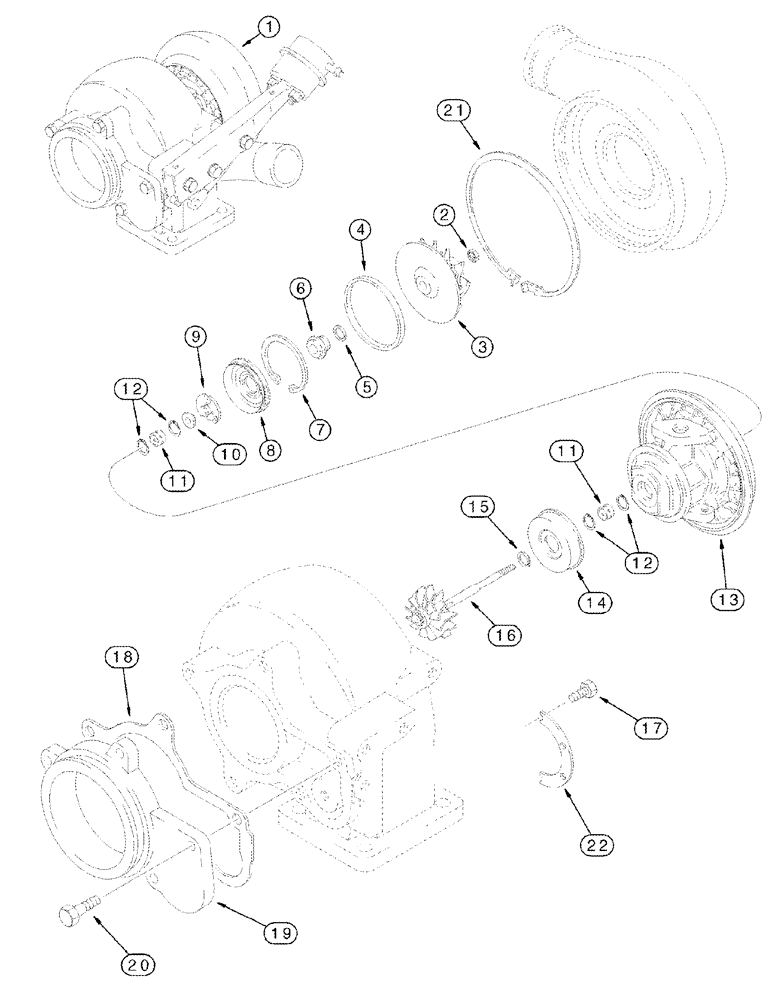

Запчасти Case IH 2366 (02-15[02]) - TURBOCHARGER ASSY - ASN JJC0255700 (01) - ENGINE

86993017

TURBOCHARGER

Used w/ Eng. P/N 401359A3, Tier 2

1шт.

86993017R

REMAN-TURBOCHARGER

2366 USED W/ ENG. P/N 401359A3, TIER 2 (1/98-8/04)

1шт.

86993017C

CORE-TURBOCHARGER

RETURN NUMBER

1шт.

1

NSS

NOT SOLD SEPARAT

Turbocharger, Inc. 2 - 22; Also See Figure 02-16, Inc. 1 -12

1шт.

J538379

HOUSING

Includes 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor and Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

J503533

BOLT

M8 x 20

5шт.

21

J533163

SNAP RING

1шт.

22

J597308

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
