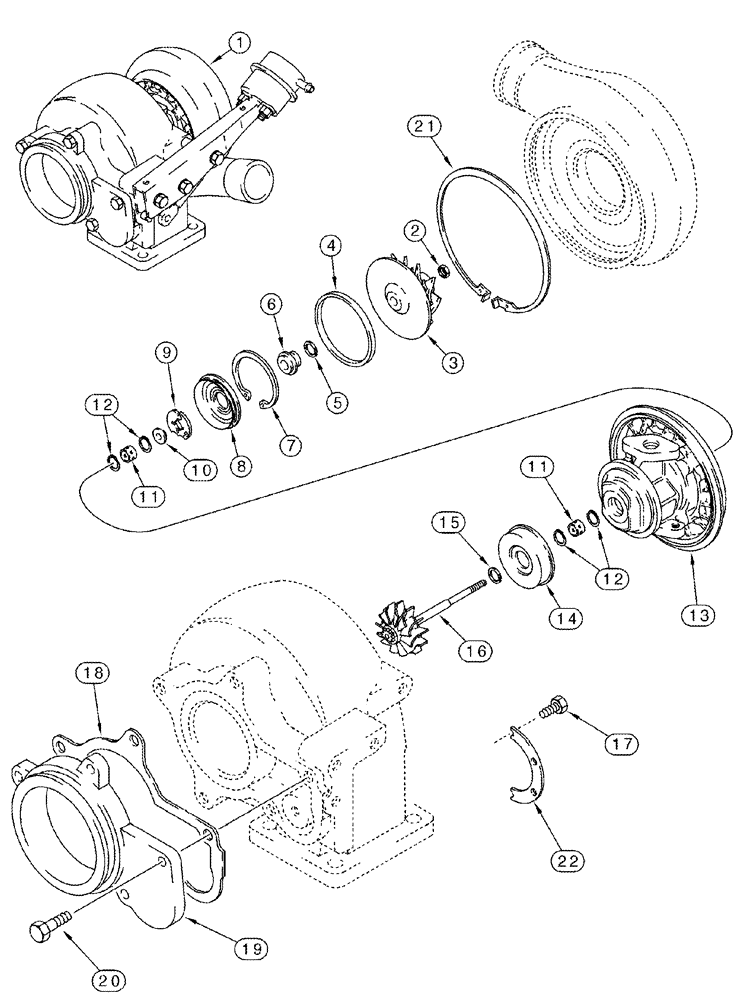

Запчасти Case IH 2366 (02-15[01]) - TURBOCHARGER ASSY - BSN JJC0255700 (01) - ENGINE

JR802810

REMAN-TURBOCHARGER

Remanufactured, Replaces: JR537127

1шт.

JC537127

CORE-TURBOCHARGER

Return Number

1шт.

1

J802810

TURBOCHARGER

1шт.

J535324

CARTRIDGE

Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

RING

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR and SHAFT

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Inc. 2, 4, 5, 7, 8, 9, 11, 12, 15, & 17

1шт.
