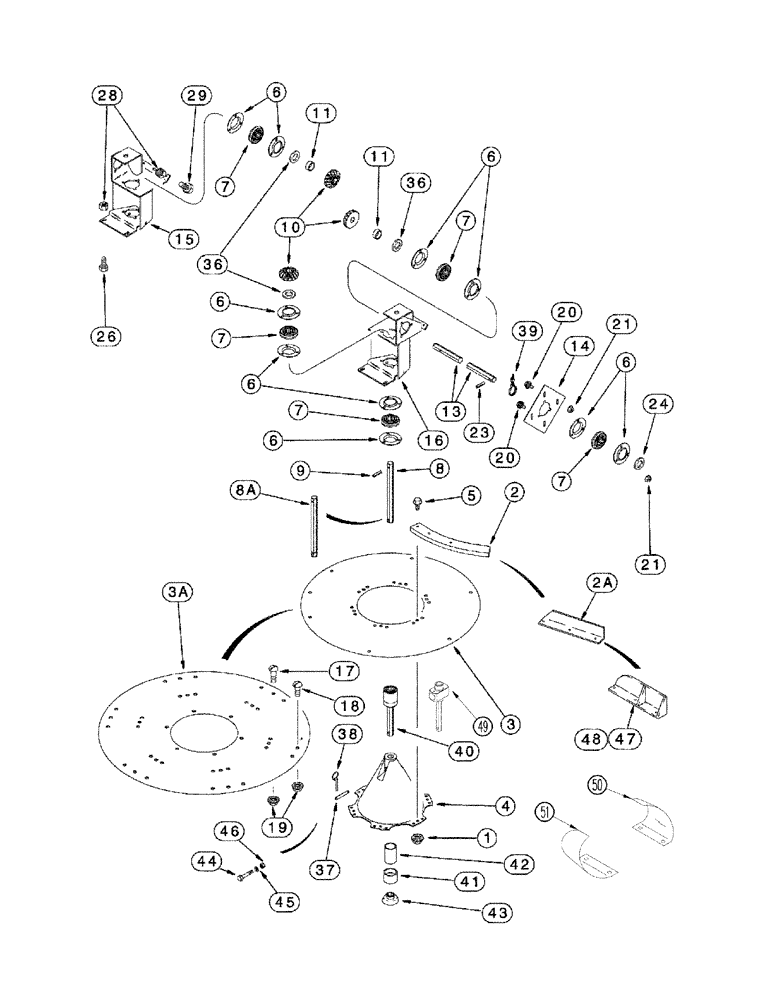

Запчасти Case IH 2366 (09F-01) - STRAW SPREADER (19) - STRAW SPREADER & CHOPPER

1

231-5315

FLANGE NUT,Flg, 5/16"-18

Used with 2, 3

24шт.

2

194198C2

SKID/SHOE

12шт.

With Straw Spreader

1шт.

2a

111179A2

BAT

12шт.

With Straw and Chaff Spreader

1шт.

3

192252C1

RETAINER

2шт.

With Straw Spreader

1шт.

3a

140190A1

DISC

2шт.

With Straw and Chaff Spreader

1шт.

4

188218C6

CONE,Spreader Support

2шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4, Used With 2, 3

12шт.

5

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16 x 1-1/2, Used With 2, 3

12шт.

6

462360R1

FLANGED BEARING

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

7шт.

8

128440A1

SHAFT

12 in.

2шт.

With Straw Spreader

1шт.

8a

109485A1

SHAFT

12 in.

2шт.

With Straw and Chaff Spreader

1шт.

9

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

10

194194C1

GEAR

14T

4шт.

11

152261C1

SPACER,1 1/4" Tube x 1 7/8"

1-1/4 x 5/8

2шт.

13

192242C4

SHAFT

, Serial Range: -JJC0254999

1шт.

13

427271A1

SHAFT

1193 mm (47 in.), Start Serial: JJC0255000

1шт.

14

186506C1

SUPPORT

1шт.

15

109487A1

SUPPORT

Left Hand, Serial Range: -JJC0253999

1шт.

15

109487A2

SUPPORT

Left Hand, Start Serial: JJC0254000

1шт.

16

109488A1

SUPPORT

Right Hand, Serial Range: -JJC0253999

1шт.

16

109488A2

SUPPORT

Right Hand, Start Serial: JJC0254000

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1, Used With 2A, 3A

12шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Used with 2A, 3A

12шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used with 2A, 3A

24шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

25шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

25шт.

23

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

3/8" x 1 1/2", Slotted

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

1-1/32 x 1-1/2 x 1/32

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

29

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1-1/32 x 1-1/2 x 1/16

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

2шт.

38

A33497

LINCH PIN,4.76mm OD Pin

4шт.

With Straw Spreader

1шт.

39

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

With Straw Spreader

1шт.

40

108000A1

COUPLING

, Serial Range: -JJC0254999

2шт.

With Straw and Chaff Spreader

1шт.

41

140430A1

COUPLING

2шт.

With Straw and Chaff Spreader

1шт.

42

140431A1

TUBE,48.26 mm OD, 75 mm Length

75 mm (3 in.), Serial Range: -JJC0254999

2шт.

With Straw and Chaff Spreader

1шт.

42

432330A1

TUBE

110 mm (4.33 in), Start Serial: JJC0255000

2шт.

With Straw and Chaff Spreader

1шт.

43

140432A1

BOOT

2шт.

With Straw and Chaff Spreader

1шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

46

231-1446

NUT,3/8" - 16, Gr 5

2шт.

47

323745A1

BAT

Flat, Right Hand, Tall, Serial Range: -JJC0254999

3шт.

With Straw and Chaff Spreader

1шт.

48

323746A1

BAT

Flat, Left Hand, Tall, Serial Range: -JJC0254999

3шт.

With Straw Spreader

1шт.

49

429194A1

COUPLING

, Start Serial: JJC0255000

2шт.

With Straw and Chaff Spreader

1шт.

50

403933A1

BAT

Curved, Right Hand, Start Serial: JJC0255000

3шт.

With Straw and Chaff Spreader

1шт.

51

403934A1

BAT

Curved, Left Hand, Start Serial: JJC0255000

3шт.

With Straw Spreader

1шт.
