Запчасти Case IH 2366 (02-12[02]) - FRONT GEAR COVER - ASN JJC0255700 (01) - ENGINE

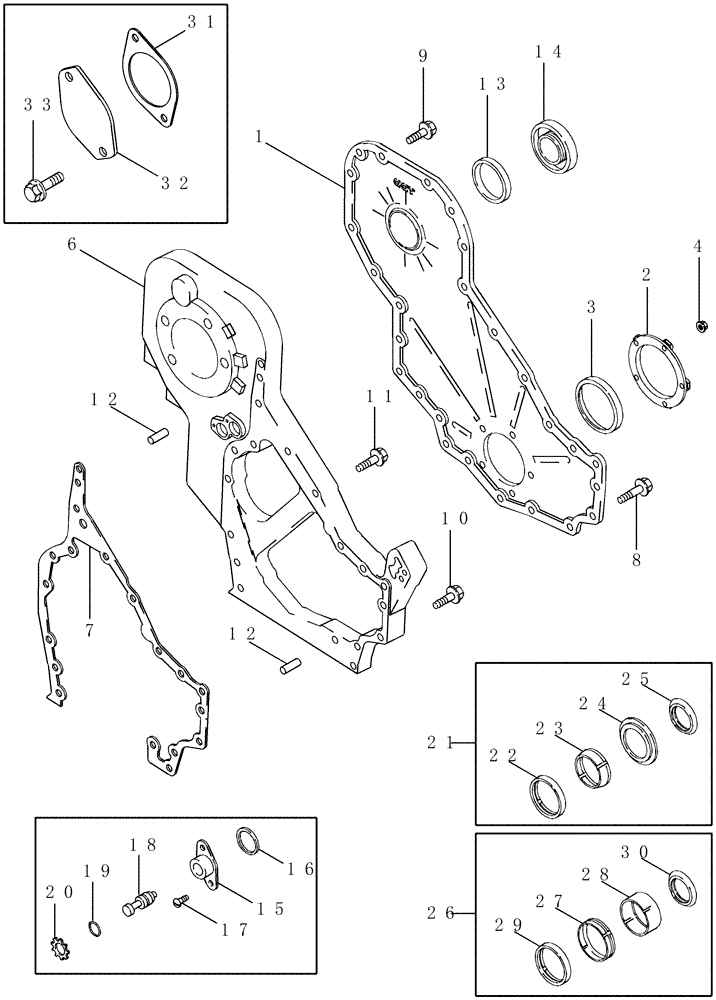

Схема запчастей Case IH 2366 - (02-12[02]) - FRONT GEAR COVER - ASN JJC0255700 (01) - ENGINE
10
4
12
13
27
21
14
19
8
12
11
25
16
15
22
33
29
28
23
2
1
9
32
7
3
20
26
31
6
17
18
24
30

Артикул

Название

Примечание

Количество

1

J948045

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Order A77790 or A77808

1шт.

4

87493304

FLANGE NUT

M6

5шт.

5

J823494

SEALANT

Silicone, 3 oz, Not Illustrated

1шт.

6

J938085

COVER

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

14шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

2шт.

13

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

14

J903463

PLUG,M63 x 5

1шт.

15

J919683

HOUSING

Timing Pin

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

Timing

1шт.

19

J913994

O-RING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.

21

A77790

SEAL KIT

Crankshaft, Front, Inc. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

NSS

NOT SOLD SEPARAT

Tool

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

26

A77808

SERVICE KIT

Crannkshaft, Front, Inc. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Tool

1шт.

29

NSS

NOT SOLD SEPARAT

Seal, Oil, Oversized

1шт.

30

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

31

J938655

GASKET,1.27mm Thk

1шт.

32

J914868

COVER

Accessory Drive

1шт.

33

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

Выбрано товаров: 32
