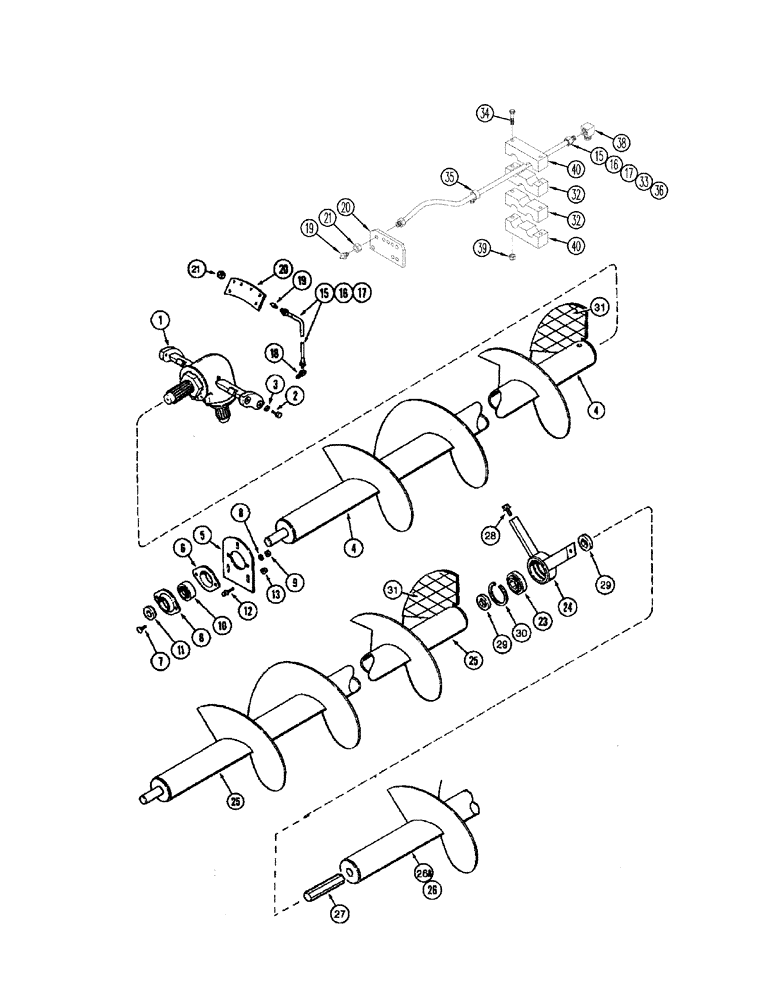

Запчасти Case IH 2366 (09E-11[02]) - UNLOADER - AUGER, UPPER, ASN JJC0255000 (17) - GRAIN TANK & UNLOADER

1

1347351C1

HOUSING

1шт.

1347351C2R

REMAN-GEARBOX

2366 ASN JJC0255000 (1/98-8/04), Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

183927A1

AUGER

One Piece, 136 in.

1шт.

5

182838C1

SUPPORT

1шт.

6

50591

FLANGE,52mm

2шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

1шт.

11

564853R11

COLLAR

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

15

1339004C1

HOSE,3.17mm ID x 1778mm L

1778 mm (70 in.)

2шт.

16

430376A1

HOSE

1935 mm (76 in.)

1шт.

17

428284A1

HOSE

1720 mm (68 in.)

1шт.

18

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4-28 tpr x 13/16

4шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

20

418495A1

BRACKET

1шт.

21

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

4шт.

23

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

1шт.

24

1317859C1

SUPPORT

1шт.

25

199018A2

AUGER

Rear Split, 172 in., Start Serial: JJC0252950

1шт.

25

199023A2

AUGER

Rear Split, 208 in., Start Serial: JJC0252950

1шт.

26

198987A2

AUGER

Front Split, 172 in., Start Serial: JJC0252950

1шт.

26

198987A2

AUGER

Front Split, 208 in., Serial Range: JJC0252950-JJC0256399

1шт.

26a

282176A2

AUGER

Front Split, 208 in., Serial Range: JJC0252950-JJC0256399

1шт.

Extended Wear Rice Combines

1шт.

26a

282176A2

AUGER

Front Split, 208 in. Standard Equipment, Start Serial: JJC0256400

1шт.

27

220040A2

SHAFT

152 mm (6 in.)

1шт.

28

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

29

1277949C1

SPACER

4шт.

30

360936R1

RING

1шт.

31

182587A1

KIT

Reinforcements

1шт.

32

419590A1

CLAMP

2шт.

33

428294A1

HOSE

Grease, 1925 mm (76 in.)

1шт.

34

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4 x 3

2шт.

35

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

36

1345098C1

HOSE

Grease, 1524 mm (60 in.)

1шт.

37

F53473

LOCK NUT,1/8-27 NPSM

1/8

1шт.

38

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

1/4 x 1/8

3шт.

39

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(5)

2шт.

40

429629A1

CLAMP

2шт.
